SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1IGNITION & COMBINATION SWITCH0008 1IGNITION & COMBINATION SWITCH0009 1DOOR,ROOF,FLOOR & BACK DOOR

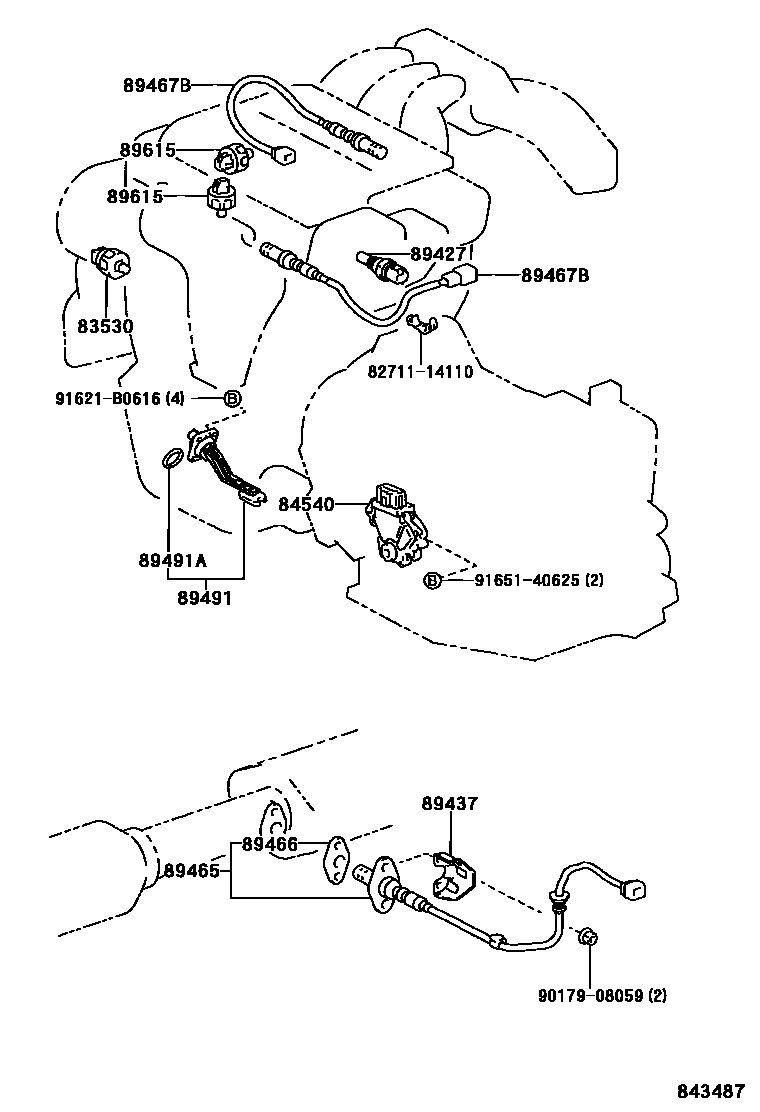

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iMCU15200205

(L)

main83530-28020iMCU15200007

(J),DENSO

main83530-60020iMCU15200007

(J),YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-32110iMCU15200007

89427SWITCH, TEMPERATURE DETECT

main89428-41010iMCU15200007

89437COVER, SENSOR

main89437-48010iMCU15200007

89465SENSOR, OXYGEN

main89465-49075iMCU15200007

89466GASKET, OXYGEN SENSOR

main89466-20020iMCU15200007

89467BSENSOR, AIR FUEL RATIO

main89467-48011iMCU15200007

89491SENSOR, ENGINE OIL LEVEL

main89491-33030iMCU15200007

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iMCU15200007

89615SENSOR, KNOCK CONTROL

main89615-12090iMCU15200007

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9017908059

main90179-08059

91621B0616

main91621-B0616

9165140625

main91651-40625

14 parts on this diagram · 9 diagrams in section
