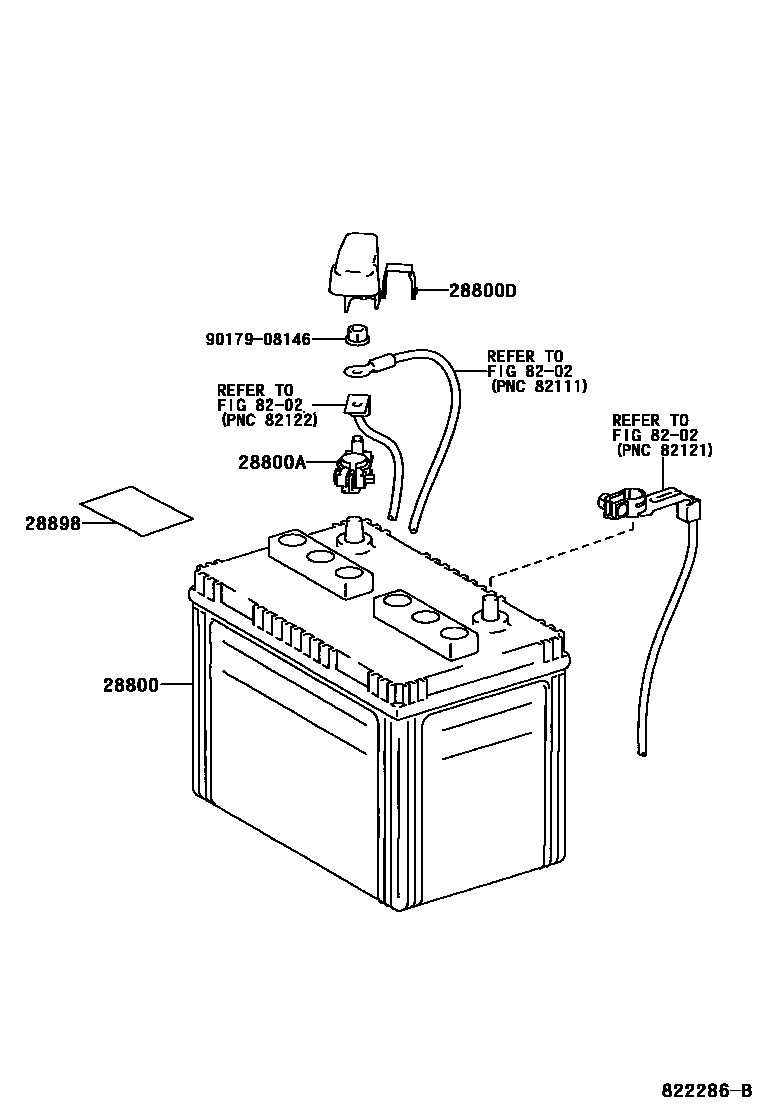

BATTERY & BATTERY CABLE

28800BATTERY

main28800-64132i1MZFE..MCU15200007

80D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05058i1MZFE..MCU15200007

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20350i1MZFE..MCU15200007

28898PLATE, BATTERY

main28898-46010i1MZFE..MCU15..LHD200007

NORWAY SPEC

main28898-46020i1MZFE..MCU15200007

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section
