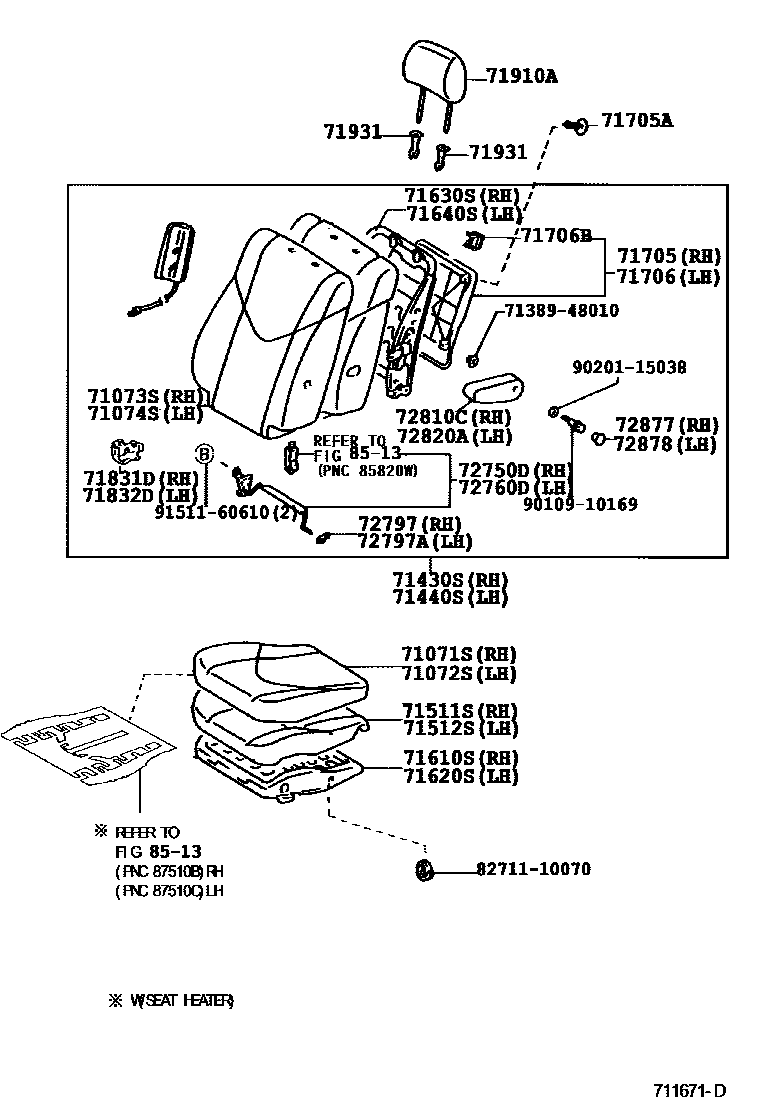

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-48080-C0iMCU15200007

BLACK,TRIM2#

main71071-48110-A1iMCU15200007

LEATHER,IVORY,TRIM0#

main71071-48110-C2iMCU15200007

LEATHER,BLACK,TRIM2#

main71071-48120-A1iMCU15200007

LEATHER & W(SEAT HEATER),IVORY,TRIM0#

main71071-48120-C1iMCU15200007

LEATHER & W(SEAT HEATER),BLACK,TRIM2#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-48110-A1iMCU15200007

LEATHER,IVORY,TRIM0#

main71072-48110-C1iMCU15200007

LEATHER,BLACK,TRIM2#

main71072-48120-A1iMCU15200007

LEATHER & W(SEAT HEATER),IVORY,TRIM0#

main71072-48120-C1iMCU15200007

LEATHER & W(SEAT HEATER),BLACK,TRIM2#

main71072-48140-C0iMCU15200007

BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-48090-C0iMCU15200007

BLACK,TRIM2#

main71073-48170-A1iMCU15200007

LEATHER,IVORY,TRIM0#

main71073-48170-C1iMCU15200007

LEATHER,BLACK,TRIM2#

main71073-48180-A1iMCU15200007

LEATHER & W(SEAT HEATER),IVORY,TRIM0#

main71073-48180-C1iMCU15200007

LEATHER & W(SEAT HEATER),BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-48090-C0iMCU15200007

BLACK,TRIM2#

main71074-48170-A1iMCU15200007

LEATHER,IVORY,TRIM0#

main71074-48170-C1iMCU15200007

LEATHER,BLACK,TRIM2#

main71074-48180-A1iMCU15200007

LEATHER & W(SEAT HEATER),IVORY,TRIM0#

main71074-48180-C1iMCU15200007

LEATHER & W(SEAT HEATER),BLACK,TRIM2#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-48300-C0iMCU15200007

BLACK,TRIM2#

main71430-48320-A1iMCU15200007

LEATHER & W(SEAT HEATER),IVORY,TRIM0#

main71430-48320-C1iMCU15200007

LEATHER & W(SEAT HEATER),BLACK,TRIM2#

main71430-48330-A1iMCU15200007

LEATHER,IVORY,TRIM0#

main71430-48330-C1iMCU15200007

LEATHER,BLACK,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-48270-C0iMCU15..LHD200007

BLACK,TRIM2#

main71440-48280-C0iMCU15..RHD200007

BLACK,TRIM2#

main71440-48290-A1iMCU15200007

LEATHER,IVORY,TRIM0#

main71440-48290-C1iMCU15200007

LEATHER,BLACK,TRIM2#

main71440-48300-A1iMCU15200007

LEATHER & W(SEAT HEATER),IVORY,TRIM0#

main71440-48300-C1iMCU15200007

LEATHER & W(SEAT HEATER),BLACK,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-48010iMCU15..RHD200007

main71511-48020iMCU15..LHD200007

W(WARNING SENSOR)

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-48010iMCU15..LHD200007

main71512-48020iMCU15..RHD200007

W(WARNING SENSOR)

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-48020iMCU15200007

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-48020iMCU15200007

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-48060iMCU15200007

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-48050iMCU15200007

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-48020-A3iMCU15200007

LEATHER,IVORY,TRIM0#

main71705-48020-C2iMCU15200007

LEATHER,BLACK,TRIM2#

main71705-48030-C0iMCU15200007

BLACK,TRIM2#

71705ACLIP(FOR FRONT SEATBACK BOARD)

main90467-06016-C0×6iMCU15200007

BLACK,TRIM0#,2#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-48020-A3iMCU15200007

LEATHER,IVORY,TRIM0#

main71705-48020-C2iMCU15200007

LEATHER,BLACK,TRIM2#

main71705-48030-C0iMCU15200007

BLACK,TRIM2#

71706BCLIP, FRONT SEATBACK BOARD

main71769-60020×4iMCU15200007

71831DCOVER, FRONT SEAT HINGE, RH

main71831-48010×2iMCU15200007

71832DCOVER, FRONT SEAT HINGE, LH

main71832-48010×2iMCU15200007

71910AHEADREST ASSY, FRONT SEAT

main71910-48110-A1×2iMCU15200007

LEATHER,IVORY,TRIM0#

main71910-48110-C1×2iMCU15200007

LEATHER,BLACK,TRIM2#

main71910-48120-C0×2iMCU15200007

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-A0×2iMCU15200007

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-42020-C0×2iMCU15200007

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71931-42020-A0×2iMCU15200007

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-C0×2iMCU15200007

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30230iMCU15200007

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-30160iMCU15200007

72797SPACER, LUMBAR SUPPORT

main72797-30020iMCU15200007

72797ASPACER, LUMBAR SUPPORT

main72797-30020iMCU15200007

72810CARMREST ASSY, FRONT SEAT, CENTER

main72810-48060-A1iMCU15200007-200302

W(LEATHER SEAT) & W(SEAT HEATER),IVORY,TRIM0#

main72810-48060-C1iMCU15200007-200302

W(LEATHER SEAT) & W(SEAT HEATER),BLACK,TRIM2#

main72810-48070-C1iMCU15200007-200302

BLACK,TRIM2#

72820AARMREST ASSY, SEAT, LH

main72820-48060-A1iMCU15200007-200302

W(LEATHER SEAT) & W(SEAT HEATER),IVORY,TRIM0#

main72820-48060-C1iMCU15200007-200302

W(LEATHER SEAT) & W(SEAT HEATER),BLACK,TRIM2#

main72820-48070-C1iMCU15200007-200302

BLACK,TRIM2#

72877COVER, SEAT ARMREST, RH

main72848-48020-A0iMCU15200007

IVORY,TRIM0#

main72848-48020-C0iMCU15200007

BLACK,TRIM2#

72878COVER, SEAT ARMREST, LH

main72848-48020-A0iMCU15200007

IVORY,TRIM0#

main72848-48020-C0iMCU15200007

BLACK,TRIM2#

8513SEAT MOTOR & SEAT HEATER

→ Go to FIG 85-13

7138948010SPACER, CENTER SEAT HINGE

main71389-48010

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

9010910169

main90109-10169

9020115038

main90201-15038

9151160610

main91511-60610

34 parts on this diagram · 2 diagrams in section
