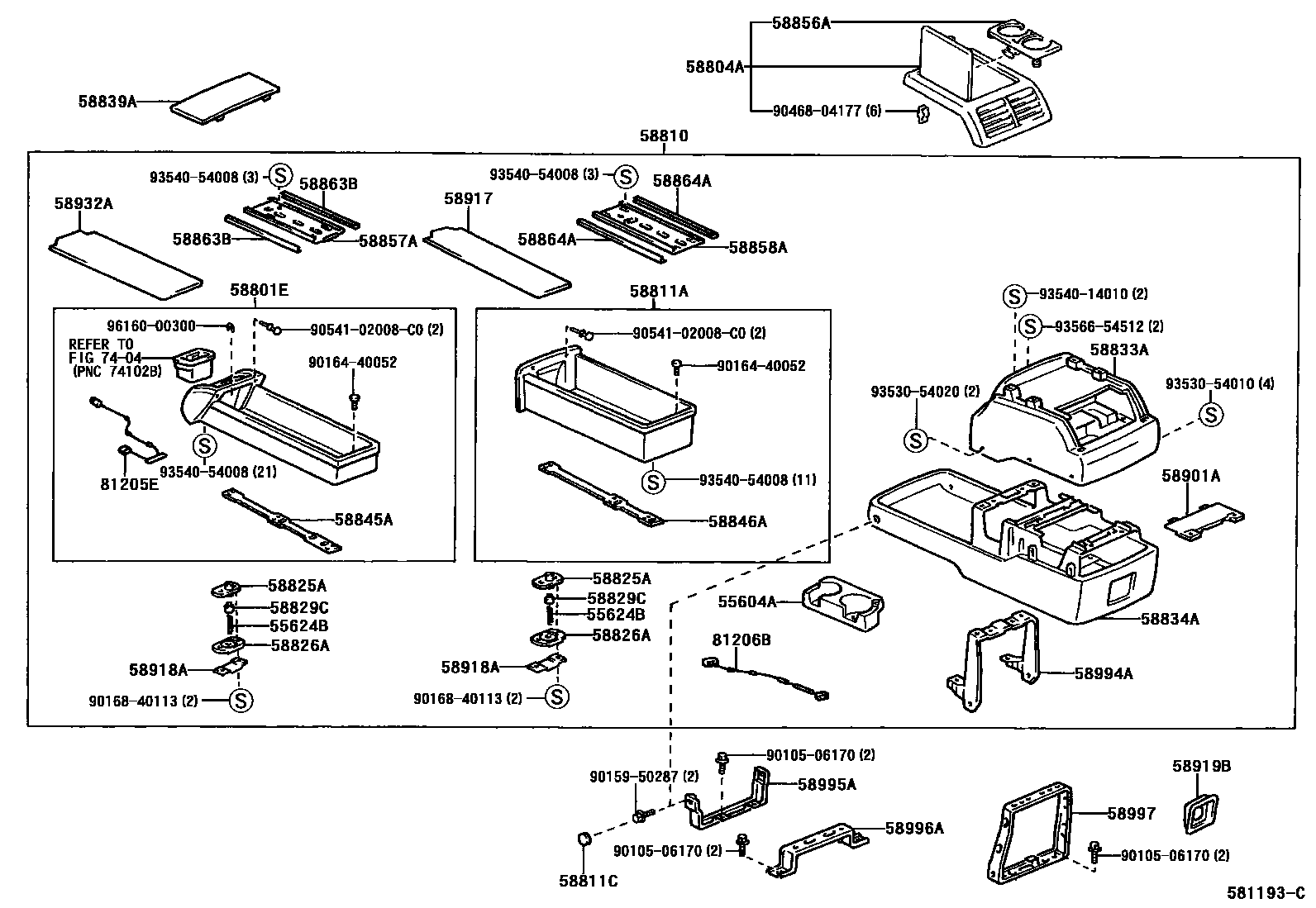

CONSOLE BOX & BRACKET
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55624BSPRING, INSTRMENT PANEL CUP HOLDER, NO.3
58801EBOX SUB-ASSY, CONSOLE, UPPER
58804APANEL SUB-ASSY, CONSOLE, UPPER
58810CONSOLE ASSY
58811ABOX, CONSOLE, FRONT
58811CCAP(FOR CONSOLE)
58825APOCKET, CONSOLE BOX
58826APOCKET, CONSOLE BOX, LOWER
58829CSTOPPER, CONSOLE BOX POCKET
58833ACOVER, CONSOLE, UPPER
58834ACOVER, CONSOLE, LOWER
58839ACOVER, CONSOLE BOX HOLE
58845AFRAME, CONSOLE, NO.1
58846AFRAME, CONSOLE, NO.2
58856AHOLDER, CONSOLE BOX
58857ABRACKET, CONSOLE SUPPORT, UPPER NO.1
58858ABRACKET, CONSOLE SUPPORT, UPPER NO.2
58901ABOX SUB-ASSY, CONSOLE, REAR
58917MAT, BOX BOTTOM, NO.2
58918ABRACKET, BOX SUPPORT
58919BPLATE, CONSOLE BOX
58932AGARNISH, REAR CONSOLE BOX
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
7404
81205ELAMP SUB-ASSY, ASH RECEPTACLE
81206BLAMP SUB-ASSY, CONSOLE BOX
9010506170
main90105-06170
9015950287
main90159-50287
9016440052
main90164-40052
9016840113
main90168-40113
9046804177
main90468-04177
9054102008C0
main90541-02008C0
9353054010
main93530-54010
9353054020
main93530-54020
9354014010
main93540-14010
9354054008
main93540-54008
9356654512
main93566-54512
9616000300
main96160-00300
44 parts on this diagram · 1 diagram in section
