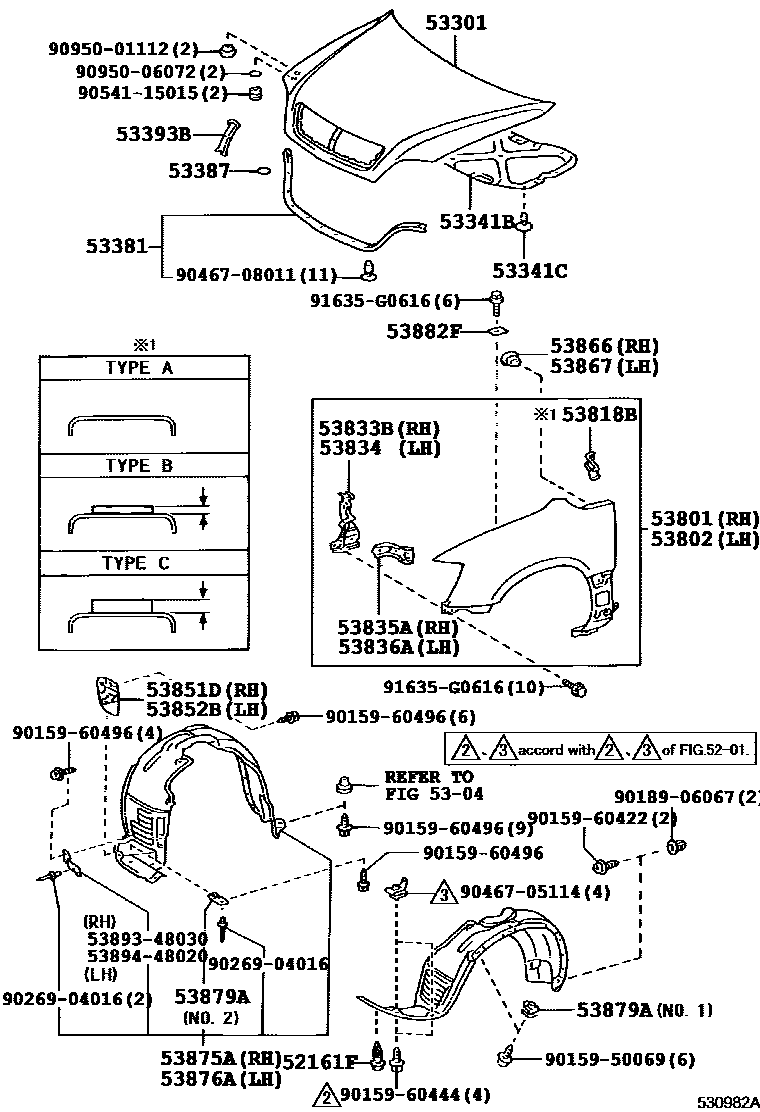

HOOD & FRONT FENDER
52161FPIECE, FRONT BUMPER
sub52161-0K040
5304
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53381SEAL, HOOD TO RADIATOR SUPPORT
53387SEAL, HOOD TO RADIATOR SUPPORT
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53818BREINFORCEMENT, FRONT FENDER, REAR
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53851DPAD, FRONT WHEEL OPENING EXTENSION, RH
53852BPAD, FRONT WHEEL OPENING EXTENSION, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882FSEAL, FRONT FENDER
5389348030MUDGUARD, REAR
main53893-48030
5389448020PLATE, REAR MUDGUARD SET RETAINER
main53894-48020
9015950069
main90159-50069
9015960422
main90159-60422
9015960444
main90159-60444
9015960496
main90159-60496
9018906067
main90189-06067
9026904016
main90269-04016
9046705114
main90467-05114
9046708011
main90467-08011
9054115015
main90541-15015
9095001112
main90950-01112
9095006072
main90950-06072
91635G0616
main91635-G0616
37 parts on this diagram · 1 diagram in section
