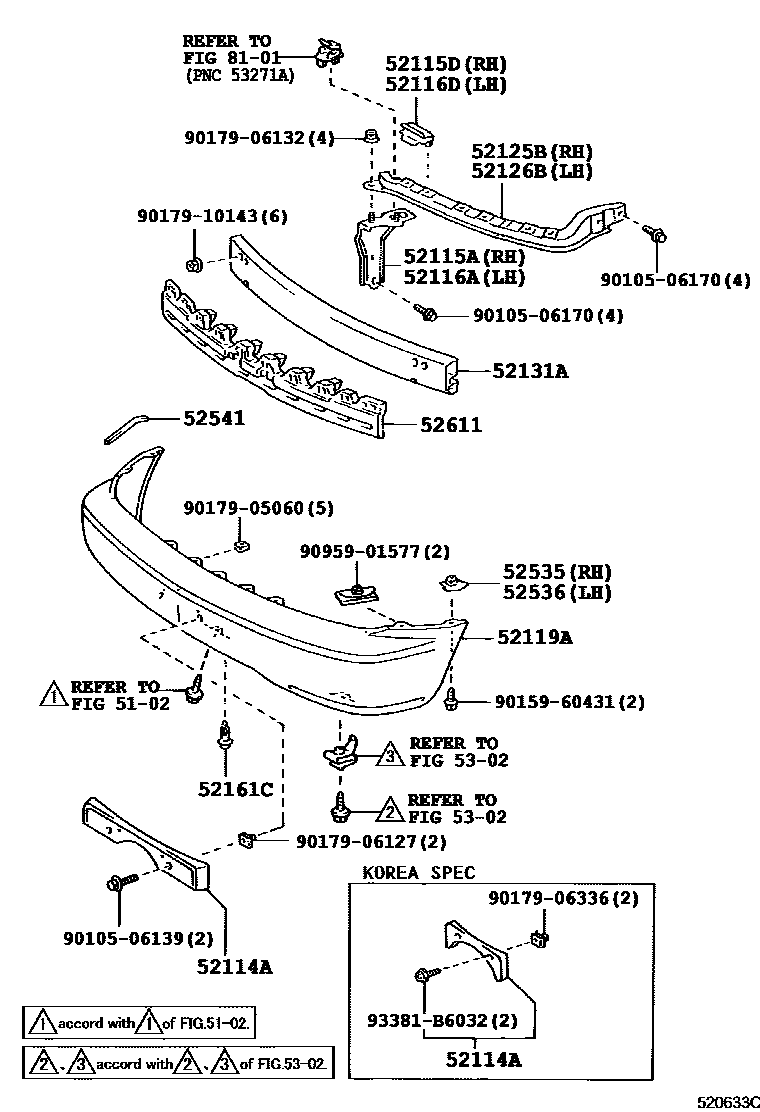

FRONT BUMPER & BUMPER STAY

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-48020iMCU15..LHD200007

KOREA SPEC

main52114-48030iMCU15200007

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-48010iMCU15200007

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

main52115-14130×2iMCU15200007

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-48010iMCU15200007

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

main52115-14130×2iMCU15200007

52119ACOVER, FRONT BUMPER

main52119-48902iMCU15200007

main52119-48903iMCU15..LHD200007

KOREA SPEC

52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH

main52125-48010iMCU15200007

52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH

main52126-48010iMCU15200007

52131AREINFORCEMENT, FRONT BUMPER

main52131-48010iMCU15200007

52161CPIECE, FRONT BUMPER

main52161-16010iMCU15200007

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30150iMCU15200007

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-30150iMCU15200007

52541PROTECTOR, FRONT BUMPER

main52541-48010×2iMCU15200007

52611ABSORBER, FRONT BUMPER ENERGY

main52611-48010iMCU15200007

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

8101HEADLAMP

→ Go to FIG 81-01

9010506139

main90105-06139

9010506170

main90105-06170

9015960431

main90159-60431

9017905060

main90179-05060

9017906127

main90179-06127

9017906132

main90179-06132

9017906336

main90179-06336

9017910143

main90179-10143

9095901577

main90959-01577

93381B6032

main93381-B6032

27 parts on this diagram · 1 diagram in section
