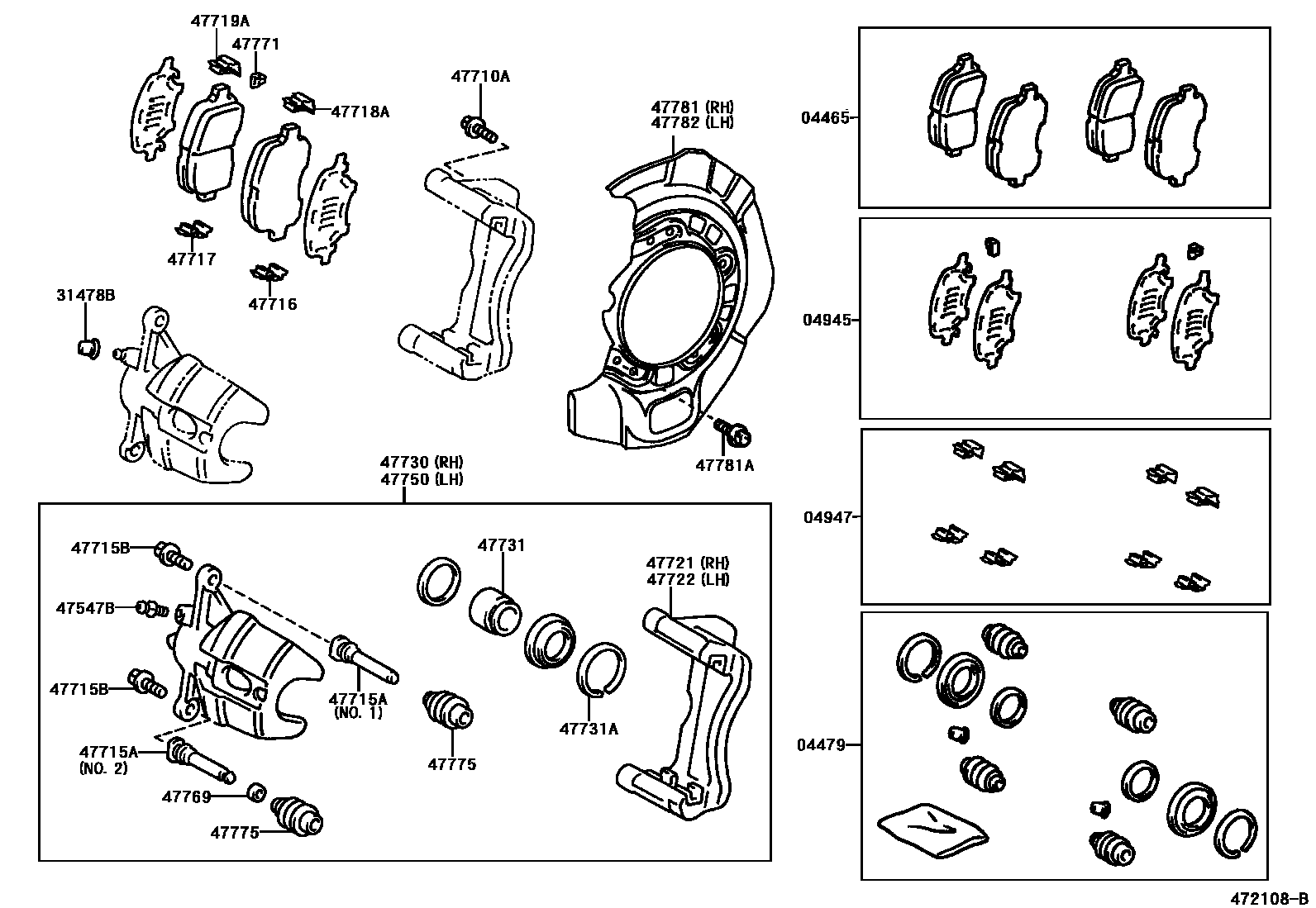

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1HONG KONG,SINGAPORE OR BLUNEI0003 1HONG KONG,SINGAPORE OR BLUNEI

04465PAD KIT, DISC BRAKE, FRONT

main04465-48010iMCU15..RHD200007-200108

MARK AK PA533,HONG KONG OR SINGAPORE OR BRUNEI SPEC

sub04465-48060

main04465-48020iMCU15200007

MARK NBK PN532H

sub04465-48090

main04465-48040iMCU15..LHD200108

MARK NBK PN532H,SAUDI ARABIA & GULF SPEC

main04465-48050iMCU15..RHD200108

MARK AK PA560H,HONG KONG OR SINGAPORE OR BRUNEI SPEC

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-33130iMCU15200007

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33040iMCU15..RHD200007-200108

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main04945-48030iMCU15200007

main04945-48040iMCU15..RHD200108

HONG KONG OR SINGAPORE OR BRUNEI SPEC

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48010iMCU15200007

sub04947-48070

main04947-48020iMCU15..RHD200007-200108

HONG KONG OR SINGAPORE OR BRUNEI SPEC

sub04947-48040

main04947-48030iMCU15..RHD200108

HONG KONG OR SINGAPORE OR BRUNEI SPEC

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iMCU15200007

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iMCU15200007

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iMCU15200007

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-48010×2iMCU15200007

NO.1

sub47815-48090

main47715-48020×2iMCU15200007

NO.2

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08346×4iMCU15200007

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48010×2iMCU15200007

sub47716-48130

main47716-48030×2iMCU15..RHD200007-200108

BRUNEI OR HONG KONG OR SINGAPORE SPEC

main47716-48050×4iMCU15..RHD200108

BRUNEI OR HONG KONG OR SINGAPORE SPEC

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-48010×2iMCU15200007

sub47716-48130

main47716-48030×2iMCU15..RHD200007-200108

BRUNEI OR HONG KONG OR SINGAPORE SPEC

main47716-48060×4iMCU15..RHD200108

BRUNEI OR HONG KONG OR SINGAPORE SPEC

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47716-48040×2iMCU15200007

sub47716-48140

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47716-48040×2iMCU15200007

sub47716-48140

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48010iMCU15..RHD200007-200108

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47721-48011iMCU15..RHD200108

BRUNEI OR HONG KONG OR SINGAPORE SPEC

sub47721-48012

main47721-48020iMCU15200007

sub47721-48021

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-48010iMCU15..RHD200007-200108

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47721-48011iMCU15..RHD200108

BRUNEI OR HONG KONG OR SINGAPORE SPEC

sub47721-48012

main47721-48020iMCU15200007

sub47721-48021

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48010iMCU15..RHD200007-200108

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47730-48011iMCU15..RHD200108

BRUNEI OR HONG KONG OR SINGAPORE SPEC

main47730-48030iMCU15200007

47731PISTON, FRONT DISC BRAKE

main47731-33050×2iMCU15200007

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001×2iMCU15200007

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48010iMCU15..RHD200007-200108

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47750-48011iMCU15..RHD200108

BRUNEI OR HONG KONG OR SINGAPORE SPEC

main47750-48030iMCU15200007

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-33020×2iMCU15200007

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33010×2iMCU15..RHD200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47771-48010×2iMCU15200007

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-33020×4iMCU15200007

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-48020iMCU15200007

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×8iMCU15200007-200103

main90119-06227×8iMCU15200103

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-48020iMCU15200007

25 parts on this diagram · 3 diagrams in section
