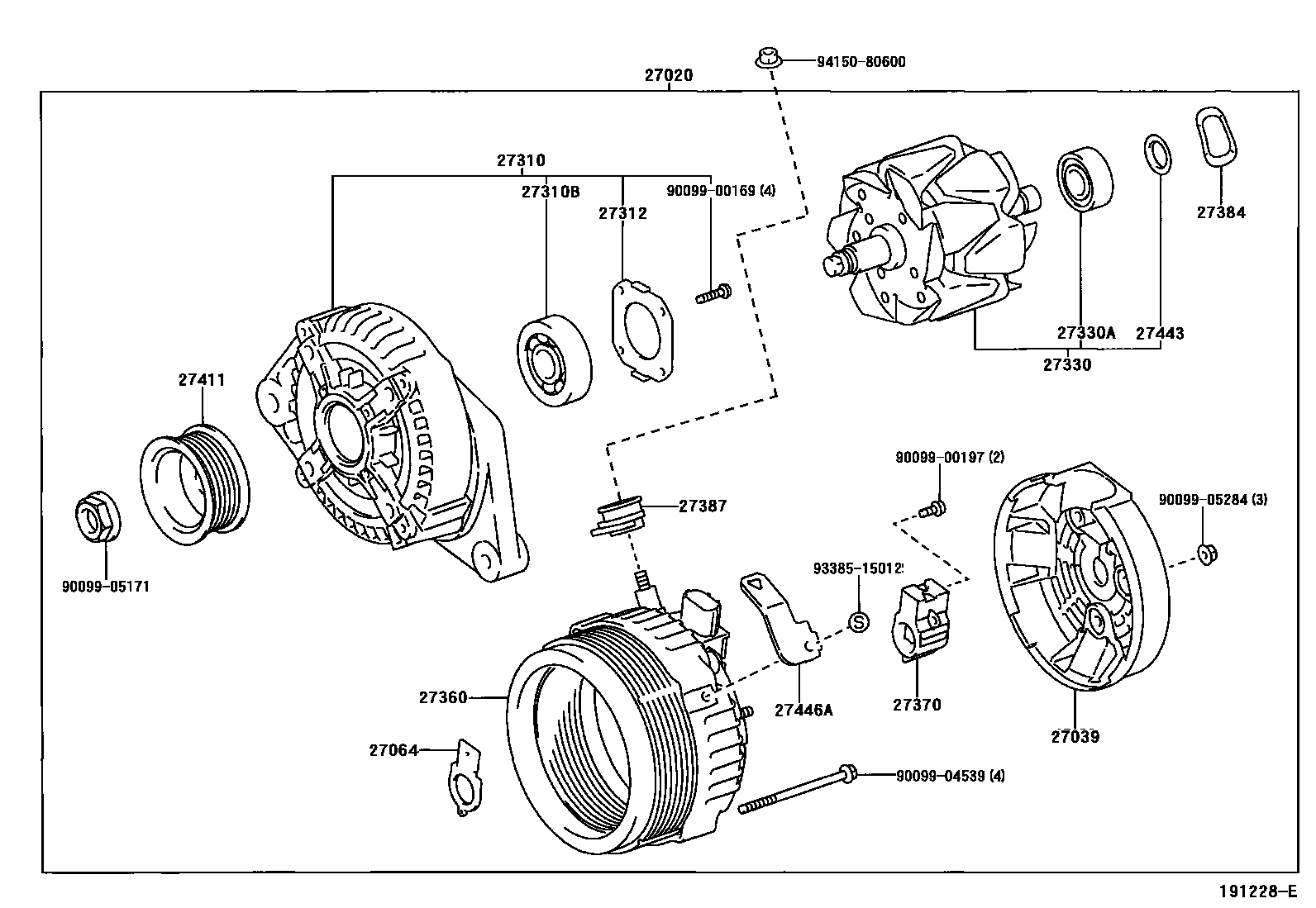

ALTERNATOR

27020ALTERNATOR ASSY

main27060-20180i1MZFE..MCU15200007

12V 130A

27039COVER, ALTERNATOR REAR END

main27039-20130i1MZFE..MCU15200007

27064SEAL, ALTERNATOR PLATE

main27064-42010i1MZFE..MCU15200007

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-20130i1MZFE..MCU15200007

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i1MZFE..MCU15200007

sub90099-10223

27312PLATE, RETAINER

main27312-72100i1MZFE..MCU15200007

27330ROTOR ASSY, ALTERNATOR

main27330-20130i1MZFE..MCU15200007

sub27330-33090

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1MZFE..MCU15200007

27360COIL ASSY, ALTERNATOR

main27360-20190i1MZFE..MCU15200007

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i1MZFE..MCU15200007

27384WASHER

main27384-50030i1MZFE..MCU15200007

27387INSULATOR, TERMINAL

main27387-20130i1MZFE..MCU15200007

27411PULLEY, ALTERNATOR

main27411-46080i1MZFE..MCU15200007

27443COVER, ALTERNATOR BEARING

main27443-63020i1MZFE..MCU15200007

27446ACLAMP

main27446-20150i1MZFE..MCU15200007

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9338515012

main93385-15012

9415080600

main94150-80600

22 parts on this diagram · 1 diagram in section
