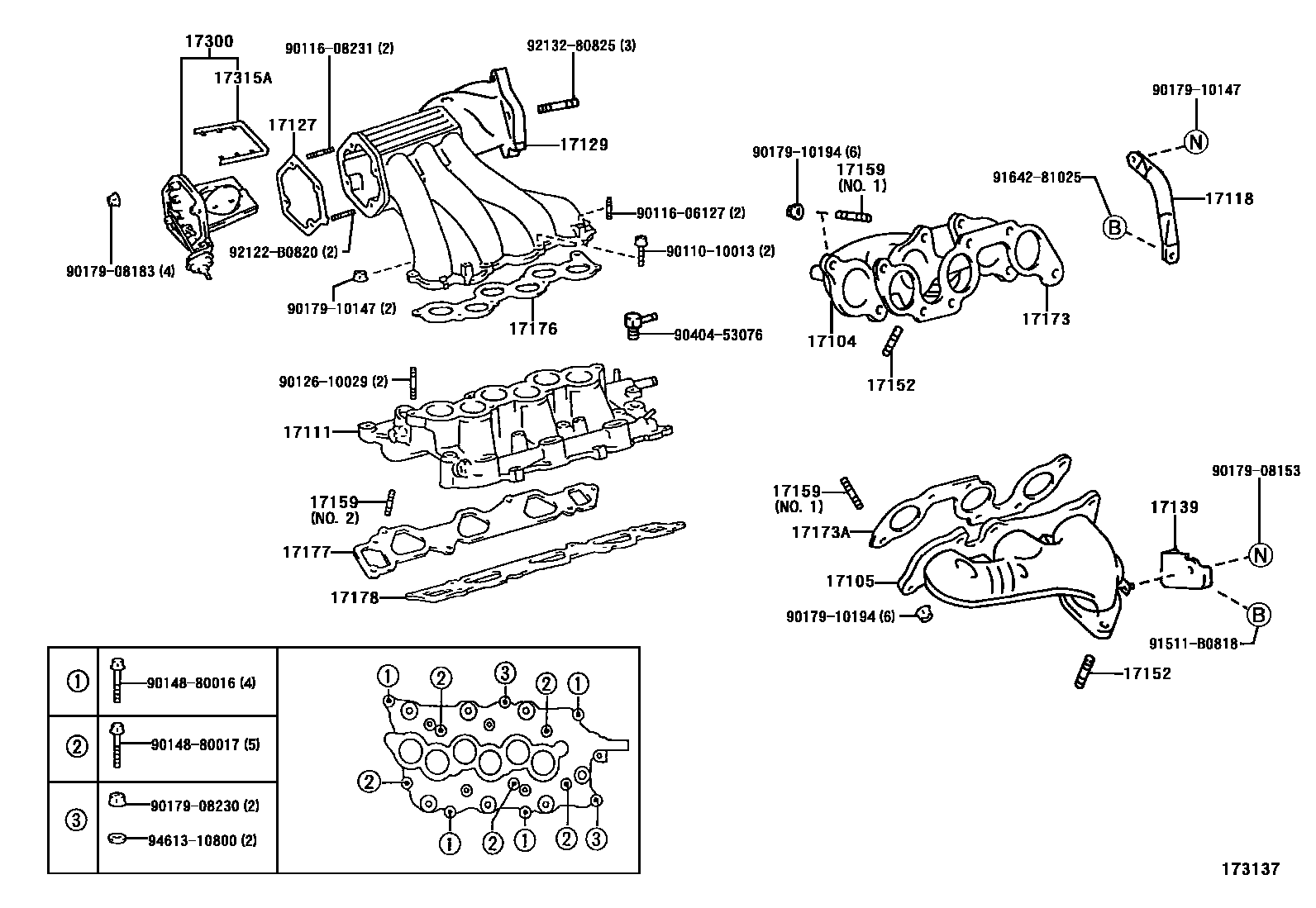

MANIFOLD
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
sub17109-20081
17139STAY, MANIFOLD, NO.2
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17300VALVE ASSY, INTAKE AIR CONTROL
17315AGASKET, INTAKE AIR CONTROL VALVE
9011010013
main90110-10013
9011606127
main90116-06127
9011608231
main90116-08231
9012610029
main90126-10029
9014880016
main90148-80016
9014880017
main90148-80017
9017908153
main90179-08153
9017908183
main90179-08183
9017908230
main90179-08230
9017910147
main90179-10147
9017910194
main90179-10194
9040453076
main90404-53076
91511B0818
main91511-B0818
9164281025
main91642-81025
92122B0820
main92122-B0820
9213280825
main92132-80825
9461310800
main94613-10800
33 parts on this diagram · 1 diagram in section
