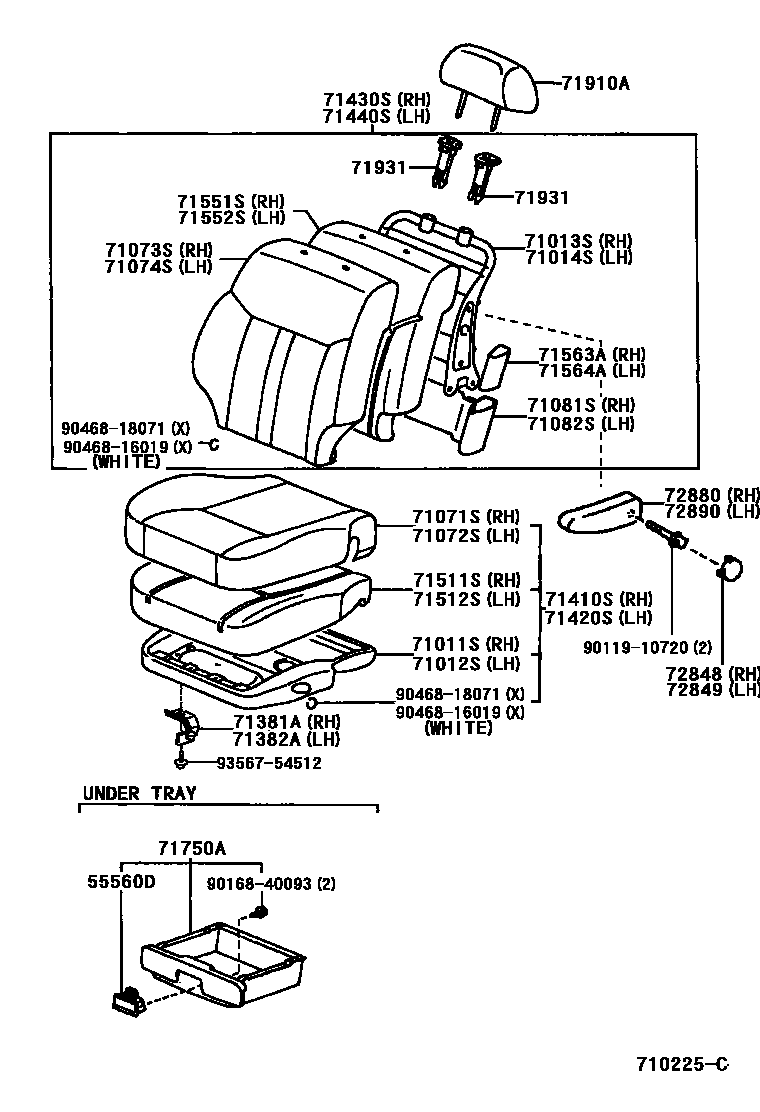

FRONT SEAT & SEAT TRACK

0001 1 0002 1

55560DLOCK ASSY, SEAT UNDER TRAY

main55560-95J00-B1iSXM10199609-199708

MEDIUM MOON MIST,TRIM1#

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-44010iCXM10,SXM10..LHD199708

main71011-44020iCXM10,SXM10..RHD199708

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-44010iCXM10,SXM10..RHD199804

main71011-44020iCXM10,SXM10..RHD199708-199804

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-44010iCXM10,SXM10199609

main71013-44040iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE)

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71013-44010iCXM10,SXM10199609

main71014-44030iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-44040-B0iSXM10..LHD199609-199708

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71071-44041-B0iCXM10,SXM10..LHD199708-199804

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71071-44042-B1iCXM10,SXM10..LHD199804-199910

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71071-44043-B1iCXM10,SXM10..LHD199910-200105

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71071-44050-B0iSXM10199609-199708

MEDIUM MOON MIST,TRIM1#

main71071-44051-B0iCXM10,SXM10..LHD199708-199804

MEDIUM MOON MIST,TRIM1#

main71071-44052-B1iCXM10,SXM10..LHD199804-199910

MEDIUM MOON MIST,TRIM1#

main71071-44053-B1iCXM10,SXM10..LHD199910-200105

MEDIUM MOON MIST,TRIM1#

main71071-44060-B0iCXM10,SXM10..RHD199708-199804

MEDIUM MOON MIST,TRIM1#

main71071-44061-B1iCXM10,SXM10..RHD199804-199910

MEDIUM MOON MIST,TRIM1#

main71071-44062-B1iCXM10,SXM10..RHD199910-200105

MEDIUM MOON MIST,TRIM1#

main71071-44240-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

main71071-44250-B0iCXM10..RHD..06S;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main71071-44630-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE) & W(SEAT HEATER),GRAY,TRIM12

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-44050-B0iSXM10199609-199708

MEDIUM MOON MIST,TRIM1#

main71071-44051-B0iCXM10,SXM10..RHD199708-199804

MEDIUM MOON MIST,TRIM1#

main71071-44052-B1iCXM10,SXM10..RHD199804-199910

MEDIUM MOON MIST,TRIM1#

main71071-44053-B1iCXM10,SXM10..RHD199910-200105

MEDIUM MOON MIST,TRIM1#

main71071-44240-B0iCXM10..RHD..06S;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main71072-44010-B0iSXM10..LHD199609-199708

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71072-44011-B0iCXM10,SXM10..LHD199708-199804

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71072-44012-B1iCXM10,SXM10..LHD199804-199910

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71072-44013-B1iCXM10,SXM10..LHD199910-200105

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71072-44050-B0iCXM10,SXM10..LHD199708-199804

MEDIUM MOON MIST,TRIM1#

main71072-44051-B1iCXM10,SXM10..LHD199804-199910

MEDIUM MOON MIST,TRIM1#

main71072-44052-B1iCXM10,SXM10..LHD199910-200105

MEDIUM MOON MIST,TRIM1#

main71072-44180-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

main71072-44290-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE) & W(SEAT HEATER),GRAY,TRIM12

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-44010-B0iCXM10,SXM10199609-199804

MEDIUM MOON MIST,TRIM1#

main71073-44011-B4iCXM10,SXM10..06S199804-200105

MEDIUM MOON MIST,TRIM1#

main71073-44041-B1iCXM10,SXM10..07S199804-200105

MEDIUM MOON MIST,TRIM1#

main71073-44050-B0iCXM10,SXM10..LHD199609-199804

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71073-44051-B1iCXM10,SXM10..LHD..06S199804-200105

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71073-44061-B1iCXM10,SXM10..LHD..07S199804-200105

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71073-44250-B0iSXM10..LHD..06S..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

main71073-44260-B0iCXM10,SXM10..LHD..07S..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

main71073-44720-B0iSXM10..LHD..06S..MTM200010-200102

SPECIAL EDITION 2(EUROPE) & W(SEAT HEATER),GRAY,TRIM12

main71073-44730-B0iCXM10,SXM10..LHD..07S..MTM200010-200102

SPECIAL EDITION 2(EUROPE) & W(SEAT HEATER),GRAY,TRIM12

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-44010-B0iCXM10,SXM10199609-199804

MEDIUM MOON MIST,TRIM1#

main71073-44011-B4iCXM10,SXM10199804-200105

MEDIUM MOON MIST,TRIM1#

main71074-44050-B0iCXM10,SXM10..LHD199609-199804

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71074-44051-B1iCXM10,SXM10..LHD199804-200105

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71074-44280-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

main71074-44440-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE) & W(SEAT HEATER),GRAY,TRIM12

71081SCOVER SUB-ASSY, FRONT SEATBACK SIDE, RH

main71081-44010iSXM10199609-199708

main71081-44020iCXM10,SXM10199708

71082SCOVER SUB-ASSY, FRONT SEATBACK SIDE, LH

main71081-44010iSXM10199609-199708

main71082-44010iCXM10,SXM10199708

71381ABRACKET, REAR SEAT CUSHION SET, RH

71382ABRACKET, REAR SEAT CUSHION SET, LH

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-44040-B0iSXM10..LHD199609-199708

W(SEAT HEATER),MD.MOON MIST,TRIM1#

main71410-44041-B0iCXM10,SXM10..LHD199708-199804

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71410-44042-B1iCXM10,SXM10..LHD199804-199910

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71410-44043-B1iCXM10,SXM10..LHD199910-200105

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71410-44050-B0iSXM10199609-199708

MEDIUM MOON MIST,TRIM1#

main71410-44051-B0iCXM10,SXM10..LHD199708-199804

MEDIUM MOON MIST,TRIM1#

main71410-44052-B1iCXM10,SXM10..LHD199804-199910

MEDIUM MOON MIST,TRIM1#

main71410-44053-B1iCXM10,SXM10..LHD199910-200105

MEDIUM MOON MIST,TRIM1#

main71410-44060-B0iCXM10,SXM10..RHD199708-199804

MEDIUM MOON MIST,TRIM1#

main71410-44061-B1iCXM10,SXM10..RHD199804-199910

MEDIUM MOON MIST,TRIM1#

main71410-44062-B1iCXM10,SXM10..RHD199910-200105

MEDIUM MOON MIST,TRIM1#

main71410-44240-B0iCXM10,SXM10..LHD..MTM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main71410-44250-B0iCXM10..RHD..06S;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main71410-44530-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE) & W(SEAT HEATER),GRAY,TRIM12

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-44050-B0iSXM10199609-199708

MEDIUM MOON MIST,TRIM1#

main71410-44051-B0iCXM10,SXM10..RHD199708-199804

MEDIUM MOON MIST,TRIM1#

main71410-44052-B1iCXM10,SXM10..RHD199804-199910

MEDIUM MOON MIST,TRIM1#

main71410-44053-B1iCXM10,SXM10..RHD199910-200105

MEDIUM MOON MIST,TRIM1#

main71410-44240-B0iCXM10..RHD..06S;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main71420-44010-B0iSXM10..LHD199609-199708

W(SEAT HEATER),MD.MOON MIST,TRIM1#

main71420-44011-B0iCXM10,SXM10..LHD199708-199804

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71420-44012-B1iCXM10,SXM10..LHD199804-199910

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71420-44013-B1iCXM10,SXM10..LHD199910-200105

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71420-44050-B0iCXM10,SXM10..LHD199708-199804

MEDIUM MOON MIST,TRIM1#

main71420-44051-B1iCXM10,SXM10..LHD199804-199910

MEDIUM MOON MIST,TRIM1#

main71420-44052-B1iCXM10,SXM10..LHD199910-200105

MEDIUM MOON MIST,TRIM1#

main71420-44230-B0iCXM10,SXM10..LHD..MTM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main71420-44490-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE) & W(SEAT HEATER),GRAY,TRIM12

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-44010-B0iCXM10,SXM10199609-199804

MD.MOON MIST,TRIM1#

main71430-44011-B3iCXM10,SXM10..06S199804-200105

MEDIUM MOON MIST,TRIM1#

main71430-44041-B1iCXM10,SXM10..07S199804-200105

MEDIUM MOON MIST,TRIM1#

main71430-44050-B0iCXM10,SXM10..LHD199609-199804

W(SEAT HEATER),MD.MOON MIST,TRIM1#

main71430-44051-B1iCXM10,SXM10..LHD..06S199804-200105

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71430-44061-B1iCXM10,SXM10..LHD..07S199804-200105

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71430-44260-B0iSXM10..LHD..06S..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

main71430-44270-B0iCXM10,SXM10..LHD..07S..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

main71430-44550-B0iSXM10..LHD..06S..MTM200010-200102

SPECIAL EDITION 2(EUROPE) & W(SEAT HEATER),GRAY,TRIM12

main71430-44560-B0iCXM10,SXM10..LHD..07S..MTM200010-200102

SPECIAL EDITION 2(EUROPE) & W(SEAT HEATER),GRAY,TRIM12

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-44010-B0iSXM10199609-199708

MD.MOON MIST,TRIM1#

main71440-44040-B0iCXM10,SXM10199708-199804

MD. MOON MIST,TRIM1#

main71440-44041-B1iCXM10,SXM10199804-200105

MEDIUM MOON MIST,TRIM1#

main71440-44050-B0iCXM10,SXM10..LHD199609-199804

W(SEAT HEATER),MD.MOON MIST,TRIM1#

main71440-44051-B1iCXM10,SXM10..LHD199804-200105

W(SEAT HEATER),MEDIUM MOON MIST,TRIM1#

main71440-44300-B0iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main71440-44610-B0iCXM10,SXM10..LHD..MTM200010-200102

SPECIAL EDITION 2(EUROPE) & W(SEAT HEATER),GRAY,TRIM12

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-44020iSXM10199609-199708

main71511-44021iCXM10,SXM10..RHD199708

main71512-44020iCXM10,SXM10..LHD199804

main71512-44030iCXM10,SXM10..LHD199708-199804

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-44020iSXM10199609-199708

main71512-44020iCXM10,SXM10..LHD199708-199804

main71512-44030iCXM10,SXM10..LHD199804

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-44010iSXM10199609-199708

main71551-44020iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE

main71551-44030iCXM10,SXM10199708

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-44010iSXM10199609-199708

main71552-44010iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE

main71552-44020iCXM10,SXM10199708

71563APAD, FRONT SEATBACK SIDE, RH

main71563-44010×2iSXM10199609-199708

71564APAD, FRONT SEATBACK SIDE, LH

main71564-44010×2iSXM10199609-199708

71750ATRAY ASSY, FRONT SEAT UNDER

main71750-26010-B1iSXM10199609-199708

MD.MOON MIST,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-44010-B0×2iCXM10,SXM10199609-199804

MD.MOON MIST,TRIM1#

main71910-44011-B3×2iCXM10,SXM10199804-200105

MEDIUM MOON MIST,TRIM1#

main71910-44160-B1×2iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

71931SUPPORT, FRONT SEAT HEADREST

main71930-28030-B6×2iCXM10,SXM10199808-200105

W(LOCK),BLUE GRAY,TRIM1#

main71930-44010-B0×2iCXM10,SXM10199609-199808

W(LOCK),BLUE GRAY,TRIM1#

main71931-12040-P6×2iCXM10,SXM10199609-199712

W/O(LOCK),BLUE GRAY,TRIM1#

main71931-28030-B5×2iCXM10,SXM10199712-200105

W/O(LOCK),BLUISH GRAY,TRIM1#

72848CAP, NO.3 SEAT ARMREST

main72848-44040iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE

72849CAP, SEAT ARMREST, NO.2

main72848-44040iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE

72880ARMREST ASSY, SEAT, C RH

main72880-44120-B1iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main72880-44120-B2iSXM10..LHD..06S..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

72890ARMREST ASSY, SEAT, C LH

main72890-44050-B1iCXM10..06S;CXM10..LHD..07S;SXM10..LHD..MTM;SXM10..RHD..06S..ATM199908-200001

SPECIAL EDITION FOR EUROPE,GRAY,TRIM12

main72890-44050-B2iSXM10..LHD..06S..MTM200010-200102

SPECIAL EDITION 2(EUROPE),GRAY,TRIM12

9011910720

main90119-10720

9016840093

main90168-40093

9046816019

main90468-16019

9046818071

main90468-18071

9356754512

main93567-54512

35 parts on this diagram · 2 diagrams in section
