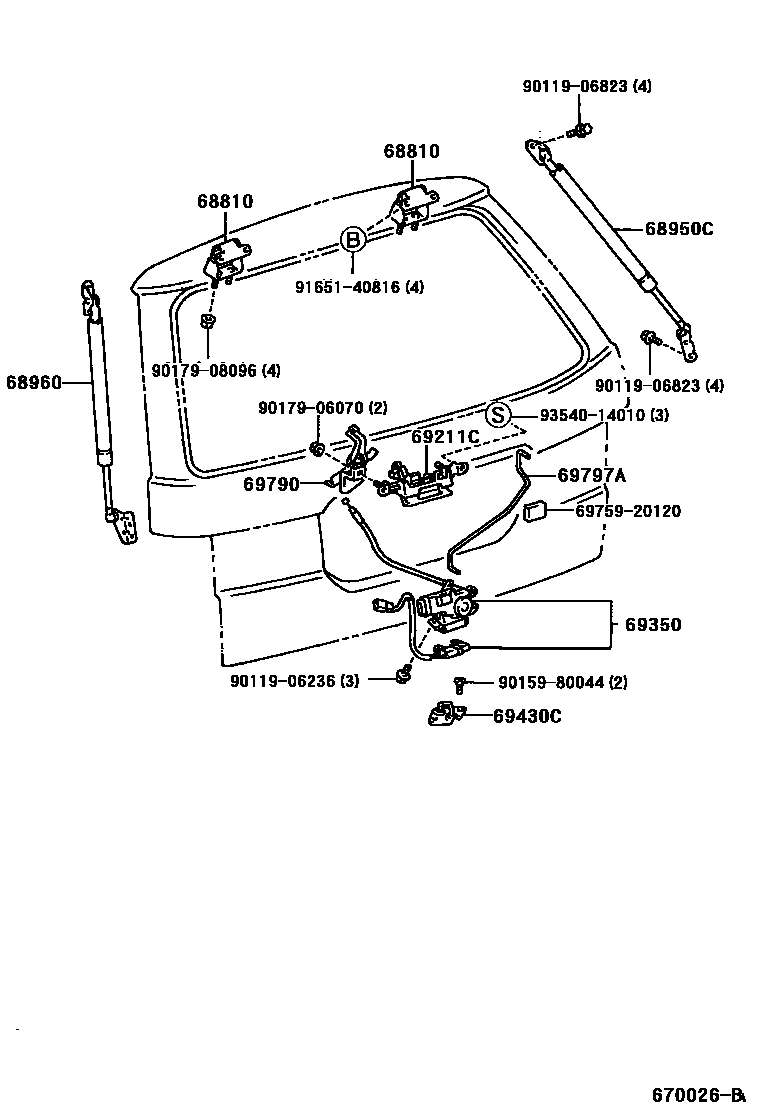

BACK DOOR LOCK & HANDLE

68810HINGE ASSY, BACK DOOR, UPPER

main68810-44010iCXM10,SXM10199609

68950CSTAY ASSY, BACK DOOR, RH

main68950-44010iCXM10,SXM10199609

68960STAY ASSY, BACK DOOR, LH

main68960-44010iCXM10,SXM10199609

69211CHANDLE, BACK DOOR OUTSIDE

main69023-21020iCXM10,SXM10199609

69350LOCK ASSY, BACK DOOR

main69350-0W010iCXM10,SXM10199609-199804

sub69350-44030

main69350-44030iCXM10,SXM10199804

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-44010iCXM10,SXM10199609

sub69430-13010

69790CONTROL ASSY, BACK DOOR LOCK

main69790-44010iCXM10,SXM10199609-199804

sub69790-44011

main69790-44011iCXM10,SXM10199804

69797ALINK, BACK DOOR CYLINDER TO LOCK CONTROL

main69797-44010iCXM10,SXM10199609

6975920120SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20120

9011906236

main90119-06236

9011906823

main90119-06823

9015980044

main90159-80044

9017906070

main90179-06070

9017908096

main90179-08096

9165140816

main91651-40816

9354014010

main93540-14010

16 parts on this diagram · 1 diagram in section
