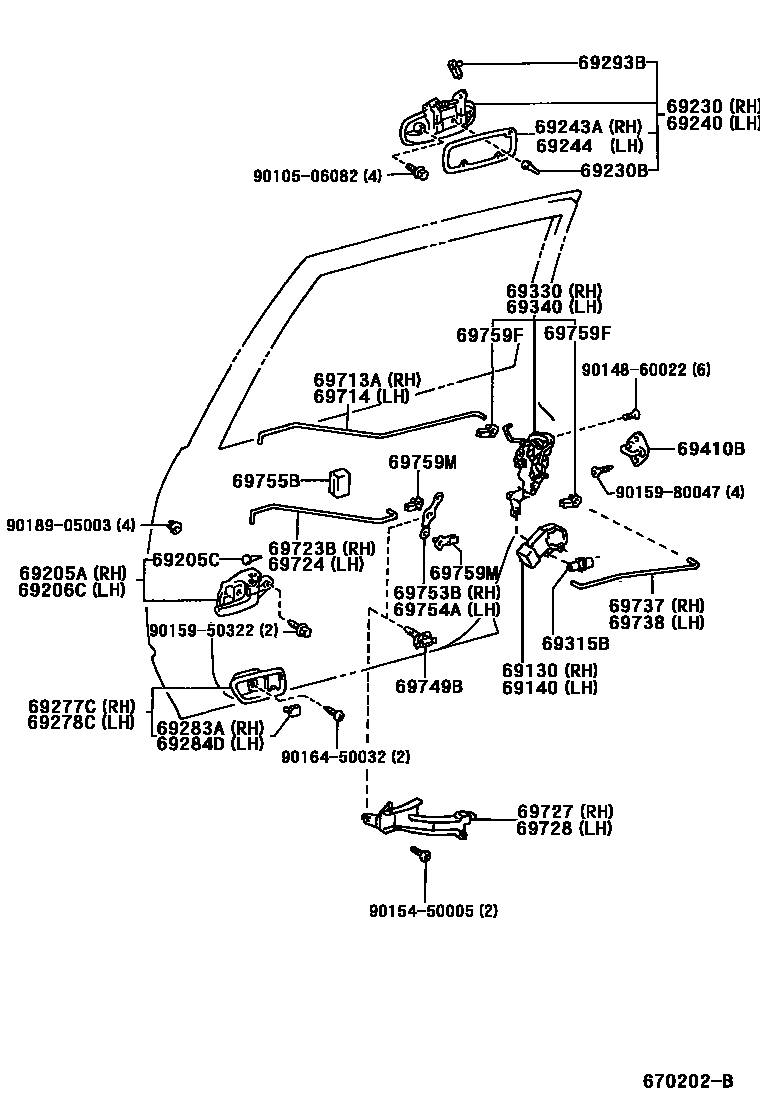

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
MD.MOON MIST,TRIM1#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
BODY COLOR BLACK(DENMARK),BLACK,202
sub69230-12230
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE,056
SILVER ME,199
WINE RED MC,3J8
GOLD ME,4L9
DK.GREEN M.M.,6P3
DK.TURQUOISE MC.,760
DK.BLUE MM.GR.,8K5
BLUE ME.AMC.,8N2
69243APAD, REAR DOOR OUTSIDE HANDLE, RH
69244PAD, REAR DOOR OUTSIDE HANDLE, LH
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69315BRETAINER, REAR DOOR LOCK SOLENOID
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69723BLINK, REAR DOOR INSIDE LOCKING, NO.3 RH
69724LINK, REAR DOOR INSIDE LOCKING, NO.3 LH
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69749BCLAMP, REAR DOOR LOCK LINK
69753BBELLCRANK, REAR DOOR LOCK CONTROL, RH
69754ABELLCRANK, REAR DOOR LOCK CONTROL, LH
69755BSILENCER, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
LH
RH
LH
RH
69759MSNAP, DOOR LOCK CONTROL LINK
RH
LH
9010506082
main90105-06082
9014860022
main90148-60022
9015450005
main90154-50005
9015950322
main90159-50322
9015980047
main90159-80047
9016450032
main90164-50032
9018905003
main90189-05003
40 parts on this diagram · 2 diagrams in section
