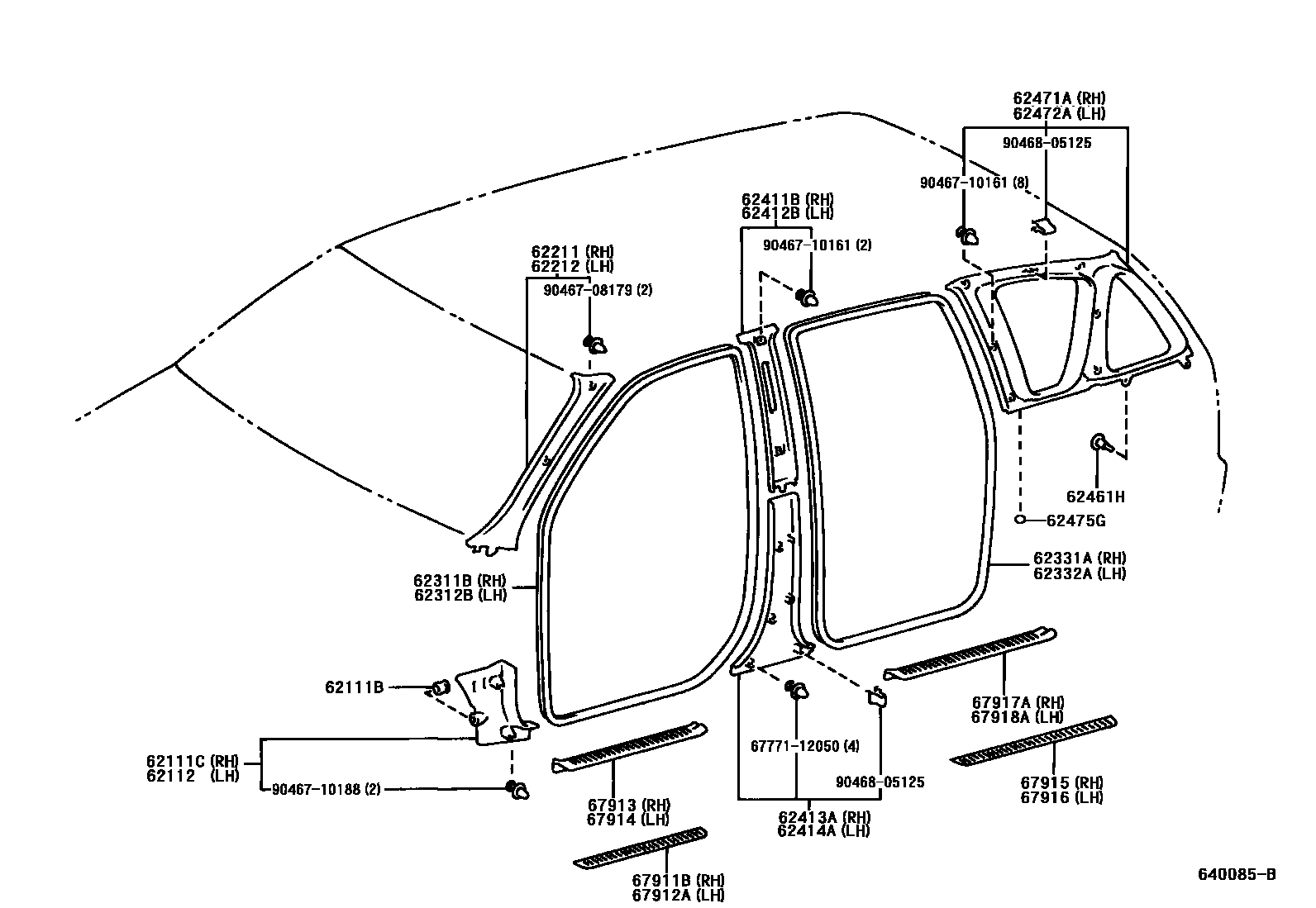

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
MD.MOON MIST,TRIM1#
62211GARNISH, FRONT PILLAR, RH
MOON MIST,TRIM1#
62212GARNISH, FRONT PILLAR, LH
MOON MIST,TRIM1#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
62414AGARNISH, CENTER PILLAR, LOWER LH
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62471AGARNISH, ROOF SIDE, INNER RH
62472AGARNISH, ROOF SIDE, INNER LH
62475GSEAL, ROOF SIDE, INNER
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
MD.MOON MIST,TRIM1#
67918APLATE, REAR DOOR SCUFF, LH
MD.MOON MIST,TRIM1#
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
9046708179
main90467-08179
9046710161
main90467-10161
9046710188
main90467-10188
9046805125
main90468-05125
30 parts on this diagram · 1 diagram in section
