MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-44010-B1iSXM10..RHD..ATM199609-199708

MEDIUM MOON MIST,TRIM1#

sub58510-44012

main58510-44011-B2iSXM10..RHD..ATM199708-199801

MEDIUM MOON MIST,TRIM1#

main58510-44012-B2iSXM10..RHD..06S..ATM199801-200005

MEDIUM MOON MIST,TRIM1#

sub58510-44013

main58510-44013-B2iSXM10..RHD..06S..ATM200005-200105

MEDIUM MOON MIST,TRIM1#

main58510-44020-B1iSXM10..RHD..MTM199609-199708

MEDIUM MOON MIST,TRIM1#

sub58510-44022

main58510-44021-B2iCXM10,SXM10..RHD..MTM199708-199801

MEDIUM MOON MIST,TRIM1#

main58510-44022-B2iCXM10,SXM10..RHD..06S..MTM199801-200007

MEDIUM MOON MIST,TRIM1#

sub58510-44590

main58510-44032-B2iSXM10..RHD..07S..ATM199804-200005

MEDIUM MOON MIST,TRIM1#

sub58510-44033

main58510-44033-B2iSXM10..RHD..07S..ATM200005-200105

MEDIUM MOON MIST,TRIM1#

main58510-44042-B2iCXM10..RHD..07S199804-200105

MEDIUM MOON MIST,TRIM1#

sub58510-44600

main58510-44050-B1iSXM10..LHD..ATM199609-199708

MEDIUM MOON MIST,TRIM1#

sub58510-44052

main58510-44051-B2iSXM10..LHD..ATM199708-199801

MEDIUM MOON MIST,TRIM1#

main58510-44052-B2iSXM10..LHD..06S..ATM199801-200005

MEDIUM MOON MIST,TRIM1#

sub58510-44053

main58510-44053-B2iSXM10..LHD..06S..ATM200005-200105

MEDIUM MOON MIST,TRIM1#

main58510-44060-B1iSXM10..LHD..MTM199609-199708

MEDIUM MOON MIST,TRIM1#

sub58510-44062

main58510-44061-B2iCXM10,SXM10..LHD..MTM199708-199801

MEDIUM MOON MIST,TRIM1#

main58510-44062-B2iCXM10..LHD..06S199801-200007

MEDIUM MOON MIST,TRIM1#

sub58510-44610

main58510-44072-B2iSXM10..LHD..07S..ATM199804-200005

MEDIUM MOON MIST,TRIM1#

sub58510-44073

main58510-44073-B2iSXM10..LHD..07S..ATM200005-200105

MEDIUM MOON MIST,TRIM1#

main58510-44082-B2iCXM10,SXM10..LHD..07S..MTM199804-200105

MEDIUM MOON MIST,TRIM1#

sub58510-44620

main58510-44100-B1iSXM10..LHD..ATM199609-199708

COLD SPEC,MEDIUM MOON MIST,TRIM1#

sub58510-44102

main58510-44101-B2iSXM10..LHD..ATM199708-199801

COLD SPEC,MEDIUM MOON MIST,TRIM1#

main58510-44102-B2iSXM10..LHD..06S..ATM199801-200005

COLD SPEC,MEDIUM MOON MIST,TRIM1#

sub58510-44103

main58510-44103-B2iSXM10..LHD..06S..ATM200005-200105

COLD SPEC,MEDIUM MOON MIST,TRIM1#

main58510-44110-B1iSXM10..LHD..MTM199609-199708

COLD SPEC,MEDIUM MOON MIST,TRIM1#

sub58510-44112

main58510-44111-B2iCXM10,SXM10..LHD..MTM199708-199801

COLD SPEC,MEDIUM MOON MIST,TRIM1#

main58510-44112-B2iCXM10,SXM10..LHD..06S..MTM199801-200007

COLD SPEC,MEDIUM MOON MIST,TRIM1#

sub58510-44630

main58510-44122-B2iSXM10..LHD..07S..ATM199804-200005

COLD SPEC,MEDIUM MOON MIST,TRIM1#

sub58510-44123

main58510-44123-B2iSXM10..LHD..07S..ATM200005-200105

COLD SPEC,MEDIUM MOON MIST,TRIM1#

main58510-44132-B2iCXM10,SXM10..LHD..07S..MTM199804-200105

COLD SPEC,MEDIUM MOON MIST,TRIM1#

sub58510-44640

main58510-44150-B1iSXM10..LHD..MTM199609-199708

W/O(REAR SEAT),MEDIUM MOON MIST,TRIM1#

sub58510-44152

main58510-44151-B1iCXM10,SXM10..LHD..MTM199708-199801

W/O(REAR SEAT),MEDIUM MOON MIST,TRIM1#

main58510-44152-B1iCXM10,SXM10..LHD..06S..MTM199801-200007

W/O(REAR SEAT),MEDIUM MOON MIST,TRIM1#

sub58510-44650

main58510-44500-B0iSXM10..LHD..06S..ATM199901-200005

W/O(REAR SEAT),DARK BLUE.,TRIM1#

sub58510-44501

main58510-44501-B0iSXM10..LHD..06S..ATM200005-200105

W/O(REAR SEAT),MEDIUM MOON MIST,TRIM1#

main58510-44590-B0iSXM10..RHD..06S..MTM200005-200105

MEDIUM MOON MIST,TRIM1#

main58510-44600-B0iSXM10..RHD..07S..MTM200005-200105

MEDIUM MOON MIST,TRIM1#

main58510-44610-B0iSXM10..LHD..06S..MTM200005-200105

MEDIUM MOON MIST,TRIM1#

main58510-44620-B0iSXM10..LHD..07S..MTM200005-200105

MEDIUM MOON MIST,TRIM1#

main58510-44630-B0iSXM10..LHD..06S..MTM200005-200105

COLD SPEC,MEDIUM MOON MIST,TRIM1#

main58510-44640-B0iSXM10..LHD..07S..MTM200005-200105

COLD SPEC,MEDIUM MOON MIST,TRIM1#

main58510-44650-B0iSXM10..LHD..06S..MTM200005-200105

W/O(REAR SEAT),MEDIUM MOON MIST,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-44010iCXM10,SXM10199609

58534AMAT, TRANSMISSION COVER

main58533-44010-B0iCXM10,SXM10..LHD199609-200105

MD.MOON MIST,TRIM1#

main58534-44010-B0iCXM10,SXM10..RHD199609-200105

MD.MOON MIST,TRIM1#

sub58534-44010

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-07121-B0iCXM10,SXM10199609-200105

BLUISH GRAY,TRIM1#

sub90467-07121

sub90467-07207

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-44010-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

sub58569-44010

58570CCARPET ASSY, REAR FLOOR

main58571-44010-B0iSXM10199609-199708

MEDIUM MOON MIST,TRIM1#

main58571-44011-B0iCXM10,SXM10199708-200105

MEDIUM MOON MIST,TRIM1#

main58571-44030-B0iSXM10..LHD..MTM199609-199708

W/O(REAR SEAT),MEDIUM MOON MIST,TRIM1#

main58571-44031-B0iCXM10,SXM10..LHD..06S199708-200105

W/O(REAR SEAT),MEDIUM MOON MIST,TRIM1#

58573APLATE, REAR FLOOR MAT SUPPORT

main58573-44010-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

sub58573-44010

58574CPLUG, REAR FLOOR MAT SUPPORT PLATE HOLE

main67919-44010-B0iCXM10,SXM10199609-200105

MD.MOON MIST,TRIM1#

sub67919-44010

67921BRETAINER, REAR FLOOR MAT SUPPORT

main67921-95501iCXM10,SXM10199609-199808

main67921-95501iCXM10,SXM10199808

TYPE A:REFER TO ILLUSTRATION

main90467-09182iCXM10,SXM10199808

TYPE B:REFER TO ILLUSTRATION

9095001510

main90950-01510

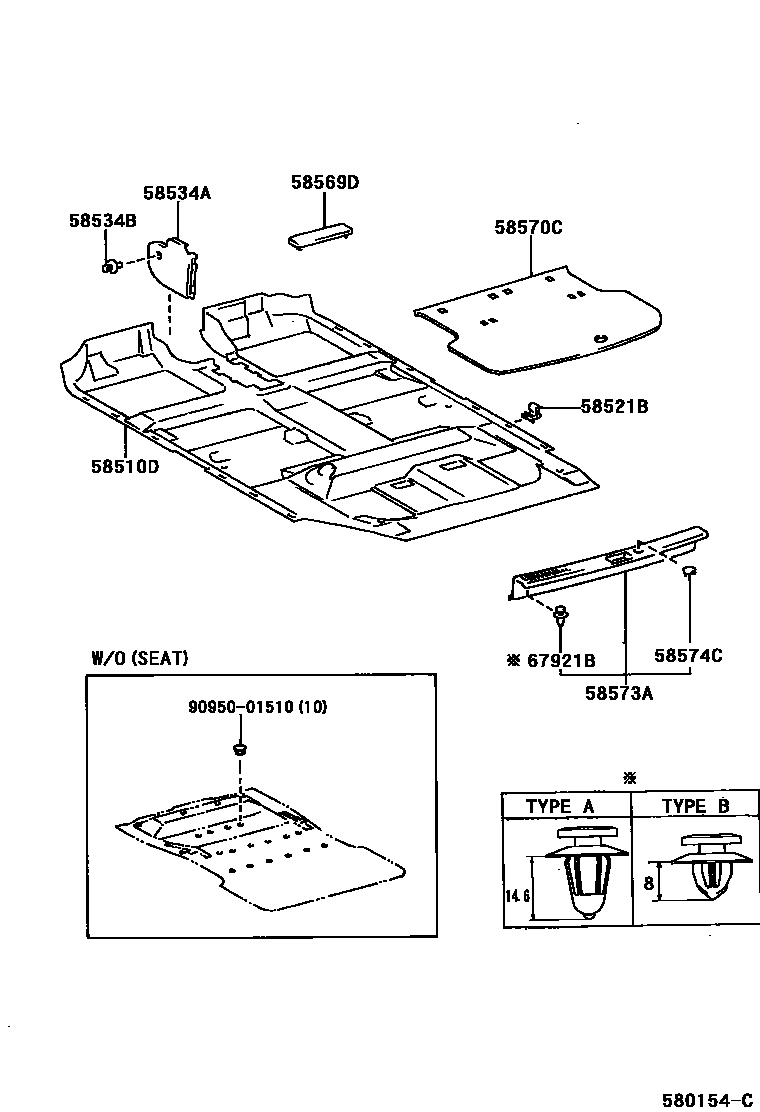

10 parts on this diagram · 1 diagram in section
