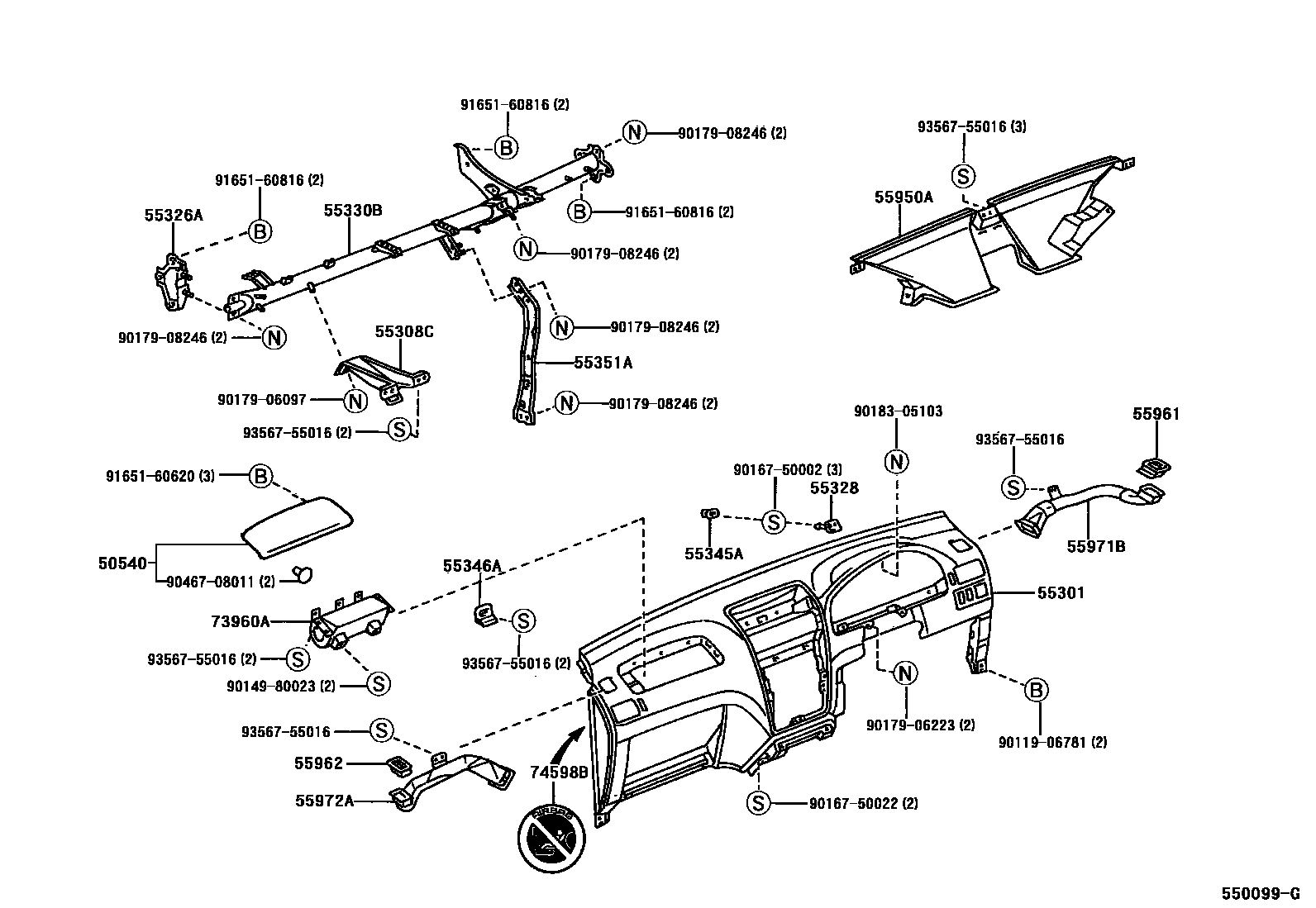

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

50540DO0R ASSY, AIRBAG PASSENGER

main50540-44010-B0iSXM10..RHD199609-199708

MD.MOON MIST,TRIM1#

main50540-44011-B0iCXM10,SXM10..RHD199708-200004

MD.MOON MIST,TRIM1#

main50540-44020-B0iSXM10..LHD199609-199708

MD.MOON MIST,TRIM1#

main50540-44021-B0iCXM10,SXM10..LHD199708-200004

MD.MOON MIST,TRIM1#

55301PANEL SUB-ASSY, INSTRUMENT

main55311-44010-B0iCXM10,SXM10..RHD199609-200105

MD.MOON MIST,TRIM1#

main55311-44020-B0iCXM10,SXM10..LHD199609-200105

MD.MOON MIST,TRIM1#

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-44010iCXM10,SXM10..RHD199609

main55308-44020iCXM10,SXM10..LHD199609

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-44010iCXM10,SXM10..RHD199609

main55326-44020iCXM10,SXM10..LHD199609

55328PIN, INSTRUMENT PANEL, NO.1

main55328-44010×3iCXM10,SXM10199609

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-44010iCXM10,SXM10..RHD199609-199804

main55330-44020iCXM10,SXM10..LHD199609-199804

main55330-44030iCXM10,SXM10..RHD199804

main55330-44050iCXM10,SXM10..LHD199804

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-44010×3iCXM10,SXM10199609

55346ACLIP, INSTRUMENT PANEL, NO.2

main55346-44010×2iCXM10,SXM10199609

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-44010iCXM10,SXM10..RHD199609

main55351-44020iCXM10,SXM10..LHD199609

55950ANOZZLE ASSY, DEFROSTER

main55950-44010iCXM10,SXM10..RHD199609

main55950-44020iCXM10,SXM10..LHD199609

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-44010-B0iCXM10,SXM10..RHD199609-200105

MD.MOON MIST,TRIM1#

main55961-44020-B0iCXM10,SXM10..LHD199609-200105

MD.MOON MIST,TRIM1#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-44010-B0iCXM10,SXM10..RHD199609-200105

MD.MOON MIST,TRIM1#

main55962-44020-B0iCXM10,SXM10..LHD199609-200105

MD.MOON MIST,TRIM1#

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-44010iCXM10,SXM10..RHD199609

main55971-44020iCXM10,SXM10..LHD199609

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-44010iCXM10,SXM10..RHD199609

main55972-44020iCXM10,SXM10..LHD199609

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-44010iSXM10..RHD199609-199708

main73960-44020iSXM10..LHD199609-199708

main73960-44030iCXM10,SXM10..RHD199708-199804

main73960-44040iCXM10,SXM10..LHD199708-199804

main73960-44050iSXM10..RHD;CXM10..RHD..07S200004

main73960-44060iCXM10,SXM10..LHD199804-200004

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iCXM10,SXM10199609-200004

9011906781

main90119-06781

9014980023

main90149-80023

9016750002

main90167-50002

9016750022

main90167-50022

9017906097

main90179-06097

9017906223

main90179-06223

9017908246

main90179-08246

9018305103

main90183-05103

9046708011

main90467-08011

9165160620

main91651-60620

9165160816

main91651-60816

9356755016

main93567-55016

28 parts on this diagram · 4 diagrams in section
