TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

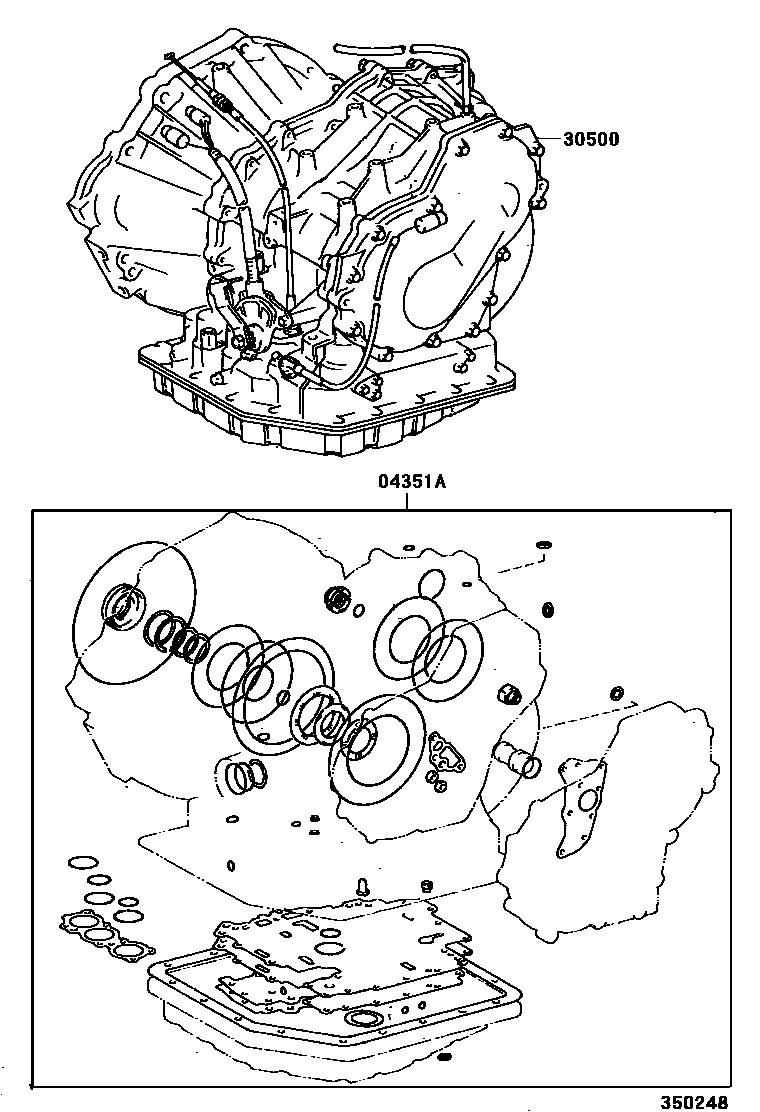

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-16090i199609-199804

main04351-42020i199804

30500TRANSAXLE ASSY, AUTOMATIC

main30500-44020i199609-199804

main30500-44070i199804

2 parts on this diagram · 1 diagram in section
