511510
›

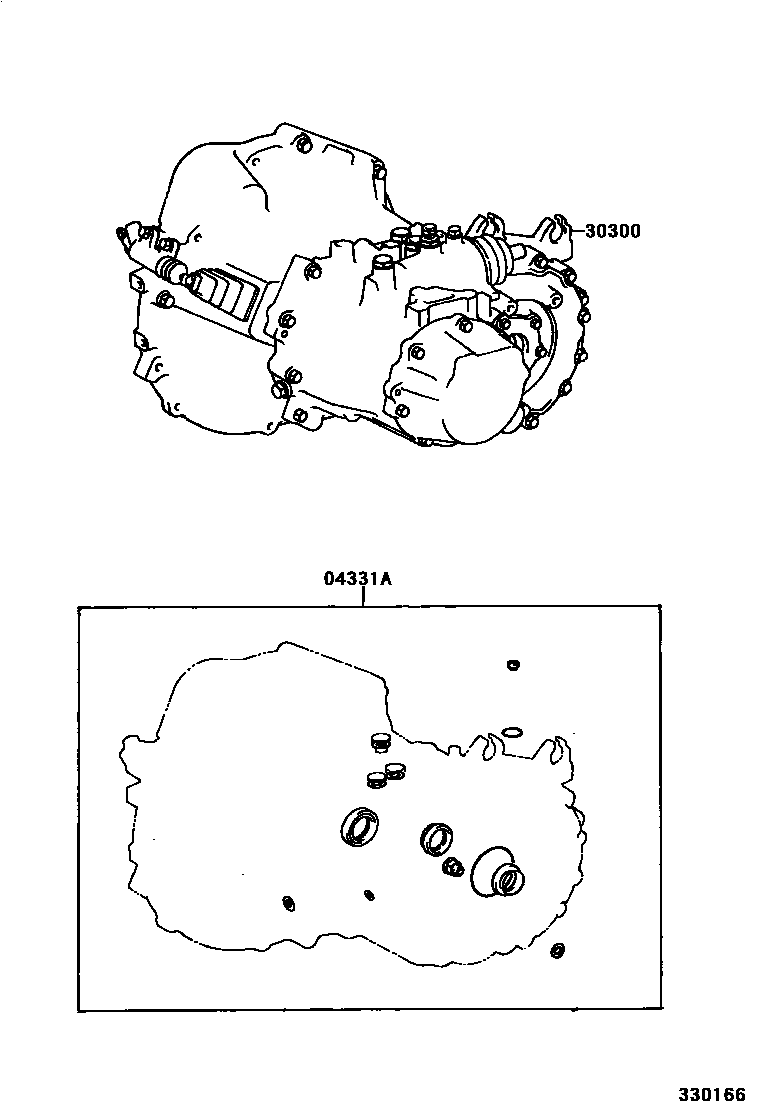

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)
TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)
04331A
GASKET KIT, TRANSAXLE OVERHAUL(MTM)
main
04331-32011
i
CXM10,SXM10..MTM
199609-200002
main
04331-32040
i
CXM10,SXM10..MTM
200002
30300
TRANSAXLE ASSY, MANUAL
main
30300-44010
i
SXM10..MTM
199609-199804
main
30300-44020
i
CXM10
199709-199804
main
30300-44030
i
SXM10..MTM
199804
main
30300-44040
i
CXM10
199804
2 parts on this diagram · 1 diagram in section
