ENGINE OVERHAUL GASKET KIT

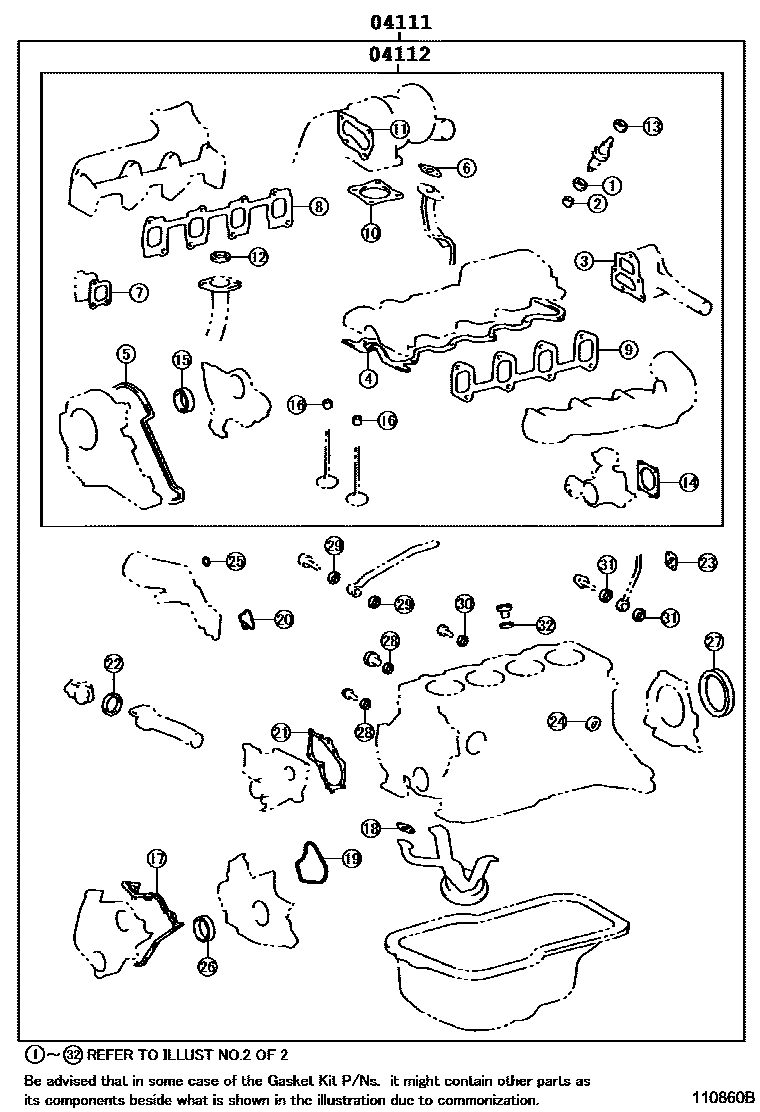

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-64361i199709-199805
sub04111-64362
main04111-64362i199805-199811
sub04111-64363
main04111-64363i199811-199906
sub04111-64364
main04111-64364i199906
main04111-74591i199609-199612
sub04111-74592
main04111-74592i199612-199804
main04111-74740i199804-200005
main04111-74850i200005
04112GASKET KIT, ENGINE VALVE GRIND
main04112-64271i199709-199906
sub04112-64272
main04112-64272i199906
main04112-74561i199609-199612
sub04112-74562
main04112-74562i199612-199804
main04112-74740i199804-200005
main04112-74850i200005

2 parts on this diagram · 6 diagrams in section
