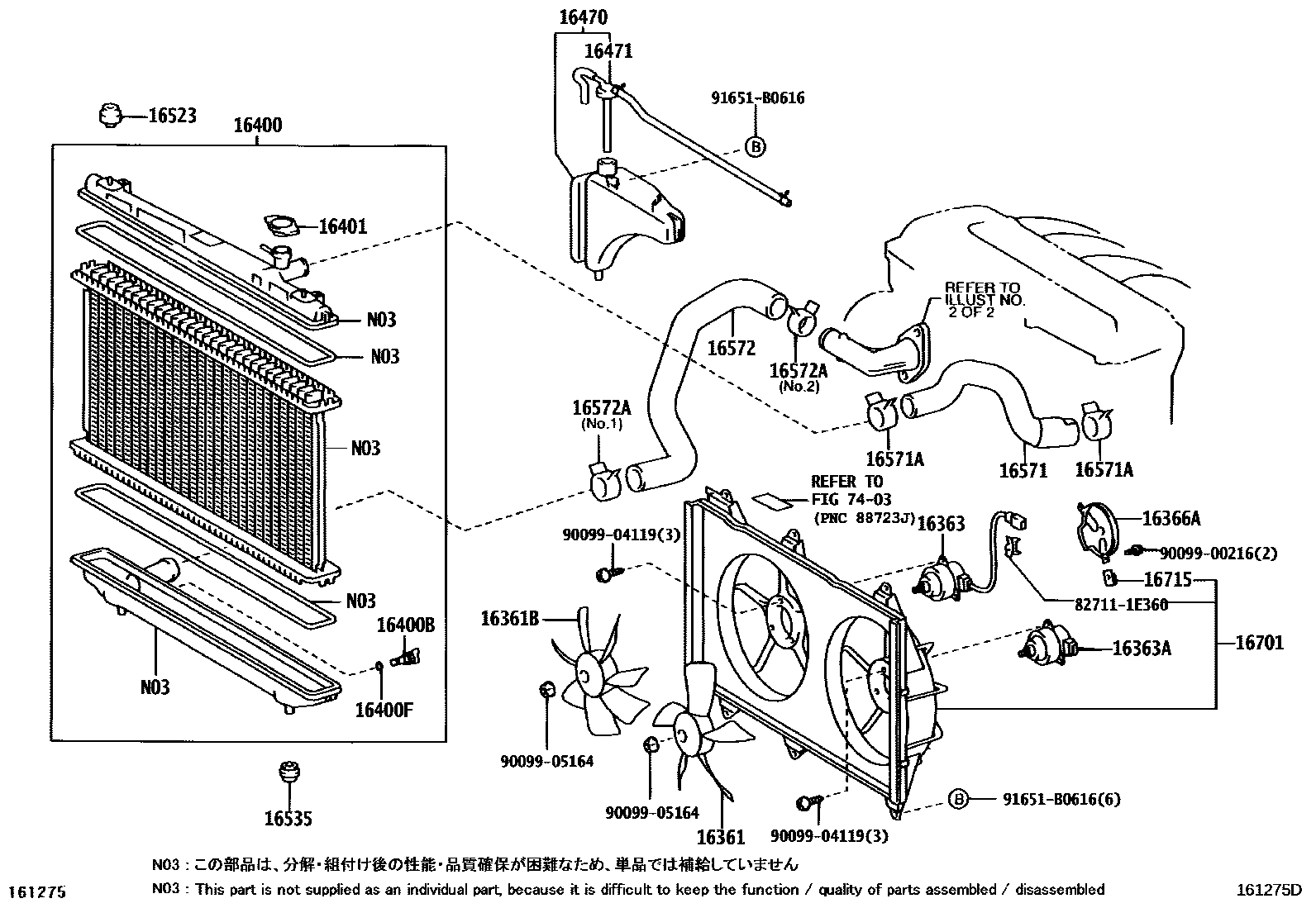

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16361FAN

main16361-21050i1AZFE,2AZFE..ACM2#..ARL,GEN200401

main16361-23050i1AZFE..ACM20..ARL,GEN200105-200507

main16361-28020i1AZFE..ACM20..EUR200105-200407

sub16361-28021

main16361-28021i1AZFE..ACM20..EUR200408-200507

16361BFAN, NO.2

main16361-23040i1AZFE..ACM20..EUR200105-200201

sub16361-28100

main16361-28050i1CDFTV..CLM20200105-200507

main16361-28100i1AZFE..ACM20..EUR200201-200507

main16361-28170i1AZFE,2AZFE..ACM2#..ARL,GEN200401

16363MOTOR, COOLING FAN

main16363-23010i1AZFE..ACM20..EUR200105-200507

main16363-23030i1CDFTV..CLM20200105-200306

sub16363-28160

main16363-23030i1CDFTV..CLM20..LHD200310-200507

W(AIR CONDITIONER)

sub16363-28160

main16363-28100i1AZFE..ACM20..ARL,GEN200105-200310

main16363-28160i1CDFTV..CLM20200306-200507

main16363-28220i1AZFE,2AZFE..ACM2#..ARL,GEN200310

16363AMOTOR, COOLING FAN, NO.2

main16363-23030i1CDFTV..CLM20200105-200310

sub16363-28160

main16363-23030i1CDFTV..CLM20..LHD200310-200507

W(AIR CONDITIONER)

sub16363-28160

main16363-28110i1AZFE..ACM20..EUR200105-200310

main16363-28160i1CDFTV..CLM20200306-200507

main16363-28200i1AZFE..ACM20..EUR200310-200507

16366AINSULATOR, COOLING FAN MOTOR

main16366-28170i1AZFE..ACM20..ARL,GEN200105-200310

16400RADIATOR ASSY

main16400-27050i1CDFTV..CLM20200105-200507

main16400-28290i1AZFE..ACM20..ATM..(EUR,GEN)200105-200310

main16400-28300i1AZFE..ACM20..MTM..EUR200105-200507

sub16400-28290

main16400-28320i1AZFE..ACM20..ARL200110-200310

16400BPLUG, RADIATOR DRAIN COCK

main16417-15210i1CDFTV..CLM20200105-200507

main23322-54010i1AZFE..ACM20200105-200310

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1CDFTV..CLM20200105-200507

main16492-21050i1AZFE,2AZFE..ACM2#200105-200310

16401CAP SUB-ASSY, RADIATOR

main16401-31480i1AZFE,2AZFE..ACM2#200807

main16401-53010i1CDFTV..CLM20200105-200507

sub16475-51010

main16401-62100i1AZFE,2AZFE..ACM2#200105-200806

sub16401-31520

16470TANK ASSY, RADIATOR RESERVE

main16470-27050i1CDFTV..CLM20200105-200507

main16470-28070i1AZFE,2AZFE..ACM2#200105-200310

16471CAP SUB-ASSY, RESERVE TANK

main16405-28040i1AZFE,2AZFE..ACM2#200105-200310

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-27020i1CDFTV..CLM20200105-200507

main16523-28010i1AZFE..ACM20200105-200310

16535SUPPORT, RADIATOR, LOWER

main16535-74150i1AZFE..ACM20200105-200310

main16535-74210i1CDFTV..CLM20200105-200507

16571HOSE, RADIATOR, INLET

main16571-27070i1CDFTV..CLM20200105-200507

main16571-28120i1AZFE,2AZFE..ACM2#200105-200310

main16571-28160i1AZFE..ACM20..ATM..ARL200110-200310

TOWING PACKAGE

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-41001i1CDFTV..CLM20200105-200204

sub90467-41002

main90466-41008i1CDFTV..CLM20200310-200507

main90467-37005i1AZFE,2AZFE..ACM2#200204-200310

main90467-37006i1AZFE..ACM20200105-200204

sub90467-37005

main90467-41002i1CDFTV..CLM20200204-200310

sub90466-41008

16572HOSE, RADIATOR, OUTLET

main16572-27060i1CDFTV..CLM20200105-200507

main16572-28090i1AZFE..ACM20200105-200310

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i1AZFE..ACM20200105-200310

NO.1

main90466-41001i1CDFTV..CLM20200105-200204

sub90467-41002

main90466-41008i1CDFTV..CLM20200310-200507

main90467-37005i1AZFE,2AZFE..ACM2#200204-200310

NO.2

main90467-37006i1AZFE..ACM20200105-200204

NO.2

sub90467-37005

main90467-41002i1CDFTV..CLM20200204-200310

sub90466-41008

16701SHROUD SUB-ASSY, FAN

main16711-28220i1AZFE..ACM20..EUR200105-200507

main16711-28230i1AZFE..ACM20..ARL,GEN200105-200310

16715BRACKET, FAN SHROUD

main88688-18030i1AZFE..ACM20..ARL,GEN200105-200310

7403

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009900216

main90099-00216

9009904119

main90099-04119

9009905164

main90099-05164

91651B0616

main91651-B0616

25 parts on this diagram · 6 diagrams in section
