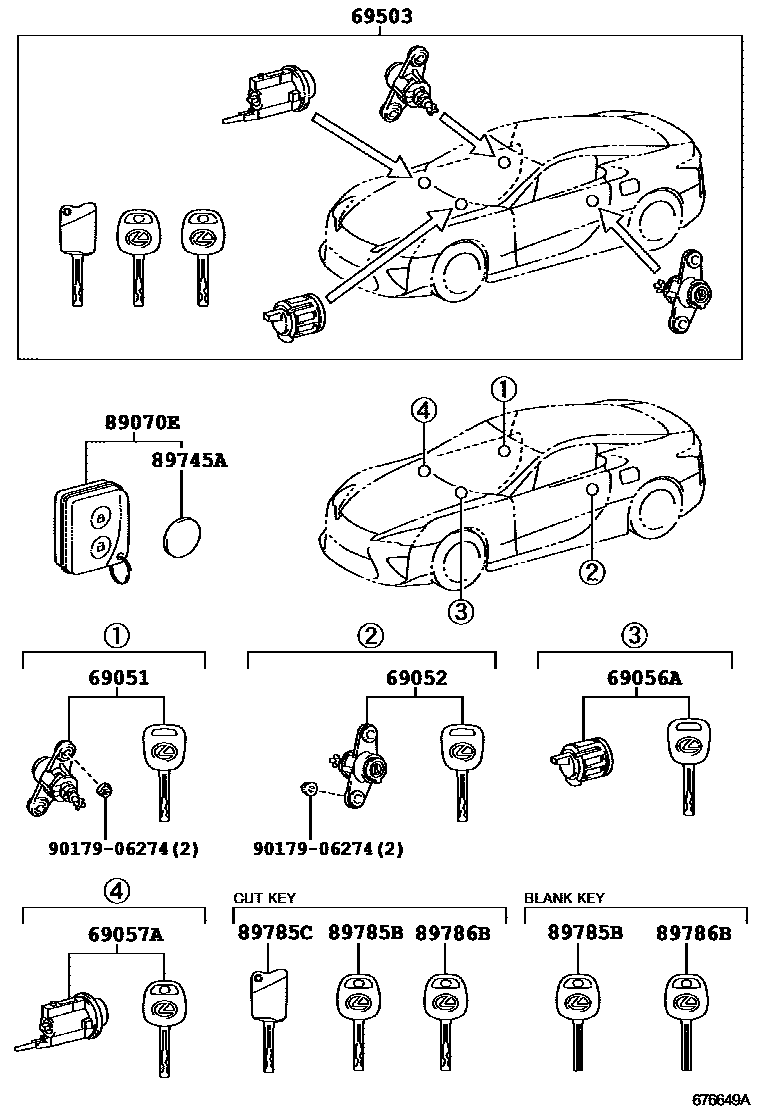

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-77010iLFA10..GCC201012

main69051-77020iLFA10..EUR201012

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-77010iLFA10201012

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-77010iLFA10201012

sub69056-30250

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-77010iLFA10201012

69503CYLINDER SET, LOCK

main69005-77010iLFA10..GCC201012

main69005-77020iLFA10..EUR201012

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-77020iLFA10201012

89745ABATTERY, TRANSMITTER

main89745-48030iLFA10201012

sub89745-71010

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-77030iLFA10201012

BLANK KEY

main89785-77040iLFA10201012

CUT KEY

89785CTRANSMITTER, TRANSPONDER KEY MASTER

main89785-77080iLFA10201012

CUT KEY

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-77020iLFA10201012

BLANK KEY

main89786-77030iLFA10201012

CUT KEY

9017906274

main90179-06274

11 parts on this diagram · 2 diagrams in section
