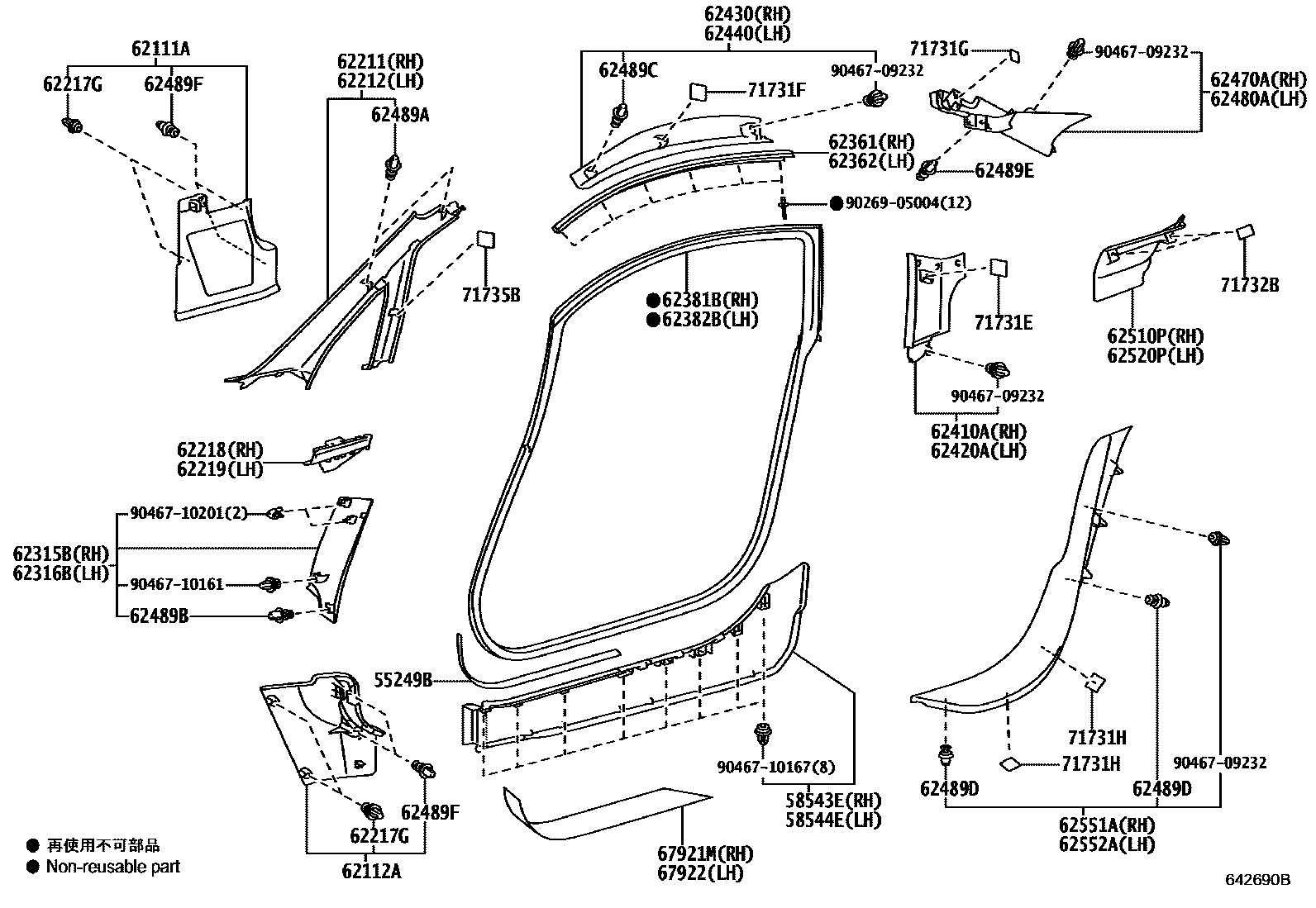

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
55249BSEAL, FRONT PANEL
58543ECARPET, STEP SIDE, RH
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
58544ECARPET, STEP SIDE, LH
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
62111ATRIM SUB-ASSY, COWL SIDE, RH
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
62112ATRIM SUB-ASSY, COWL SIDE, LH
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62217GCLIP, FRONT PILLAR GARNISH
62218PIECE, FRONT PILLAR GARNISH CORNER, RH
62219PIECE, FRONT PILLAR GARNISH CORNER, LH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
62316BCOVER, FRONT DOOR OPENING TRIM, LH
62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
62381BWEATHERSTRIP, ROOF SIDE RAIL, RH
62382BWEATHERSTRIP, ROOF SIDE RAIL, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
62420AGARNISH ASSY, CENTER PILLER, LH
62430GARNISH ASSY, ROOF SIDE RAIL, RH
62440GARNISH ASSY, ROOF SIDE RAIL, LH
62470AGARNISH ASSY, ROOF SIDE, INNER RH
62480AGARNISH ASSY, ROOF SIDE, INNER LH
62489ACLIP, ROOF SIDE INNER GARNISH
62489BCLIP, ROOF SIDE INNER GARNISH
62489CCLIP, ROOF SIDE INNER GARNISH
62489DCLIP, ROOF SIDE INNER GARNISH
62489ECLIP, ROOF SIDE INNER GARNISH
62489FCLIP, ROOF SIDE INNER GARNISH
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
62551ACOVER, REAR SEAT SIDE, RH
BORDEAUX,TRIM20
SADDLE TAN,TRIM20
ORANGE,TRIM20
BLACKISH BROWN,TRIM20
CAMEL YELLOW,TRIM20
VIOLET,TRIM20
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
BLUE,TRIM20
62552ACOVER, REAR SEAT SIDE, LH
SADDLE TAN,TRIM20
ORANGE,TRIM20
BLACKISH BROWN,TRIM20
CAMEL YELLOW,TRIM20
VIOLET,TRIM20
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
BORDEAUX,TRIM20
BLUE,TRIM20
67921MPANEL, FRONT DOOR SCUFF, RH
67922PANEL, FRONT DOOR SCUFF, LH
71731EFASTENER, SEAT COVER, A
71731FFASTENER, SEAT COVER, A
71731GFASTENER, SEAT COVER, A
71731HFASTENER, SEAT COVER, A
71732BFASTENER, SEAT COVER, B
71735BFASTENER, SEAT COVER, C
9026905004
main90269-05004
9046709232
main90467-09232
9046710161
main90467-10161
9046710167
main90467-10167
9046710201
main90467-10201
45 parts on this diagram · 2 diagrams in section
