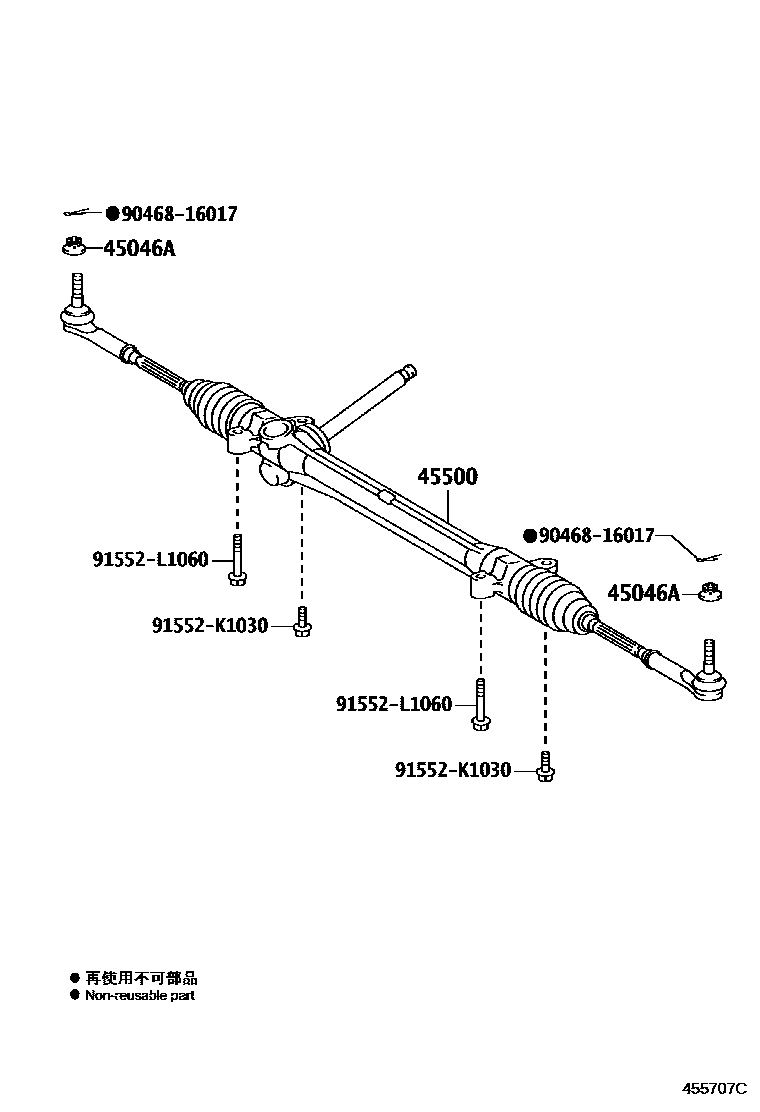

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014×2iLFA10201012-201212

45500LINK ASSY, STEERING

main45500-77010iLFA10..LHD201012

main45500-77020iLFA10..RHD201012

9046816017

main90468-16017

91552K1030

main91552-K1030

91552L1060

main91552-L1060

5 parts on this diagram · 2 diagrams in section
