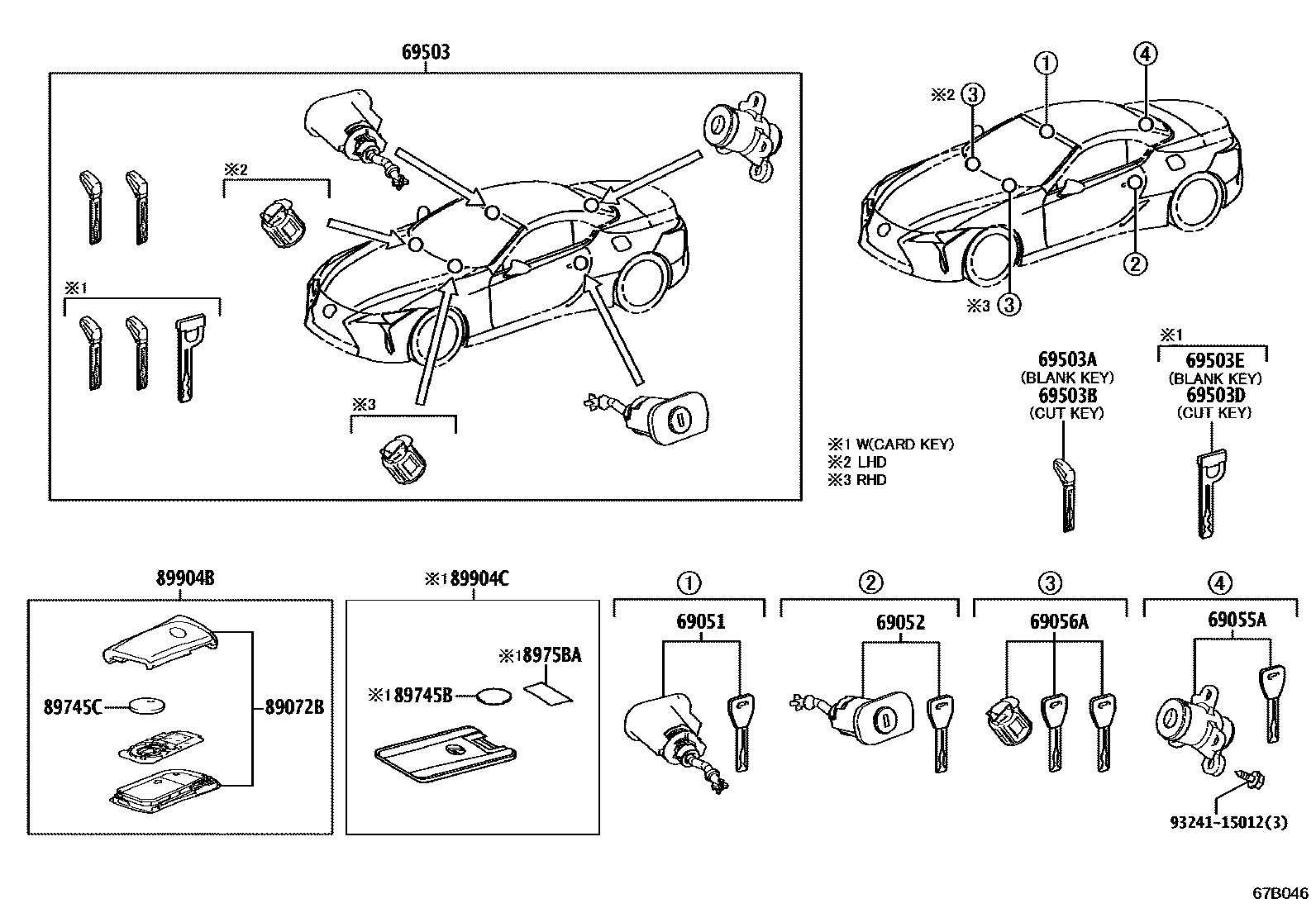

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503AKEY, BLANK
BLANK KEY
69503BKEY, CUT
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
69503EKEY, BLANK(CARD KEY)
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
MALAYSIA SPEC
SOUTH AFRICA SPEC
MALTA SPEC
CYPRUS SPEC
IRELAND SPEC
MALAYSIA SPEC
89745BBATTERY, TRANSMITTER(CARD KEY)
89745CBATTERY, TRANSMITTER
CR2032
8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
SOUTH AFRICA SPEC
CYPRUS SPEC
IRELAND SPEC
MALAYSIA SPEC
MALTA SPEC
SOUTH AFRICA SPEC
MALAYSIA SPEC
MALTA SPEC
CYPRUS SPEC
IRELAND SPEC
MALAYSIA SPEC
MALTA SPEC
CYPRUS SPEC
IRELAND SPEC
PHILIPPINE SPEC
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
9324115012
main93241-15012
16 parts on this diagram · 1 diagram in section
