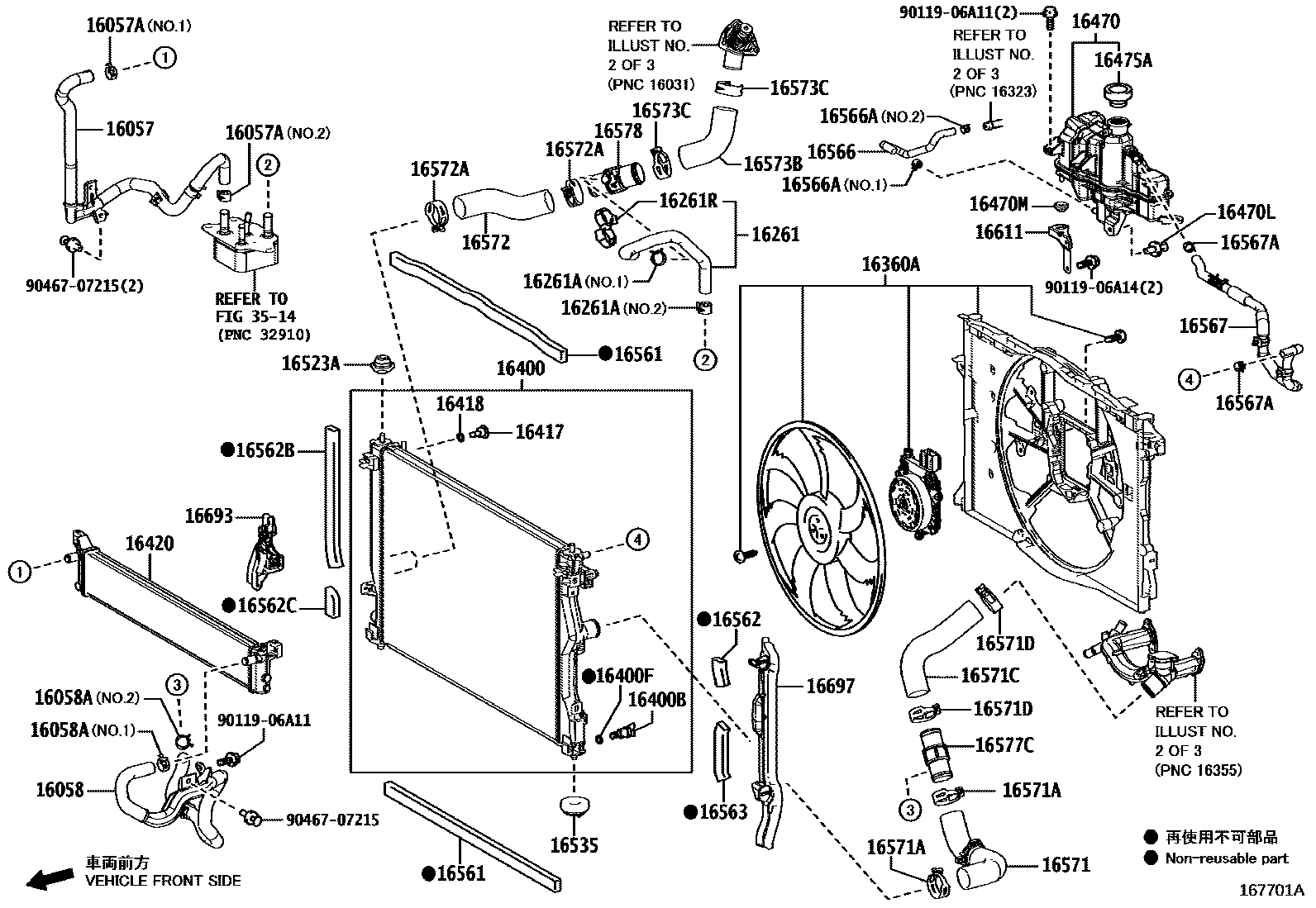

RADIATOR & WATER OUTLET
16057HOSE SUB-ASSY, RADIATOR
16057ACLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16058HOSE SUB-ASSY, RADIATOR, NO.2
16058ACLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16261RCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16360AFAN ASSY, W/MOTOR
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16417COCK
16418PACKING
16420RADIATOR ASSY, SUB
16470TANK ASSY, RADIATOR RESERVE
16470LCLIP(FOR RADIATOR RESERVE TANK)
16470MGROMMET
16475ACAP, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
16562BSEAL, RADIATOR TO SUPPORT, NO.4
16562CSEAL, RADIATOR TO SUPPORT, NO.5
16563SEAL, RADIATOR TO SUPPORT, NO.3
16566HOSE, RESERVE TANK OUTLET
16566ACLIP(FOR RESERVE TANK OUTLET)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577CPIPE, RADIATOR
16578PIPE, RADIATOR, NO.2
16611BRACKET, RADIATOR RESERVE TANK
16693PLATE, RADIATOR SIDE AIR GUIDE, RR RH
16697PLATE, RADIATOR SIDE AIR GUIDE, RR LH
3514
9011906A11
main90119-06A11
9011906A14
main90119-06A14
9046707215
main90467-07215
46 parts on this diagram · 3 diagrams in section
