HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

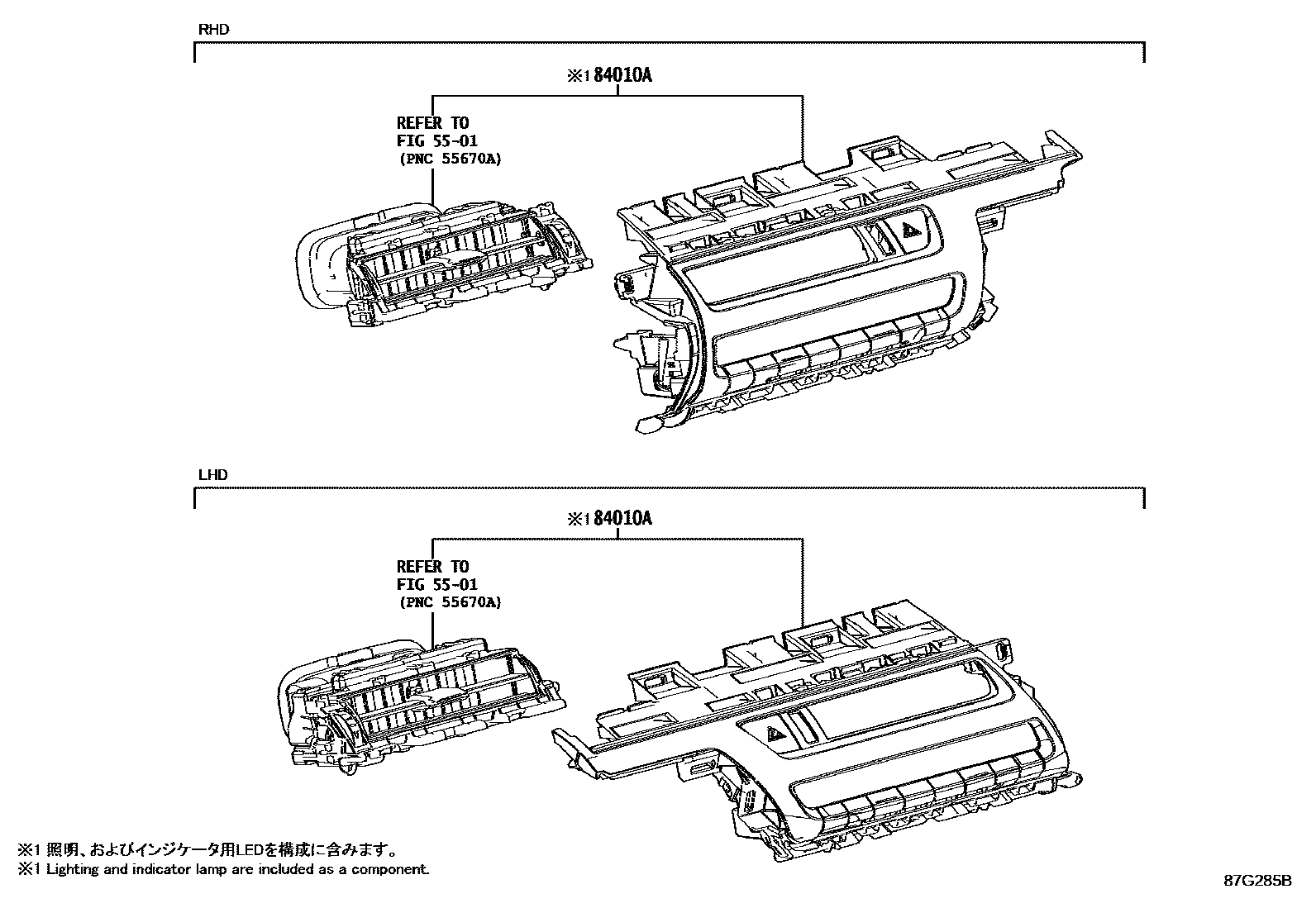

84010ACONTROL & PANEL ASSY, INTEGRATION

main84010-11050iGWZ100,URZ100..LHD201705-202111

main84010-11080iGWZ100,URZ100..RHD201705-202111

main84010-11090iGWZ100,URZ100..LHD202111

main84010-11110iGWZ100,URZ100..RHD202111

2 parts on this diagram · 5 diagrams in section
