WIRING & CLAMP

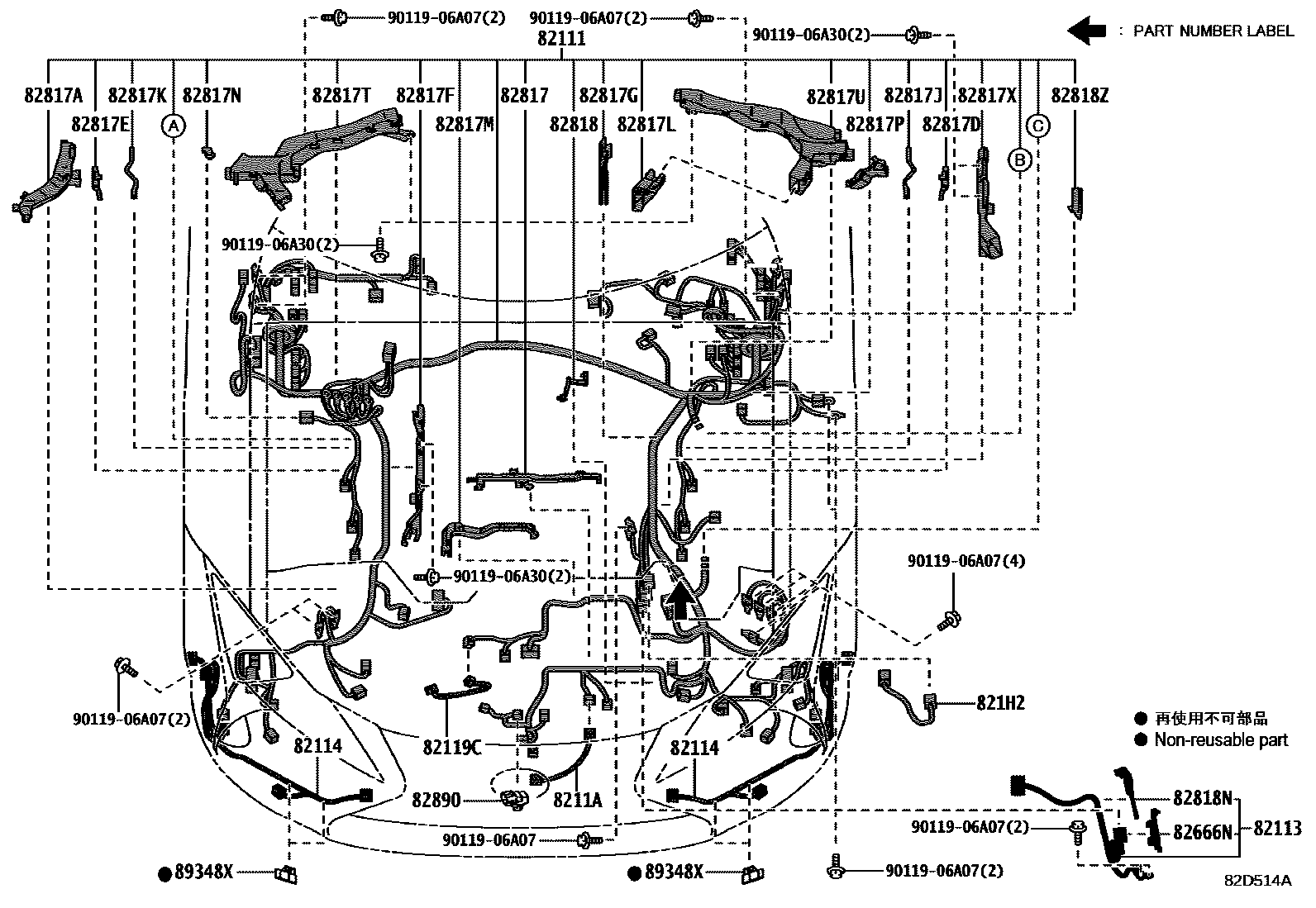

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-11030i201705-201707
REFER ILLUST.
main82111-11031i201707-202004
REFER ILLUST.
main82111-11032i202004-202110
REFER ILLUST.
main82111-11033i202111
REFER ILLUST.
main82111-11140i201705-201707
REFER ILLUST.
main82111-11141i201707-202004
REFER ILLUST.
main82111-11142i202004
REFER ILLUST.
main82111-11220i201705-201707
REFER ILLUST.
main82111-11221i201707-201906
REFER ILLUST.
main82111-11222i201906-202004
REFER ILLUST.
main82111-11223i202004
REFER ILLUST.
main82111-11430i201705-201707
REFER ILLUST.
main82111-11431i201707-201906
REFER ILLUST.
main82111-11432i201906-202004
REFER ILLUST.
main82111-11433i202004
REFER ILLUST.
82113WIRE, ENGINE ROOM, NO.3
main82113-11010i201705
main82113-50110i201705
main82113-50130i201705
82114WIRE, ENGINE ROOM, NO.4
main82114-11020i201705
82119CWIRE, ENGINE ROOM, NO.5
main82119-11040i201705
8211AWIRE, ENGINE ROOM, NO.6
main8211A-11010i201705
PRE-COLLISION SYSTEM-WITHOUT
main8211A-11010i201705
ICELAND SPEC
main8211A-11010i201705
RUSSIA SPEC
main8211A-11010i201705
AZERBAIJAN,GEORGIA SPEC
main8211A-11010i201705
KAZAKHSTAN SPEC
821H2WIRE, HV AIR CONDITIONER
main821H2-50040i201705-201801
main821H2-50041i201802
82666NHOLDER, CONNECTOR NO.10
main82666-50A20i201705
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-11670i201705
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-11740i201705
82817DPROTECTOR, WIRING HARNESS, NO.5
main82817-50P80i201705
82817EPROTECTOR, WIRING HARNESS, NO.6
main82817-50P90i201705
82817FPROTECTOR, WIRING HARNESS, NO.7
main82817-50Q10i201705
82817GPROTECTOR, WIRING HARNESS, NO.8
main82817-50Q50i201705
main82817-50Q60i201705
82817JPROTECTOR, WIRING HARNESS, NO.9
main82817-50Z70i201705
82817KPROTECTOR, WIRING HARNESS, NO.10
main82817-50Z80i201705
82817LPROTECTOR, WIRING HARNESS, NO.11
main82817-11770i201705
main82817-50Q30i201705
82817MPROTECTOR, WIRING HARNESS, NO.12
main82817-50N50i201705
main82817-50Z60i201705
82817NPROTECTOR, WIRING HARNESS, NO.13
main82817-5AA50i201705
main82817-5AA60i201705
main82817-5AA70i201705
82817PPROTECTOR, WIRING HARNESS, NO.14
main82817-5AD60i201705
main82817-5AD70i201705
82817TPROTECTOR, WIRING HARNESS, NO.15
main82817-50M50i201705
main82817-50N00i201705
main82817-50N10i201705
82817UPROTECTOR, WIRING HARNESS, NO.16
main82817-50M90i201705
main82817-50N20i201705
main82817-50N21i201705
82817XPROTECTOR, WIRING HARNESS, NO.17
main82817-50Q40i201705
main82817-5AD80i201705
82818PROTECTOR, WIRING HARNESS, NO.2
main82817-11700i201705
82818NPROTECTOR, WIRING HARNESS, NO.14
main82817-5AE30i201705
82818ZPROTECTOR, WIRING HARNESS, NO.22
main82817-12860i201705
82890CONNECTOR ASSY, WIRING HARNESS
main82890-11010
89348XCLIP, ULTRASONIC SENSOR, FRONT
main89348-50050i201705
9011906A07
main90119-06A07
9011906A30
main90119-06A30

29 parts on this diagram · 28 diagrams in section
