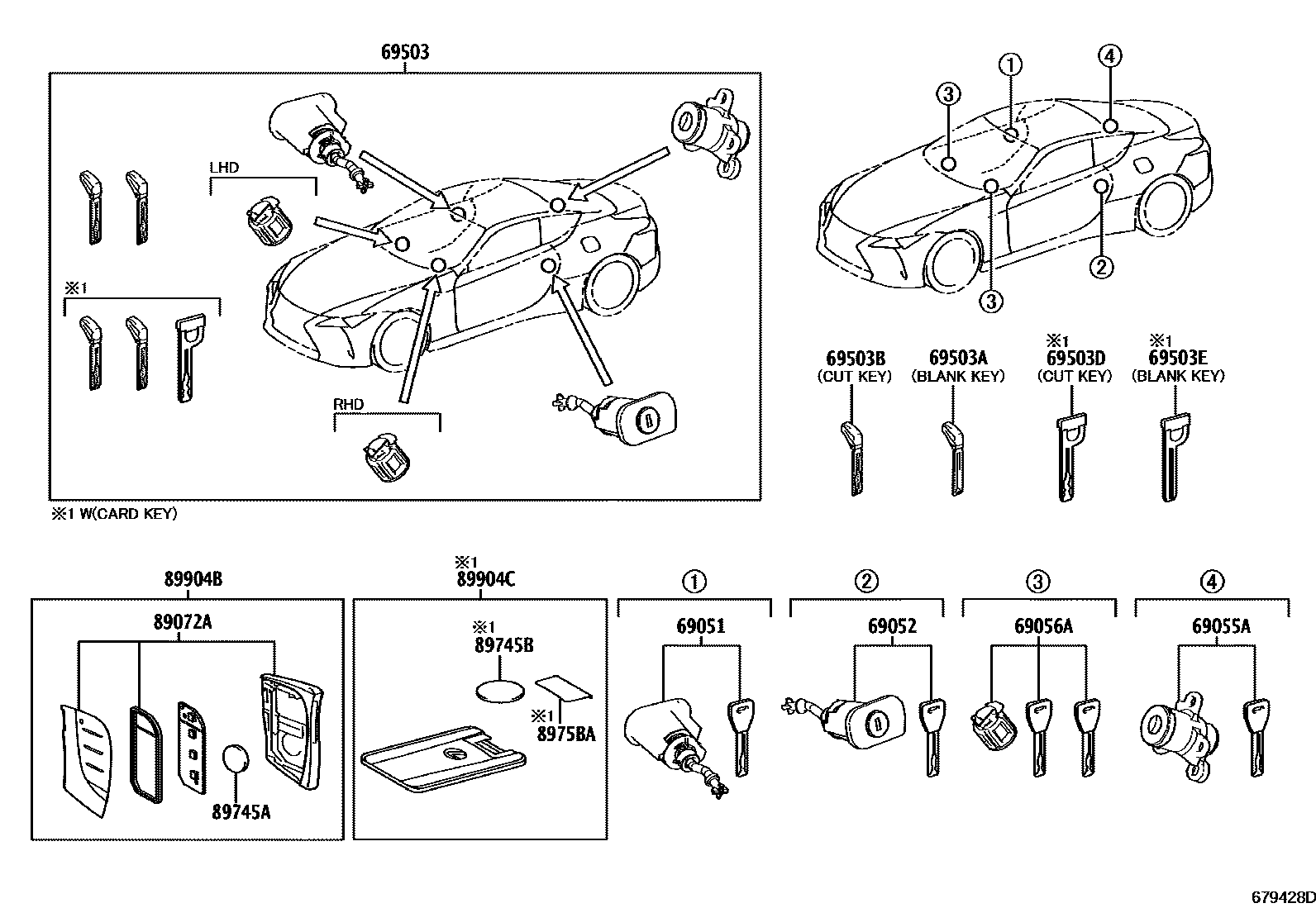

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-11080iGWZ100,URZ100201705

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-11080iGWZ100,URZ100201705

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-11020iGWZ100,URZ100201705

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iGWZ100,URZ100201705

69503CYLINDER SET, LOCK

main69005-11060iGWZ100,URZ100201705

69503AKEY, BLANK

main69515-11020iGWZ100,URZ100201705

BLANK KEY

69503BKEY, CUT

main69515-11010iGWZ100,URZ100201705

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-11270iURZ100201705-202111

main89072-11280iGWZ100201705-202210

main89072-11380iURZ100202111

89745ABATTERY, TRANSMITTER

main89745-45010iGWZ100,URZ100201705-202004

CR2032

sub89745-50020

main89745-50020iGWZ100,URZ100202004

CR2032

89745BBATTERY, TRANSMITTER(CARD KEY)

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-11050iURZ100201705-202004

main89904-11250iGWZ100201705-202004

main89904-11730iURZ100202004-202110

sub89904-11731

main89904-11731iURZ100202111-202202

main89904-11732iURZ100202203-202210

main89904-11733iGWZ100,URZ100202210-202212

sub89904-11734

main89904-11734iGWZ100,URZ100202301

main89904-11740iGWZ100202004-202202

main89904-11741iGWZ100202203-202210

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

15 parts on this diagram · 1 diagram in section
