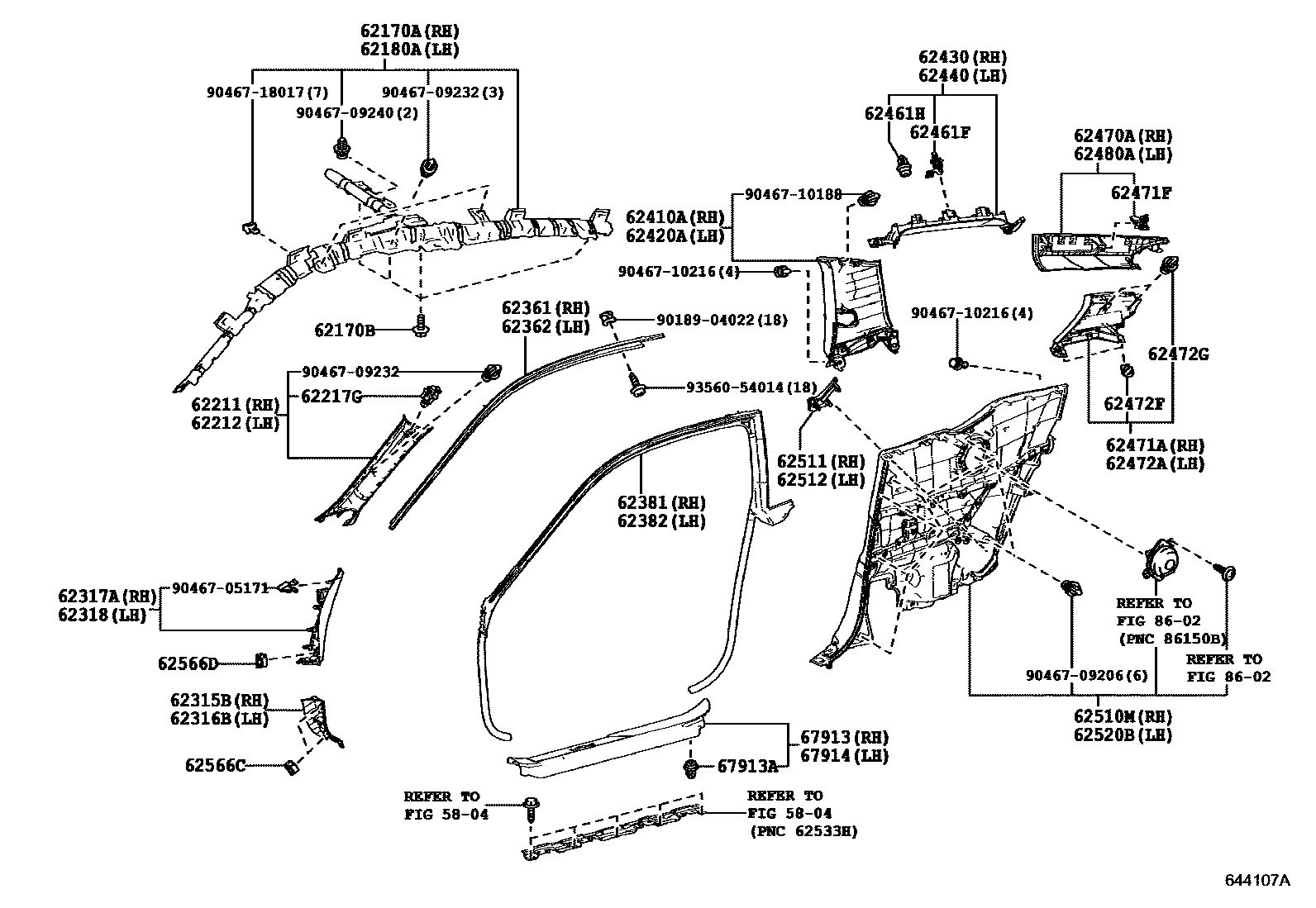

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
5804
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
BLACK/IVORY,TRIM2#,3#
OCHRE(BELEZA)/IVORY,TRIM4#
62212GARNISH, FRONT PILLAR, LH
BLACK/IVORY,TRIM2#,3#
OCHRE(BELAZA)/IVORY,TRIM4#
62217GCLIP, FRONT PILLAR GARNISH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM2#,3#,42
OCHRE,TRIM40
KUROKOHAKU,TRIM41
BLUE,TRIM8#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM2#,3#,42
OCHRE,TRIM40
KUROKOHAKU,TRIM41
BLUE,TRIM8#
62317ACOVER, FRONT DOOR OPENING TRIM, NO.2 RH
BLACK,TRIM2#,3#,42
OCHRE,TRIM40
BLACK,TRIM2#,3#,42
OCHRE,TRIM40
62318COVER, FRONT DOOR OPENING TRIM, NO.2 LH
BLACK,TRIM2#,3#,42
OCHRE,TRIM40
BLACK,TRIM2#,3#,42
OCHRE,TRIM40
62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
62410AGARNISH ASSY, CENTER PILLAR, RH
BLACK,TRIM2#,3#
OCHRE,TRIM4#
62420AGARNISH ASSY, CENTER PILLER, LH
BLACK,TRIM2#,3#
OCHRE,TRIM4#
62430GARNISH ASSY, ROOF SIDE RAIL, RH
BLACK,TRIM2#,3#
OCHRE,TRIM4#
62440GARNISH ASSY, ROOF SIDE RAIL, LH
BLACK,TRIM2#,3#
OCHRE,TRIM4#
62461FCLIP (FOR ROOF SIDE TRIM GARNISH)
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
BLACK/IVORY,TRIM2#,3#
OCHRE(BELEZA),TRIM4#
62471AGARNISH, ROOF SIDE, INNER RH
BLACK,TRIM2#,3#
OCHRE,TRIM4#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
BLACK,TRIM2#,3#
OCHRE,TRIM4#
62472FCLIP(FOR REAR PILLAR GARNISH)
62472GCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
BLACK/IVORY,TRIM2#,3#
OCHRE(BELEZA),TRIM4#
62510MPANEL ASSY, QUARTER TRIM, RH
DK.ROSE,TRIM3#
BLACK,TRIM20,21,22
BLACK,TRIM2#
BLACK/YELLOW,TRIM21
BLACK/RED,TRIM3#
BLACK/ORANGE,TRIM42
OCHRE,TRIM40
OCHRE,TRIM4#
KUROKOHAKU,TRIM41
BLUE,TRIM8#
BLACK,TRIM2#
BLACK/RED,TRIM3#
BLACK/ORANGE,TRIM42
OCHRE,TRIM40
62511BOARD, QUARTER INSIDE TRIM, RH
BLACK,TRIM2#,3#,42
OCHRE,TRIM40
KUROKOHAKU,TRIM41
BLUE,TRIM8#
62512BOARD, QUARTER INSIDE TRIM, LH
BLACK,TRIM2#,3#,42
OCHRE,TRIM40
KUROKOHAKU,TRIM41
BLUE,TRIM8#
62520BPANEL ASSY, QUARTER TRIM, LH
DK.ROSE,TRIM3#
BLACK,TRIM2#
BLACK,TRIM20,21,22
BLACK/YELLOW,TRIM21
BLACK/RED,TRIM3#
BLACK/ORANGE,TRIM42
OCHRE,TRIM4#
OCHRE,TRIM40
KUROKOHAKU,TRIM41
BLUE,TRIM8#
BLACK,TRIM2#
BLACK/RED,TRIM3#
BLACK/ORANGE,TRIM42
OCHRE,TRIM40
62566CCLAMP, COWL SIDE TRIM
62566DCLAMP, FRONT DOOR OPENING TRIM COVER
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#,3#
BLACK/ORANGE,TRIM42
"S PACKAGE"&SCUFF PLATE-CFRP,OCHRE,TRIM4#
PERSONAL PACKAGE&SCUFF PLATE-CFRP,OCHRE,TRIM4#
OCHRE,TRIM4#
OCHRE,TRIM40
BLUE,TRIM8#
"S PACKAGE"&SCUFF PLATE-CFRP,BLUE,TRIM8#
PERSONAL PACKAGE&SCUFF PLATE-CFRP,BLUE,TRIM8#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#,3#
BLACK/ORANGE,TRIM42
"S PACKAGE"&SCUFF PLATE-CFRP,OCHRE,TRIM4#
PERSONAL PACKAGE&SCUFF PLATE-CFRP,OCHRE,TRIM4#
OCHRE,TRIM4#
OCHRE,TRIM40
PERSONAL PACKAGE&SCUFF PLATE-CFRP,BLUE,TRIM8#
BLUE,TRIM8#
"S PACKAGE"&SCUFF PLATE-CFRP,BLUE,TRIM8#
8602
9018904022
main90189-04022
9046705171
main90467-05171
9046709206
main90467-09206
9046709232
main90467-09232
9046709240
main90467-09240
9046710188
main90467-10188
9046710216
main90467-10216
9046718017
main90467-18017
9356054014
main93560-54014
47 parts on this diagram · 1 diagram in section
