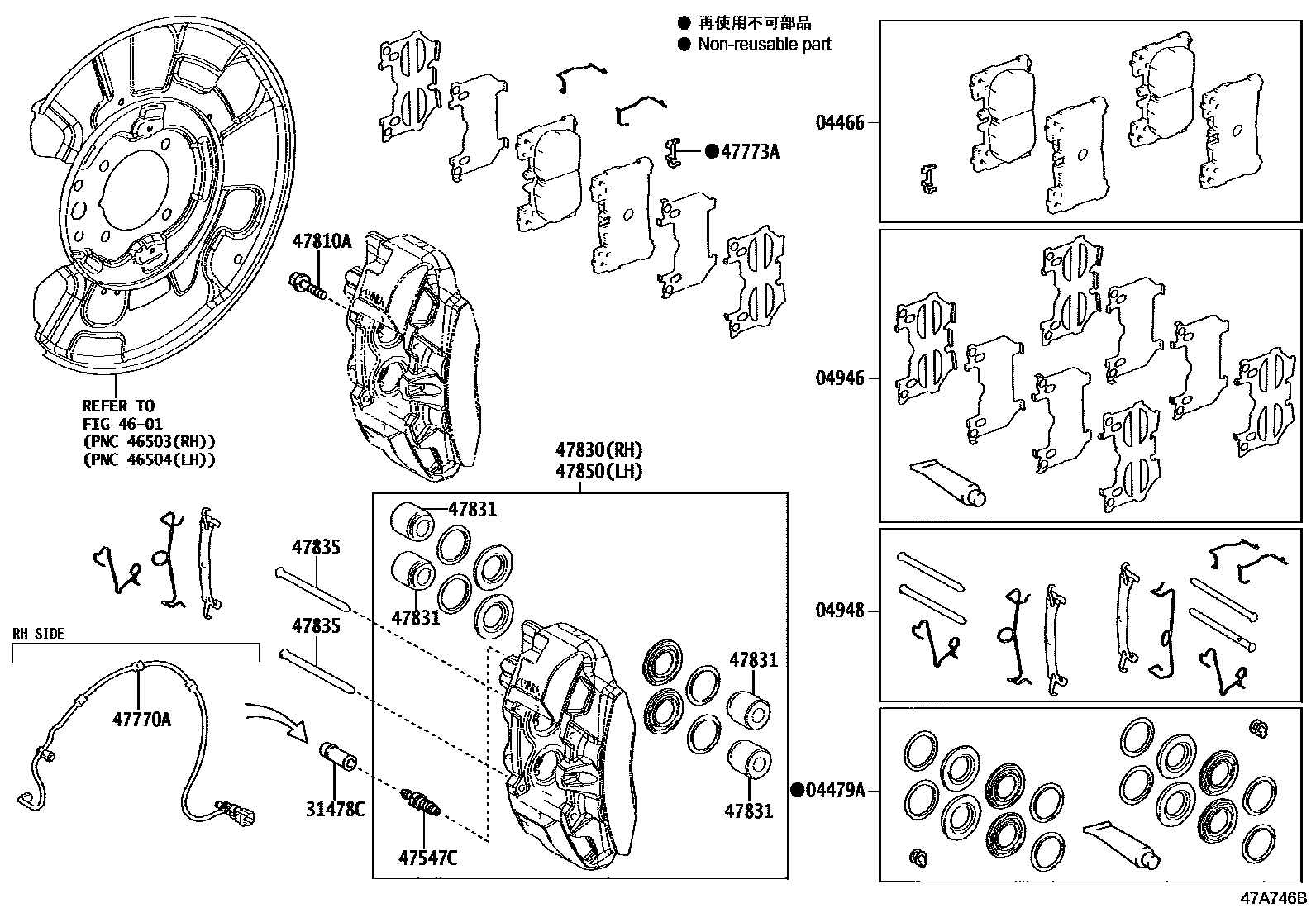

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-11010iGWZ100,URZ100201705

MARK AK NS380H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-11010iGWZ100,URZ100201705

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-11010iGWZ100,URZ100201705

04948FITTING KIT, DISC BRAKE, REAR

main04948-11010iGWZ100,URZ100201705

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010iGWZ100,URZ100201705

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010iGWZ100,URZ100201705

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-11020iGWZ100,URZ100201705

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030iGWZ100,URZ100201705

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12396iGWZ100,URZ100201705

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-11010iGWZ100,URZ100201705

47831PISTON, REAR DISC BRAKE

main47831-11010iGWZ100,URZ100201705

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-50140iGWZ100,URZ100201705

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-11010iGWZ100,URZ100201705

14 parts on this diagram · 1 diagram in section
