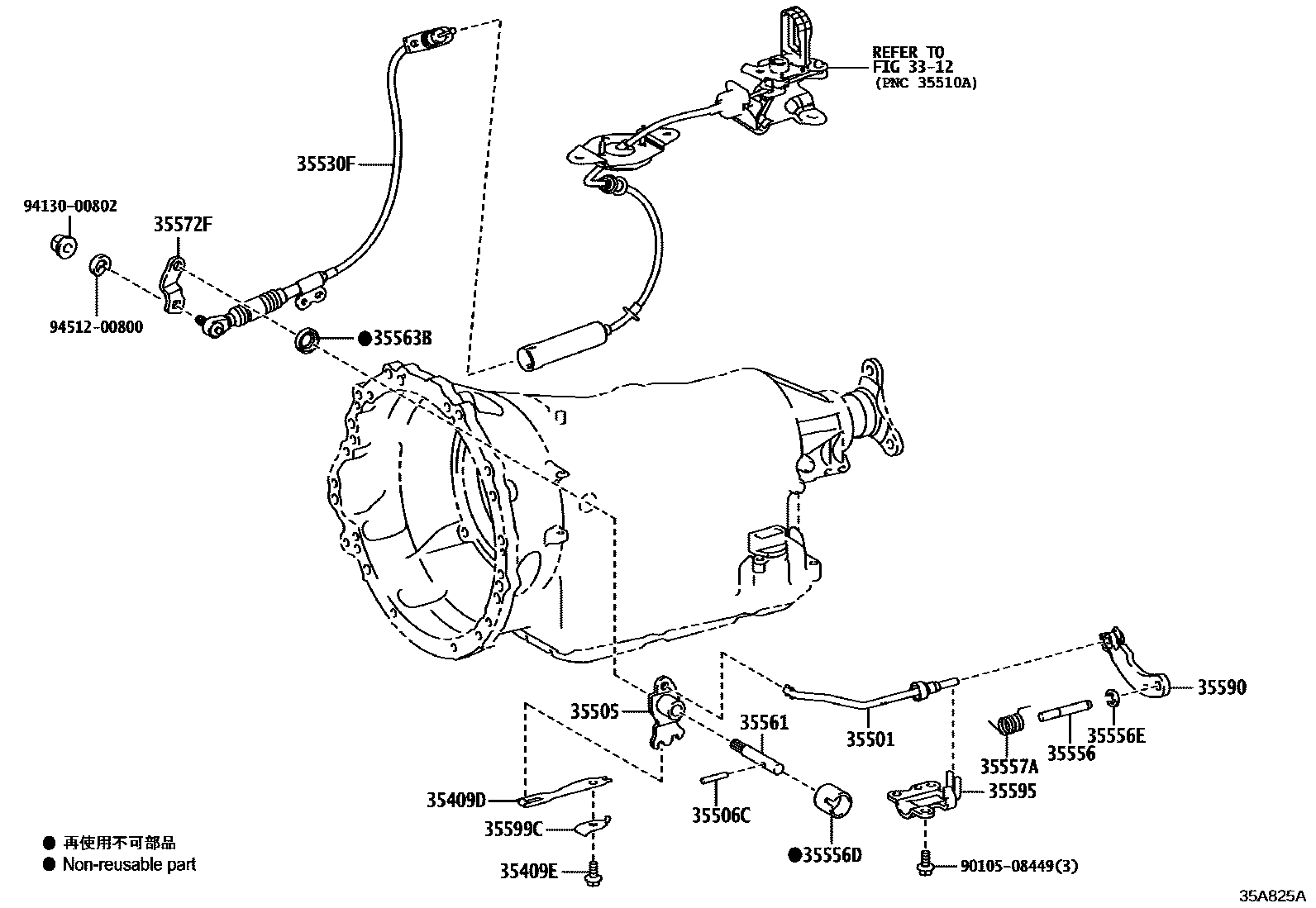

THROTTLE LINK & VALVE LEVER (ATM)
3312SHIFT LEVER & RETAINER
35409DSPRING SUB-ASSY, MANUAL DETENT
35409EBOLT(FOR MANUAL DETENT SPRING)
35505LEVER SUB-ASSY, MANUAL VALVE
35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
35530FROD ASSY, THROTTLE LINK CONNECTING
35556SHAFT, PARKING LOCK PAWL
35556DSPACER (FOR PARKING LOCK PAWL SHAFT)
35556ERING, E (FOR PARKING LOCK PAWL SHAFT)
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35561SHAFT, MANUAL VALVE LEVER
35563BSEAL, SHIFT CONTROL ACTUATOR
35572FLEVER, TRANSMISSION, OUTER
35590PAWL ASSY, PARKING LOCK
35595BRACKET, PARKING LOCK PAWL
35599CCOVER, MANUAL DETENT SPRING
9010508449
main90105-08449
9413000802
main94130-00802
9451200800
main94512-00800
20 parts on this diagram · 1 diagram in section
