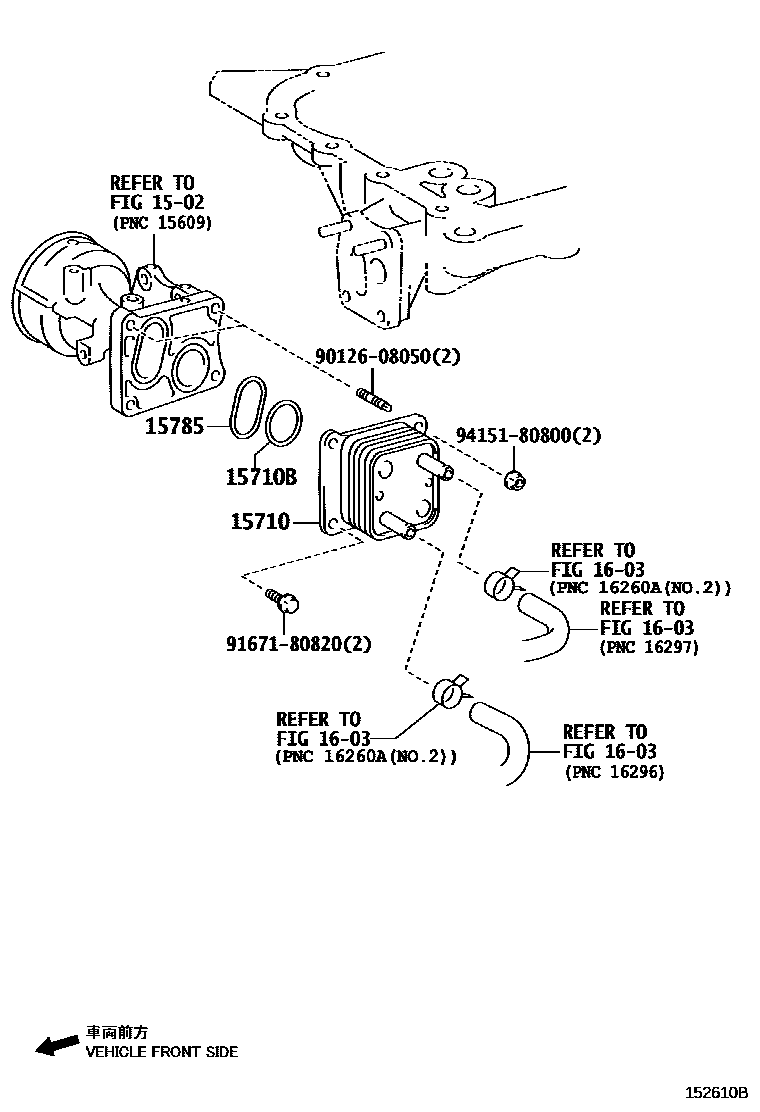

ENGINE OIL COOLER

0001 1 0002 1

1502OIL FILTER

→ Go to FIG 15-02

15710COOLER ASSY, OIL

main15700-38050i2URGSE..URZ100201705

main15710-31080i8GRFXS..GWZ100..RHD201906

INDIA SPEC

15710BRING, O(FOR OIL COOLER)

main90301-67004i2URGSE..URZ100201705

main15785-31050i8GRFXS..GWZ100..RHD201906

INDIA SPEC

15785GASKET, OIL COOLER

main15785-31060i8GRFXS..GWZ100..LHD202004

UKRAINE SPEC

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9012608050

main90126-08050

9167180820

main91671-80820

9415180800

main94151-80800

8 parts on this diagram · 2 diagrams in section
