REAR SEAT & SEAT TRACK

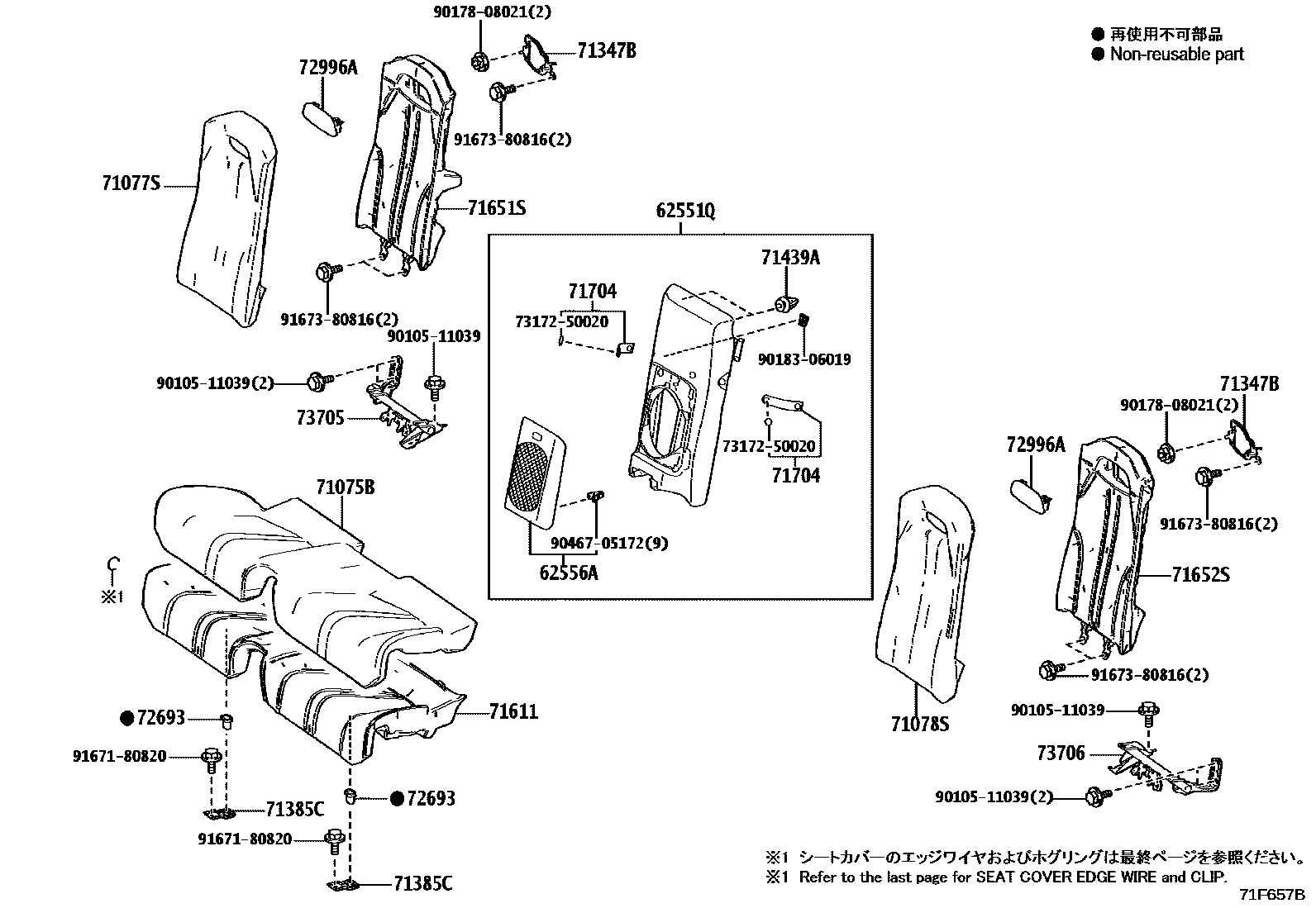

Parts diagram
62551QGARNISH, REAR SEAT SIDE
main62551-11050-A2i202305
WHITE,TRIM0#
main62551-11050-C1i202305
BLACK,TRIM2#,3#
main62551-11050-E1i202305-202403
OCHER,TRIM4#
main62551-11050-J1i202309-202409
BLUE,TRIM8#
main62551-11070-A0supersedes 62551-11060-A0i202305
AUDIO-FM & 13SPEAKER,WHITE,TRIM0#; WHITE,TRIM0#
main62551-11070-C1supersedes 62551-11060-C1i202305
AUDIO-FM & 13SPEAKER,BLACK,TRIM2#,3#; BLACK,TRIM2#,3#
main62551-11070-E1supersedes 62551-11060-E1i202305
AUDIO-FM & 13SPEAKER,OCHER,TRIM4#; OCHER,TRIM4#
main62551-11070-J0supersedes 62551-11060-J0i202309-202409
AUDIO-FM & 13SPEAKER,BLUE,TRIM8#; BLUE,TRIM8#
62556ACAP, REAR SEAT SIDE GARNISH
main62556-11040-A1i202305
WHITE,TRIM0#
main62556-11040-C1i202305
BLACK,TRIM2#,3#
main62556-11040-E1i202305
OCHER,TRIM4#
main62556-11040-J1i202309-202403
BLUE,TRIM8#
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-11120-29i202305
DK. ROSE,TRIM3#
main71075-11120-A1i202305
WHITE,TRIM0#
main71075-11120-C5i202305
BLACK,TRIM2#
main71075-11120-E8i202305
LT. OCHRE,TRIM4#
main71075-11180-A1i202305-202403
WHITE,TRIM0#
main71075-11180-C0i202305-202403
BLACK,TRIM2#
main71075-11180-D1i202305-202403
DK.ROSE,TRIM3#
main71075-11180-E0i202305-202403
LT.OCHRE,TRIM4#
main71075-11180-J0i202309-202403
BLUE,TRIM8#
main71075-11130-23i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK,ROSE,TRIM3#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,DK,ROSE,TRIM3#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK,ROSE,TRIM3#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,DK,ROSE,TRIM3#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,DK,ROSE,TRIM3#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),DK,ROSE,TRIM3#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,DK,ROSE,TRIM3#
main71075-11130-C9i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,BLACK,TRIM2#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,BLACK,TRIM2#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLACK,TRIM2#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK,TRIM2#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,BLACK,TRIM2#
main71075-11130-E2i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHER,TRIM4#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,OCHER,TRIM4#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHER,TRIM4#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,OCHER,TRIM4#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,OCHER,TRIM4#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),OCHER,TRIM4#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,OCHER,TRIM4#
main71075-11130-J1i202309-202409
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; IE 24MY&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#; IE 24MY&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; IE 24MY&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLUE,TRIM8#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main71075-11150-22supersedes 71075-11140-25i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#
main71075-11150-C8supersedes 71075-11140-C4i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,BLACK,TRIM2#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLACK,TRIM2#
main71075-11150-E2supersedes 71075-11140-E6i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#
main71075-11150-J1i202309-202409
"S PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; IE 24MY&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main71075-11190-A0i202305
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#; "S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S PACKAGE"& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; PERSONAL PACKAGE& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#; PERSONAL PACKAGE& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; PERSONAL PACKAGE& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
main71075-11200-A0supersedes 71075-11140-A0i202305
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-11110-A4i202305
WHITE,TRIM0#
main71077-11110-C5i202305
BLACK/LT.GRAY,TRIM2#
main71077-11110-D6i202305
DK. ROSE,TRIM3#
main71077-11110-E5i202305
LT.OCHRE,TRIM4#
main71077-11180-A2i202305
WHITE,TRIM0#
main71077-11180-C2i202305
BLACK,TRIM2#
main71077-11180-D2i202305
DK.ROSE,TRIM3#
main71077-11180-E2i202305
LT.OCHRE,TRIM4#
main71077-11180-J0i202305-202403
BLUE,TRIM8#
main71077-11120-C8i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK/LT.GRAY,TRIM2#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#
main71077-11120-D5i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),DK.ROSE,TRIM3#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#
main71077-11120-E2i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM4#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM4#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),LT.OCHRE,TRIM4#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#
main71077-11120-J1i202309-202409
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; IE 24MY&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#; IE 24MY&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; IE 24MY&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLUE,TRIM8#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main71077-11150-C7supersedes 71077-11140-C4i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#
main71077-11150-D4supersedes 71077-11140-D4i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#
main71077-11150-E2supersedes 71077-11140-E4i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#
main71077-11150-J1i202309-202409
"S PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; IE 24MY&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main71077-11190-A0i202305-202508
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#; "S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S PACKAGE"& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; PERSONAL PACKAGE& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#; PERSONAL PACKAGE& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; PERSONAL PACKAGE& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
main71077-11200-A0supersedes 71077-11140-A3i202305
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-11010-A4i202305
WHITE,TRIM0#
main71078-11010-C5i202305
BLACK/LT.GRAY,TRIM2#
main71078-11010-D6i202305
DK. ROSE,TRIM3#
main71078-11010-E5i202305
LT.OCHRE,TRIM4#
main71078-11070-A2i202305
WHITE,TRIM0#
main71078-11070-C2i202305
BLACK,TRIM2#
main71078-11070-D2i202305-202403
DK.ROSE,TRIM3#
main71078-11070-E2i202305-202403
LT.OCHRE,TRIM4#
main71078-11070-J0i202309-202403
BLUE,TRIM8#
main71078-11020-C8i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK/LT.GRAY,TRIM2#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#
main71078-11020-D5i202305-202410
IE 24MY&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#; IE 24MY&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#; IE 24MY&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#
main71078-11020-E2i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM4#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM4#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),LT.OCHRE,TRIM4#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#
main71078-11020-J1i202309-202409
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#; "S PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#; "S+ PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; IE 24MY&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#; IE 24MY&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; IE 24MY&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLUE,TRIM8#; PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main71078-11040-C7supersedes 71078-11030-C4i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#
main71078-11040-D4supersedes 71078-11030-D4i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#
main71078-11040-E2supersedes 71078-11030-E4i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#
main71078-11040-J1i202309-202409
"S PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; "S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#; IE 24MY&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main71078-11080-A0i202305-202508
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#; "S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S PACKAGE"& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; PERSONAL PACKAGE& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#; PERSONAL PACKAGE& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; PERSONAL PACKAGE& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
main71078-11090-A0supersedes 71078-11030-A3i202305
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#; "S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
71347BBRACKET, REAR SEATBACK STAY, NO.1
main71347-11030×2i202305-202403
71385CBRACKET, REAR SEAT CUSHION HOLDER
main71385-24010×2i202305-202403
71439ACLIP
main62217-13010×2i202305-202403
71611PAD, REAR SEAT CUSHION
main71503-11011i202305
main71503-11020i202305
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71507-11010i202305-202403
main71507-11020i202305-202403
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71508-11010i202305-202403
main71508-11020i202305-202403
71704BAND SUB-ASSY, REAR SIDE SEAT
main71704-11010-A1×2i202305
WHITE,TRIM0#
main71704-11010-C0×2i202305
BLACK,TRIM2#,3#
main71704-11010-E0×2i202305
OCHER,TRIM4#
main71704-11010-J0×2i202309-202409
BLUE/OCEAN BLUE,TRIM8#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i202305
72996ACOVER, REAR SEATBACK
main72996-11010-C1×2i202305
BLACK,TRIM03,2#,3#; BLACK,TRIM2#,3#
main72996-11010-E0×2i202305-202403
OCHRE,TRIM4#
main72996-11010-J0×2i202305
BLUE,TRIM0#; BLUE,TRIM0#,8#; BLUE,TRIM00,8#
main72996-11040-C1×2i202305
BLACK,TRIM2#
main72996-11030-C1×2i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#,3#
main72996-11030-E1×2supersedes 72996-11040-E1i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),OCHER,TRIM4#
main72996-11030-J1×2i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM0#,8#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-11010i202305
main73705-11020i202305
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-11010i202305-202403
main73706-11020i202305-202403
7317250020CAP, FRONT SHOULDER BELT HANGER
main73172-50020
9010511039
main90105-11039
9017808021
main90178-08021
9018306019
main90183-06019
9046705172
main90467-05172
9167180820
main91671-80820
9167380816
main91673-80816

23 parts on this diagram · 3 diagrams in section
