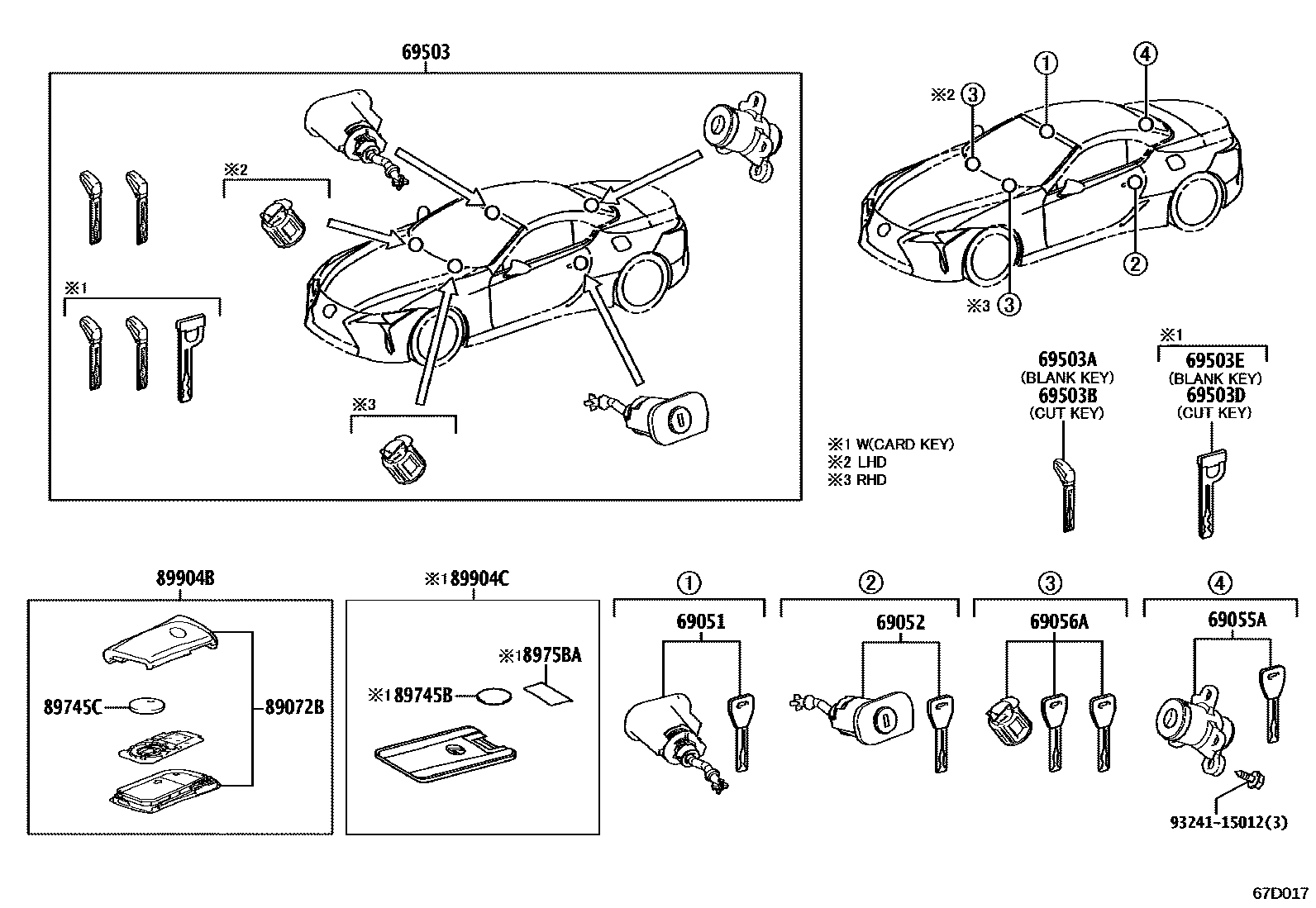

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-11070iGWZ100,URZ100..GCC,GEN202305

main69051-11080iGWZ100,URZ100..ARL,CHI202305-202403

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-11070iGWZ100,URZ100..GCC,GEN202305

main69052-11080iGWZ100,URZ100..ARL,CHI202305-202403

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-11020iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iGWZ100,URZ100..EUR202305-202403

69503CYLINDER SET, LOCK

main69005-11050iGWZ100,URZ100..GCC,GEN202305

main69005-11060iGWZ100,URZ100..ARL,CHI202305-202403

69503AKEY, BLANK

main69515-11020iGWZ100,URZ100..EUR202305-202403

BLANK KEY

main69515-11020iGWZ100,URZ100..ARL,CHI202305

BLANK KEY,CARD KEY-WITH

69503BKEY, CUT

main69515-11010iGWZ100,URZ100..EUR202305-202403

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-11270iURZ100..RHD..CONV..EUR202305-202403

INDIA SPEC

main89072-11290iGWZ100,URZ100..ARL,GCC,GEN202305

main89072-11380iGWZ100..CHI202305

MALAYSIA SPEC

main89072-11380iGWZ100..EUR;URZ100..LHD..EUR;URZ100..RHD..CP..EUR202305-202403

CYPRUS SPEC

main89072-11380iGWZ100..EUR;URZ100..LHD..EUR;URZ100..RHD..CP..EUR202305-202403

IRELAND SPEC

main89072-11380iGWZ100..EUR;URZ100..LHD..EUR;URZ100..RHD..CP..EUR202305-202403

MALTA SPEC

89745BBATTERY, TRANSMITTER(CARD KEY)

89745CBATTERY, TRANSMITTER

main89745-50020iGWZ100,URZ100..EUR202305-202403

CR2032

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-11030iGWZ100..EUR;URZ100..LHD..EUR;URZ100..RHD..CP..EUR202305-202403

IRELAND SPEC

main8990H-11030iGWZ100..EUR;URZ100..LHD..EUR;URZ100..RHD..CP..EUR202305-202403

MALTA SPEC

main8990H-11030iURZ100..RHD..CONV..EUR202305-202403

CYPRUS SPEC

main8990H-11030iGWZ100..CHI202305

MALAYSIA SPEC

main8990H-11040iURZ100..RHD..CONV..EUR202305-202403

main8990H-11070iGWZ100,URZ100..ARL,GCC202305

PHILIPPINE SPEC

main8990H-11080iGWZ100,URZ100..GEN202305

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

9324115012

main93241-15012

16 parts on this diagram · 1 diagram in section
