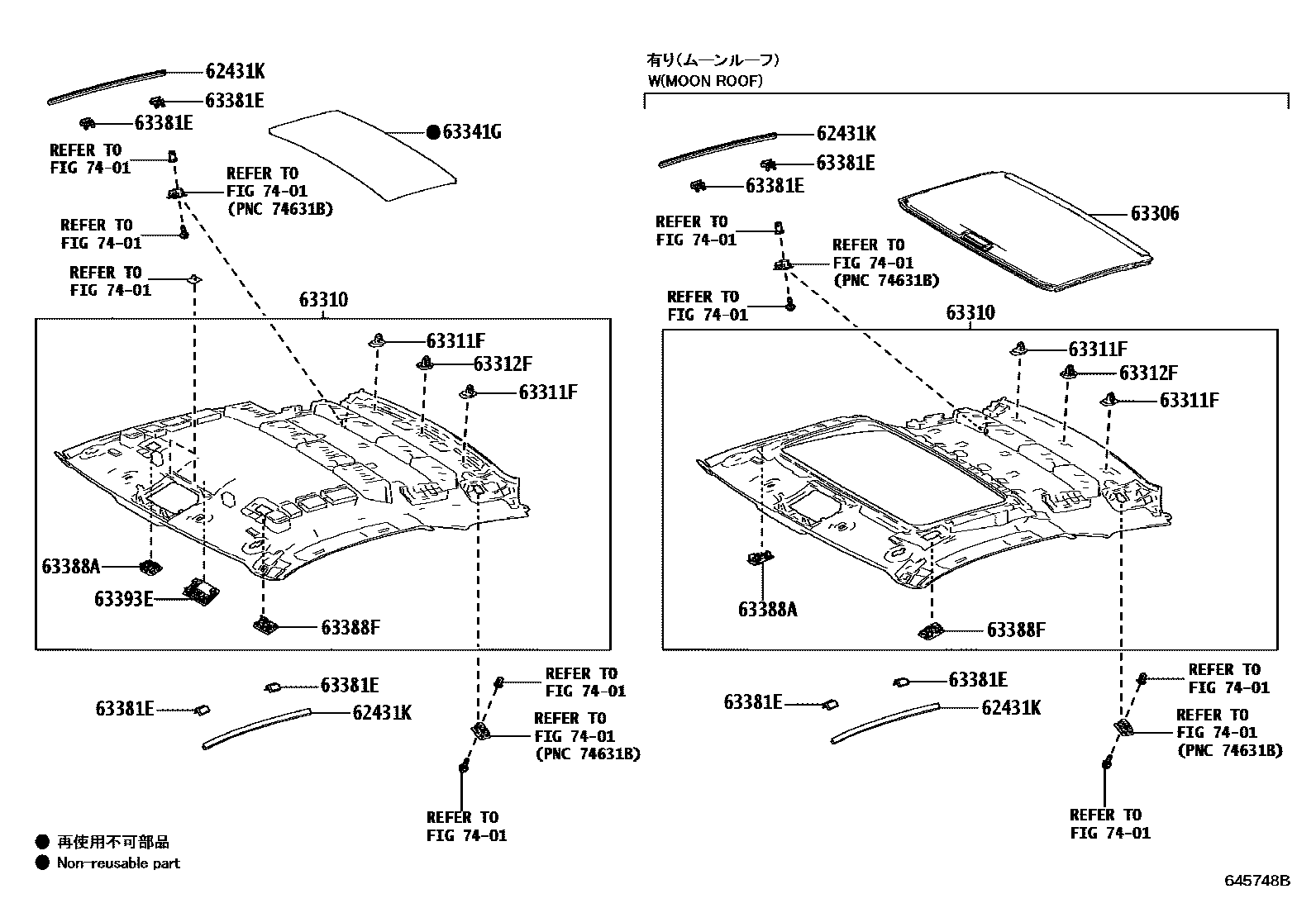

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

62431KGARNISH, ROOF SIDE RAIL

main62431-11010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202403

63306TRIM SUB-ASSY, SUNSHADE

main63306-11010-A0iGWZ100,URZ100..CP..EUR202305-202403

WHITE,TRIM0#

main63306-11010-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

"S PACKAGE",WHITE,TRIM0#

main63306-11010-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

"S+ PACKAGE",WHITE,TRIM0#

main63306-11010-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

"S+ PACKAGE"&ROOF HEADLINING-ALCANTARA,WHITE,TRIM0#

main63306-11010-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

BLUE&WHITE PACKAGE,WHITE,TRIM0#

main63306-11010-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF-CFRP ROOF,WHITE,TRIM0#

main63306-11010-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,WHITE,TRIM0#

main63306-11010-C0iGWZ100,URZ100..CP..(ARL,GCC)202305-202403

BLACK,TRIM2#,3#

main63306-11010-C0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

"S PACKAGE",BLACK,TRIM2#,3#

main63306-11010-C0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

"S+ PACKAGE",BLACK,TRIM2#,3#

main63306-11010-C0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

"S+ PACKAGE"&ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#

main63306-11010-C0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF-CFRP ROOF,BLACK,TRIM2#,3#

main63306-11010-C0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#

main63306-11010-E0iGWZ100,URZ100..CP..(ARL,GCC)202305

ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,OCHRE,TRIM4#

main63306-11010-E0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305-202403

OCHRE,TRIM4#

main63306-11010-E0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

"S PACKAGE",OCHRE,TRIM4#

main63306-11010-E0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

"S+ PACKAGE",OCHRE,TRIM4#

main63306-11010-E0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

"S+ PACKAGE"&ROOF HEADLINING-ALCANTARA,OCHRE,TRIM4#

main63306-11010-E0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF-CFRP ROOF,OCHRE,TRIM4#

main63306-11020-C1iGWZ100,URZ100..CP..GEN202305

"S PACKAGE"& BLUE&WHITE PACKAGE&ROOF-CFRP ROOF,BLACK,TRIM2#,3#

main63306-11020-C1iGWZ100,URZ100..CP..GEN202305

BLACK,TRIM2#,3#

main63306-11020-C1iGWZ100,URZ100..CP..GEN202305

"S+ PACKAGE"& BLUE&WHITE PACKAGE&ROOF-CFRP ROOF,BLACK,TRIM2#,3#

main63306-11020-C1iGWZ100,URZ100..CP..GEN202305

"S+ PACKAGE"&ROOF-CFRP ROOF,BLACK,TRIM2#,3#

main63306-11020-C1iGWZ100,URZ100..CP..GEN202305

PERSONAL PACKAGE& BLUE&WHITE PACKAGE&ROOF-CFRP ROOF,BLACK,TRIM2#,3#

main63306-11020-C1iGWZ100,URZ100..CP..GEN202305

PERSONAL PACKAGE&ROOF-CFRP ROOF,BLACK,TRIM2#,3#

main63306-11020-C1iGWZ100,URZ100..CP..GEN202305

ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#

main63306-11020-C1iGWZ100,URZ100..CP..GEN202305

IE 24MY& SPECIAL PACKAGE(26MY)&ROOF-CFRP ROOF,BLACK,TRIM2#,3#

main63306-11020-E1iURZ100..CP..GEN202305

"S+ PACKAGE"& BLUE&WHITE PACKAGE&ROOF-CFRP ROOF,OCHRE,TRIM4#

main63306-11020-E1iGWZ100,URZ100..CP..GEN202305

"S PACKAGE"& BLUE&WHITE PACKAGE&ROOF-CFRP ROOF,OCHRE,TRIM4#

main63306-11020-E1iGWZ100,URZ100..CP..GEN202305

"S+ PACKAGE"&ROOF-CFRP ROOF,OCHRE,TRIM4#

main63306-11020-E1iGWZ100,URZ100..CP..GEN202305

PERSONAL PACKAGE& BLUE&WHITE PACKAGE&ROOF-CFRP ROOF,OCHRE,TRIM4#

main63306-11020-E1iGWZ100,URZ100..CP..GEN202305

PERSONAL PACKAGE&ROOF-CFRP ROOF,OCHRE,TRIM4#

main63306-11020-E1iGWZ100,URZ100..CP..GEN202305

ROOF HEADLINING-ALCANTARA,OCHRE,TRIM4#

main63306-11020-E1iGWZ100,URZ100..CP..GEN202305

IE 24MY& SPECIAL PACKAGE(26MY)&ROOF-CFRP ROOF,OCHRE,TRIM4#

main63306-11020-E1iGWZ100,URZ100..CP..GEN202305

OCHRE,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-11011-A0iGWZ100,URZ100..CP..EUR202305-202403

WHITE,TRIM0#

main63310-11011-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

BLUE&WHITE PACKAGE,WHITE,TRIM0#

main63310-11011-C6iGWZ100,URZ100..CP..EUR202305-202403

BLACK,TRIM2#,3#

main63310-11011-E5iGWZ100,URZ100..CP..EUR202305-202403

OCHER,TRIM4#

main63310-11021-C6iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#

main63310-11021-C6iGWZ100,URZ100..CP..GEN202305

BLACK,TRIM2#,3#

main63310-11021-E5iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF HEADLINING-ALCANTARA,OCHER,TRIM4#

main63310-11021-E5iGWZ100,URZ100..CP..GEN202305

OCHER,TRIM4#

main63311-11060-A0iURZ100..CONV..EUR202305-202403

CREAM,TRIM0#

main63311-11060-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM2#,3#

main63311-11060-E0iURZ100..CONV..EUR202305-202403

CARAMEL,TRIM4#

main63311-11060-J0iURZ100..CONV..EUR202309-202409

BLUE,TRIM8#

63311FCLIP, ROOF HEADLINING, NO.1

main90467-09126iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202403

63312FCLIP, ROOF HEADLINING, NO.2

main90467-10181iGWZ100,URZ100..CP..EUR202305-202403

63341PAD, ROOF SILENCER, NO.1

main63341-11030iURZ100..CONV..EUR202305-202403

63341GPAD, ROOF SILENCER

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main61365-11020iURZ100..CONV..EUR202305-202403

main63381-11010iGWZ100,URZ100..CP..EUR202305-202403

63388ACOVER, ROOF HEADLINING HOLDER

main63388-11011-A0iGWZ100,URZ100..CP..GEN202305

BLUE&WHITE PACKAGE,WHITE,TRIM0#

main63388-11011-A0iGWZ100,URZ100..CP..EUR202305-202403

WHITE,TRIM0#

main63388-11011-C5iGWZ100,URZ100..CP..EUR202305-202403

BLACK,TRIM2#,3#

main63388-11011-E2iGWZ100,URZ100..CP..EUR202305-202403

OCHER,TRIM4#

63388FCOVER, ROOF HEADLINING HOLDER, LH

main63388-11021-A0iGWZ100,URZ100..CP..GEN202305

BLUE&WHITE PACKAGE,WHITE,TRIM0#

main63388-11021-A0iGWZ100,URZ100..CP..EUR202305-202403

WHITE,TRIM0#

main63388-11021-C4iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202403

BLACK,TRIM2#,3#

main63388-11021-E2iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202403

OCHER,TRIM4#

63393ETRIM, ROOF HEADLINING

7401

12 parts on this diagram · 2 diagrams in section
