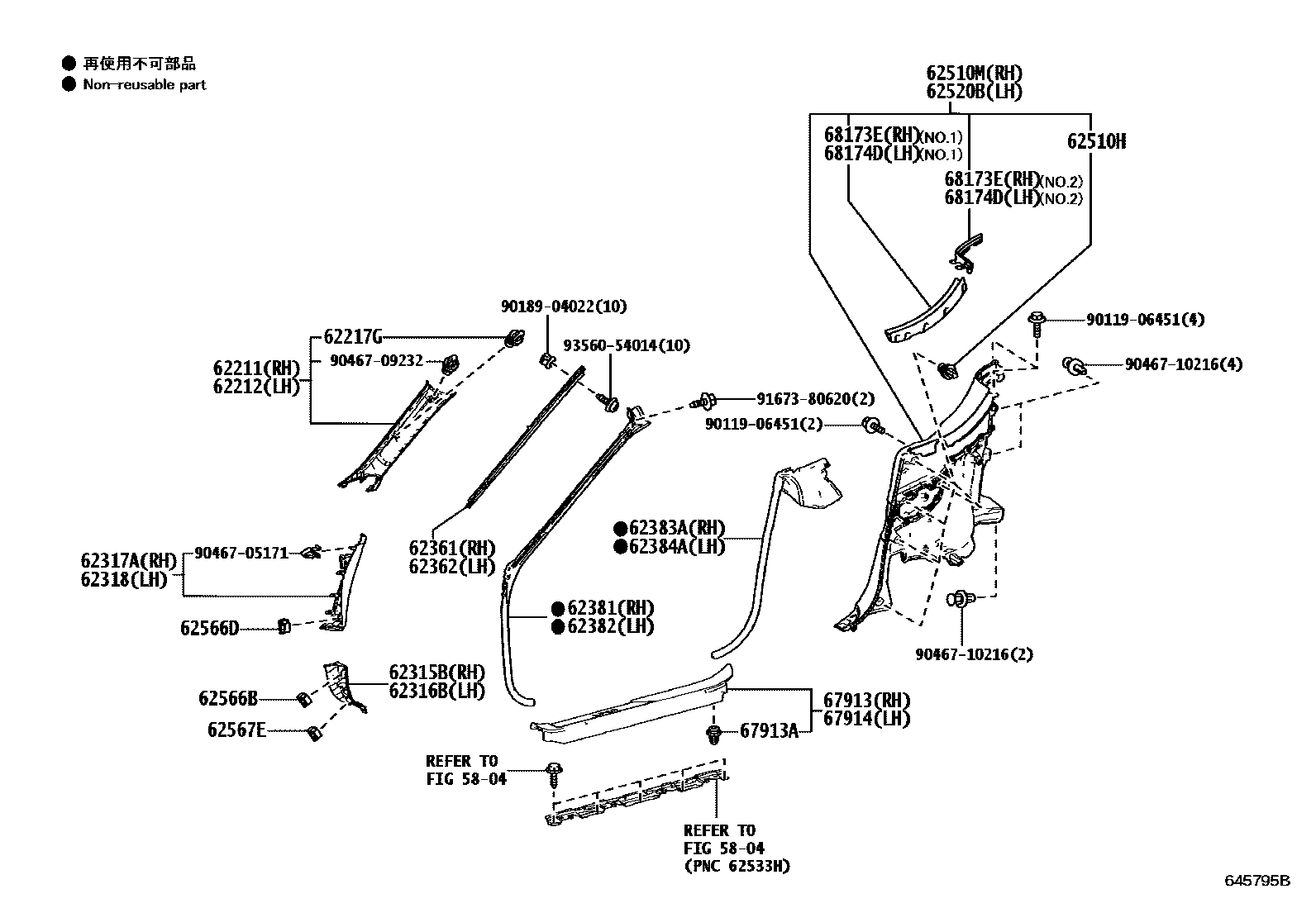

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

5804

62211GARNISH, FRONT PILLAR, RH

main62210-11010-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305-202403

WHITE/IVORY,TRIM0#

main62210-11010-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF HEADLINING-BELLEZA,WHITE/IVORY,TRIM0#

main62210-11010-C6iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305-202403

BLACK/IVORY,TRIM2#,3#

main62210-11010-E2iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305-202403

OCHRE(BELEZA)/IVORY,TRIM4#

main62210-11020-C6iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

BLACK/IVORY,TRIM2#,3#

main62210-11020-C6iGWZ100,URZ100..CP..GEN202305

ROOF HEADLINING-ALCANTARA,BLACK/IVORY,TRIM2#,3#

main62210-11020-E3iGWZ100,URZ100..CP..GEN202305

ROOF HEADLINING-ALCANTARA,OHCRE,TRIM4#

main62210-11020-E3iGWZ100,URZ100..CP..GEN202305

OHCRE,TRIM4#

main62210-11020-J2iURZ100..CP..GEN202309-202409

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

main62210-11020-J2iURZ100..CP..GEN202309-202409

BLUE,TRIM8#

main62210-11030-A0iURZ100..CONV..(ARL,GCC,GEN)202305-202403

WHITE,TRIM0#

main62210-11030-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM2#,3#

main62210-11030-E0iURZ100..CONV..(ARL,GCC,GEN)202305-202403

OCHER,TRIM4#

main62210-11030-J0iURZ100..CONV..(ARL,GCC,GEN)202309-202409

BLUE,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62220-11010-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305-202403

WHITE/IVORY,TRIM0#

main62220-11010-A0iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF HEADLINING-BELLEZA,WHITE/IVORY,TRIM0#

main62220-11010-C6iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305-202403

BLACK/IVORY,TRIM2#,3#

main62220-11010-E2iGWZ100,URZ100..CP..EUR202305-202403

OCHRE(BELAZA)/IVORY,TRIM4#

main62220-11020-C6iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF HEADLINING-ALCANTARA,BLACK/IVORY,TRIM2#,3#

main62220-11020-C6iGWZ100,URZ100..CP..GEN202305

BLACK/IVORY,TRIM2#,3#

main62220-11020-E3iGWZ100,URZ100..CP..GEN202305

OHCRE,TRIM4#

main62220-11020-E3iGWZ100,URZ100..CP..GEN202305

ROOF HEADLINING-ALCANTARA,OHCRE,TRIM4#

main62220-11020-J2iURZ100..CP..GEN202309-202409

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

main62220-11020-J2iURZ100..CP..GEN202309-202409

BLUE,TRIM8#

main62220-11030-A0iURZ100..CONV..(ARL,GCC,GEN)202305-202403

WHITE,TRIM0#

main62220-11030-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM2#,3#

main62220-11030-E0iURZ100..CONV..EUR202305-202403

OCHER,TRIM4#

main62220-11030-J0iURZ100..CONV..EUR202309-202409

BLUE,TRIM8#

62217GCLIP, FRONT PILLAR GARNISH

main62217-11020iGWZ100,URZ100..CP..EUR202305-202403

main62217-13010iURZ100..CONV..EUR202305-202403

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-11010-C1iGWZ100,URZ100..EUR202305-202403

BLACK,TRIM2#,3#

main62315-11010-E1iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

OCHRE,TRIM4#

main62315-11010-J0iURZ100..EUR;GWZ100..RHD..EUR202305-202508

BLUE,TRIM0#

main62315-11010-J0iURZ100..EUR;GWZ100..RHD..EUR202305-202508

BLUE,TRIM0#,8#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-11010-C1iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

BLACK,TRIM2#,3#

main62316-11010-E1iGWZ100,URZ100..EUR202305-202403

OCHRE,TRIM4#

main62316-11010-J0iGWZ100..LHD..EUR202305-202508

BLUE,TRIM0#

main62316-11010-J0iGWZ100..LHD..EUR202305-202508

BLUE,TRIM0#,8#

62317ACOVER, FRONT DOOR OPENING TRIM, NO.2 RH

main62317-11010-A1iURZ100..CONV..GEN;GWZ100,URZ100..CHI,GCC202305-202403

WHITE,TRIM0#

main62317-11010-A1iGWZ100,URZ100..CP..GEN202305

ROOF HEADLINING-BELLEZA,WHITE,TRIM0#

main62317-11010-C3iGWZ100,URZ100..CHI,GCC,GEN202305-202403

BLACK,TRIM2#,3#

main62317-11010-E2iGWZ100,URZ100..CHI,GCC,GEN202305-202403

OCHRE,TRIM4#

main62317-11010-J0iURZ100..LHD..CP..EUR202309-202409

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

main62317-11010-J0iGWZ100..CHI;URZ100..CP..GCC202309-202409

BLUE,TRIM8#

main62317-11020-A1iGWZ100,URZ100..RHD..EUR202305-202403

WHITE,TRIM0#

main62317-11020-C2iGWZ100,URZ100..RHD..EUR202305-202403

BLACK,TRIM2#,3#

main62317-11020-E2iGWZ100,URZ100..RHD..EUR202305-202403

OCHRE,TRIM4#

main62317-11020-J0iURZ100..CONV..ARL202309-202409

BLUE,TRIM8#

main62317-11020-J0iGWZ100,URZ100..RHD..CP..EUR202309-202409

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

62318COVER, FRONT DOOR OPENING TRIM, NO.2 LH

main62318-11010-A1iGWZ100,URZ100..LHD..EUR202305-202403

WHITE,TRIM0#

main62318-11010-A1iGWZ100,URZ100..CP..GEN202305

ROOF HEADLINING-BELLEZA,WHITE,TRIM0#

main62318-11010-C3iGWZ100,URZ100..LHD..EUR202305-202403

BLACK,TRIM2#,3#

main62318-11010-E2iGWZ100,URZ100..LHD..EUR202305-202403

OCHRE,TRIM4#

main62318-11010-J0iURZ100..GEN;URZ100..CONV..GCC202309-202409

BLUE,TRIM8#

main62318-11010-J0iURZ100..LHD..CONV..EUR202309-202409

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

main62318-11020-A1iGWZ100,URZ100..RHD..EUR202305-202403

WHITE,TRIM0#

main62318-11020-C2iGWZ100,URZ100..RHD..EUR202305-202403

BLACK,TRIM2#,3#

main62318-11020-E2iGWZ100,URZ100..RHD..EUR202305-202403

OCHRE,TRIM4#

main62318-11020-J0iURZ100..RHD..CONV..EUR202309-202409

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

main62318-11020-J0iURZ100..RHD..CONV..EUR202309-202409

BLUE,TRIM8#

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-11010iGWZ100,URZ100..CP..EUR202305-202403

main62361-11020iURZ100..CONV..EUR202305-202403

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-11010iGWZ100,URZ100..CP..EUR202305-202403

main62362-11020iURZ100..CONV..(ARL,GCC,GEN)202305-202403

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-11010iGWZ100,URZ100..CP..EUR202305-202403

main62381-11022iURZ100..CONV202305-202312

sub62381-11023

main62381-11023iURZ100..CONV..EUR202401-202403

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-11010iGWZ100,URZ100..CP..EUR202305-202403

main62382-11022iURZ100..CONV202305-202312

sub62382-11023

main62382-11023iURZ100..CONV..EUR202401-202403

62383AWEATHERSTRIP, ROOF SIDE RAIL, REAR RH

main62383-11010iURZ100..CONV202305-202307

sub62383-11011

main62383-11011iURZ100..CONV..EUR202308-202403

62384AWEATHERSTRIP, ROOF SIDE RAIL, REAR LH

main62384-11010iURZ100..CONV202305-202307

sub62384-11011

main62384-11011iURZ100..CONV..EUR202308-202403

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-09206iGWZ100,URZ100..CP..EUR202305-202309

AUDIO-FM & 13SPEAKER

main90467-09206iGWZ100,URZ100..CP..EUR202305-202403

main90467-09233iURZ100..CONV..EUR202305-202403

62510MPANEL ASSY, QUARTER TRIM, RH

main62510-11080-A0iGWZ100..CHI202305-202508

WHITE/BLUE,TRIM0#

main62510-11080-A0iGWZ100..ARL,GCC,GEN202305

AUDIO-FM & 13SPEAKER,WHITE/BLUE,TRIM0#

main62510-11080-C6iGWZ100,URZ100..CP..EUR202305-202403

BLACK,TRIM2#,3#

main62510-11080-C6iGWZ100,URZ100..CP..(ARL,GCC,GEN)202305

AUDIO-FM & 13SPEAKER,BLACK,TRIM2#,3#

main62510-11080-E0iGWZ100,URZ100..CP..EUR202305-202403

OCHRE,TRIM4#

main62510-11080-E0iGWZ100,URZ100..CP..(ARL,GCC,GEN)202305

AUDIO-FM & 13SPEAKER,OCHRE,TRIM4#

main62510-11080-J1iURZ100..CP..(ARL,GCC,GEN)202309-202409

AUDIO-FM & 13SPEAKER,BLUE/BLUE,TRIM8#

main62510-11080-J1iGWZ100..CHI202309-202409

BLUE/BLUE,TRIM8#

main62510-11090-A4iURZ100..CONV202305-202307

WHITE/BLUE/GRAY,TRIM0#

sub62510-11091

main62510-11090-C8iURZ100..CONV202305-202307

BLACK,TRIM2#,3#

sub62510-11091

main62510-11090-E4iURZ100..CONV202305-202307

OCHER,TRIM4#

sub62510-11091

main62510-11091-A4iURZ100..CONV..EUR202308-202403

WHITE/BLUE/GRAY,TRIM0#

main62510-11091-C8iURZ100..CONV..(ARL,GCC,GEN)202308-202403

BLACK,TRIM2#,3#

main62510-11091-E4iURZ100..CONV..EUR202308-202403

OCHER,TRIM4#

main62510-11091-J0iURZ100..CONV..EUR202308-202409

BLUE,TRIM8#

main62510-11100-A0iGWZ100..CHI202305

WHITE/BLUE,TRIM0#

main62510-11100-C0iGWZ100..CHI202305

BLACK/BLACK,TRIM2#,3#

main62510-11100-E0iGWZ100..CHI202305

OCHER/LT.OCHRE,TRIM4#

main62510-11100-J0iGWZ100..CHI202309-202409

BLUE,TRIM8#

62520BPANEL ASSY, QUARTER TRIM, LH

main62520-11080-A0iGWZ100..CHI202309-202508

WHITE/BLUE,TRIM0#

main62520-11080-A0iGWZ100..ARL,GCC,GEN202309

AUDIO-FM & 13SPEAKER,WHITE/BLUE,TRIM0#

main62520-11080-C6iGWZ100,URZ100..CP..(ARL,GCC,GEN)202309

AUDIO-FM & 13SPEAKER,BLACK,TRIM2#,3#

main62520-11080-C6iGWZ100..CHI202309-202403

BLACK,TRIM2#,3#

main62520-11080-E0iGWZ100..CHI202309-202403

OCHRE,TRIM4#

main62520-11080-E0iGWZ100,URZ100..CP..(ARL,GCC,GEN)202309

AUDIO-FM & 13SPEAKER,OCHRE,TRIM4#

main62520-11080-J1iGWZ100..CHI202309-202409

AUDIO-FM & 13SPEAKER,BLUE/BLUE,TRIM8#

main62520-11080-J1iGWZ100..CHI202309-202409

BLUE/BLUE,TRIM8#

main62520-11090-A4iURZ100..CONV202305-202307

WHITE/BLUE/GRAY,TRIM0#

sub62520-11091

main62520-11090-C8iURZ100..CONV202305-202307

BLACK,TRIM2#,3#

sub62520-11091

main62520-11090-E4iURZ100..CONV202305-202307

OCHER,TRIM4#

sub62520-11091

main62520-11091-A4iURZ100..CONV..(ARL,GCC,GEN)202308-202403

WHITE/BLUE/GRAY,TRIM0#

main62520-11091-C8iURZ100..CONV..(ARL,GCC,GEN)202308-202403

BLACK,TRIM2#,3#

main62520-11091-E4iURZ100..CONV..EUR202308-202403

OCHER,TRIM4#

main62520-11091-J0iURZ100..CONV..(ARL,GCC,GEN)202308-202409

BLUE,TRIM8#

main62520-11100-A0iGWZ100..CHI202305

WHITE/BLUE,TRIM0#

main62520-11100-C0iGWZ100..CHI202305

BLACK/BLACK,TRIM2#,3#

main62520-11100-E0iGWZ100..CHI202305

OCHER/LT.OCHRE,TRIM4#

main62520-11100-J0iGWZ100..CHI202309-202409

BLUE,TRIM8#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-11010iURZ100..CONV..EUR202305-202403

main62566-30010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202403

62566DCLAMP, FRONT DOOR OPENING TRIM COVER

main62566-11010iURZ100..CONV..(ARL,GCC,GEN)202305-202403

main62566-30010iGWZ100,URZ100..CP..EUR202305-202403

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010iURZ100..CONV..EUR202305-202403

67913PLATE, FRONT DOOR SCUFF, RH

main67910-11010-C4iURZ100..ARL,GEN;URZ100..CP..GCC202305

"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#

main67910-11010-C4iURZ100..ARL,GEN;URZ100..CP..GCC202305

"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#

main67910-11010-C4iURZ100..ARL,GEN;URZ100..CP..GCC202305

IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR GENERAL),BLACK,TRIM2#,3#

main67910-11010-C4iURZ100..ARL,GEN;URZ100..CP..GCC202305

PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#

main67910-11010-C4iURZ100..ARL,GEN;URZ100..CP..GCC202305

DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#

main67910-11010-C4iGWZ100,URZ100..CP..(ARL,GCC,GEN)202305-202403

BLACK,TRIM2#,3#

main67910-11010-E3iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202403

OCHRE,TRIM4#

main67910-11010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#

main67910-11010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#

main67910-11010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR GENERAL),OCHRE,TRIM4#

main67910-11010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#

main67910-11010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#

main67910-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

WHITE/BLUE,TRIM0#

main67910-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#

main67910-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#

main67910-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR GENERAL),WHITE/BLUE,TRIM0#

main67910-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#

main67910-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#

67913ACLIP(FOR SCUFF PLATE)

main90467-10162iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

67914PLATE, FRONT DOOR SCUFF, LH

main67920-11010-C4iGWZ100,URZ100..EUR202305-202403

BLACK,TRIM2#,3#

main67920-11010-C4iURZ100..CONV..(ARL,GCC,GEN)202305

PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#

main67920-11010-C4iURZ100..CONV..(ARL,GCC,GEN)202305

DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#

main67920-11010-C4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#

main67920-11010-C4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#

main67920-11010-C4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR GENERAL),BLACK,TRIM2#,3#

main67920-11010-E3iGWZ100,URZ100..EUR202305-202403

OCHRE,TRIM4#

main67920-11010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#

main67920-11010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#

main67920-11010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR GENERAL),OCHRE,TRIM4#

main67920-11010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#

main67920-11010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#

main67920-11010-J4iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305

DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#

main67920-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

WHITE/BLUE,TRIM0#

main67920-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#

main67920-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#

main67920-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR GENERAL),WHITE/BLUE,TRIM0#

main67920-11010-J4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#

68173EWEATHERSTRIP, QUARTER TRIM PANEL, INNER RH

main68173-11010iURZ100..CONV..EUR202305-202403

NO.1:REFER ILLUST.

main68173-11020-B0iURZ100..CONV..(ARL,GCC,GEN)202305-202403

GRAY,TRIM0#,NO.2:REFER ILLUST.

main68173-11020-C0iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK,TRIM2#,3#,4#,8#,NO.2:REFER ILLUST.

68174DWEATHERSTRIP, QUARTER TRIM PANEL, INNER LH

main68174-11010iURZ100..CONV..(ARL,GCC,GEN)202305-202403

NO.1:REFER ILLUST.

main68174-11020-B0iURZ100..CONV..EUR202305-202403

GRAY,TRIM0#,NO.2:REFER ILLUST.

main68174-11020-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM2#,3#,4#,8#,NO.2:REFER ILLUST.

9011906451

main90119-06451

9018904022

main90189-04022

9046705171

main90467-05171

9046709232

main90467-09232

9046710216

main90467-10216

9167380620

main91673-80620

9356054014

main93560-54014

32 parts on this diagram · 2 diagrams in section
