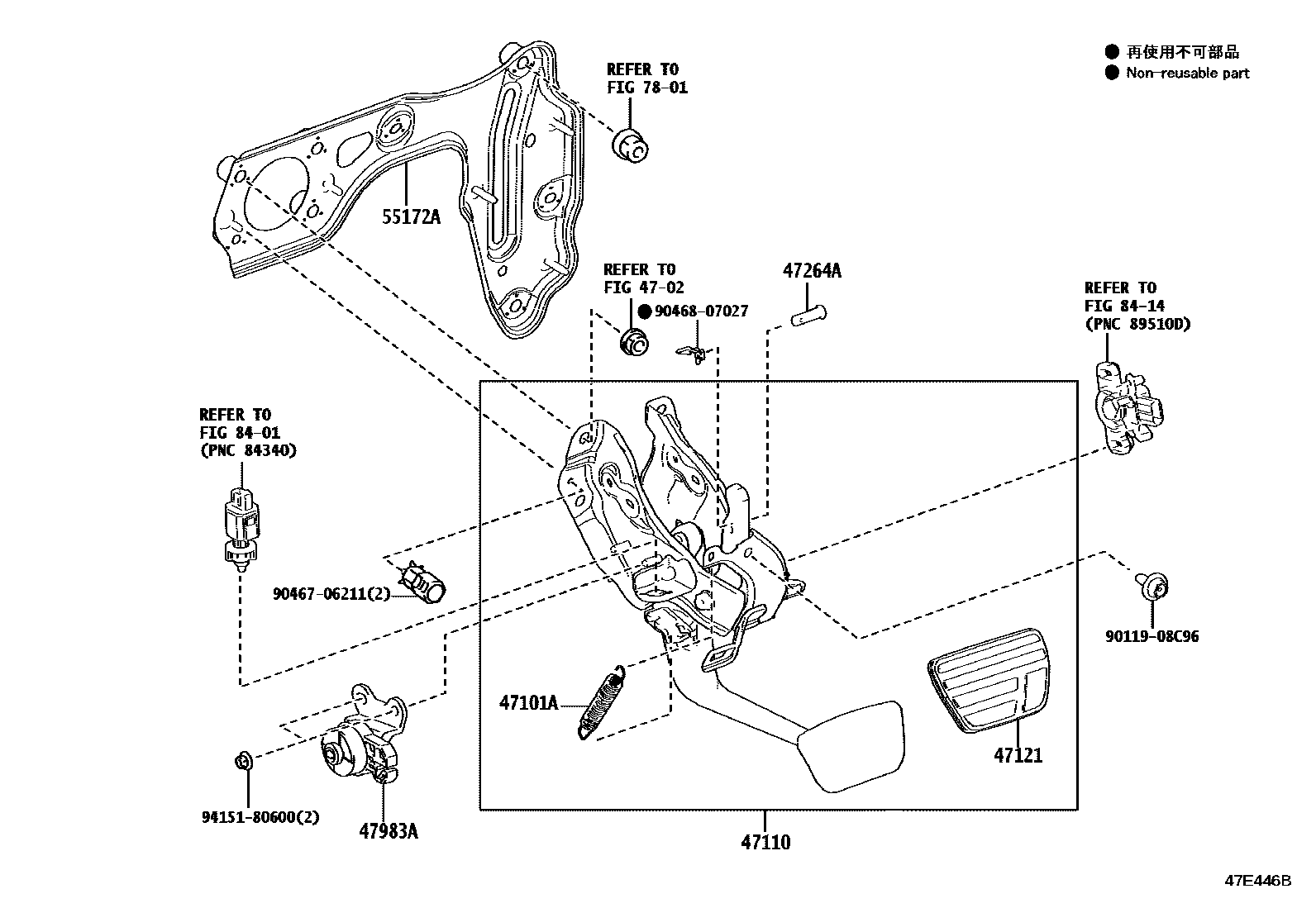

BRAKE PEDAL & BRACKET

0001 1 0002 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13014iGWZ100,URZ100..EUR202305-202403

47110SUPPORT ASSY, BRAKE PEDAL

main47110-11030iGWZ100,URZ100..CHI,GCC,GEN202305

main47110-11040iGWZ100,URZ100..RHD..EUR202305-202403

47121PAD, BRAKE PEDAL

main47121-11020iGWZ100,URZ100..EUR202305-202403

47264APIN(FOR PUSH ROD)

main90240-08078iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

47983ADAMPER, BRAKE TRACTION

main47983-11010iGWZ100,URZ100..LHD..EUR202305-202403

main47983-11020iGWZ100,URZ100..RHD..EUR202305-202403

55172ABASE, BRAKE PEDAL SUPPORT

main55172-11010iGWZ100,URZ100..LHD..EUR202305-202403

main55172-11020iGWZ100,URZ100..ARL202305

7801ACCELERATOR LINK

→ Go to FIG 78-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
