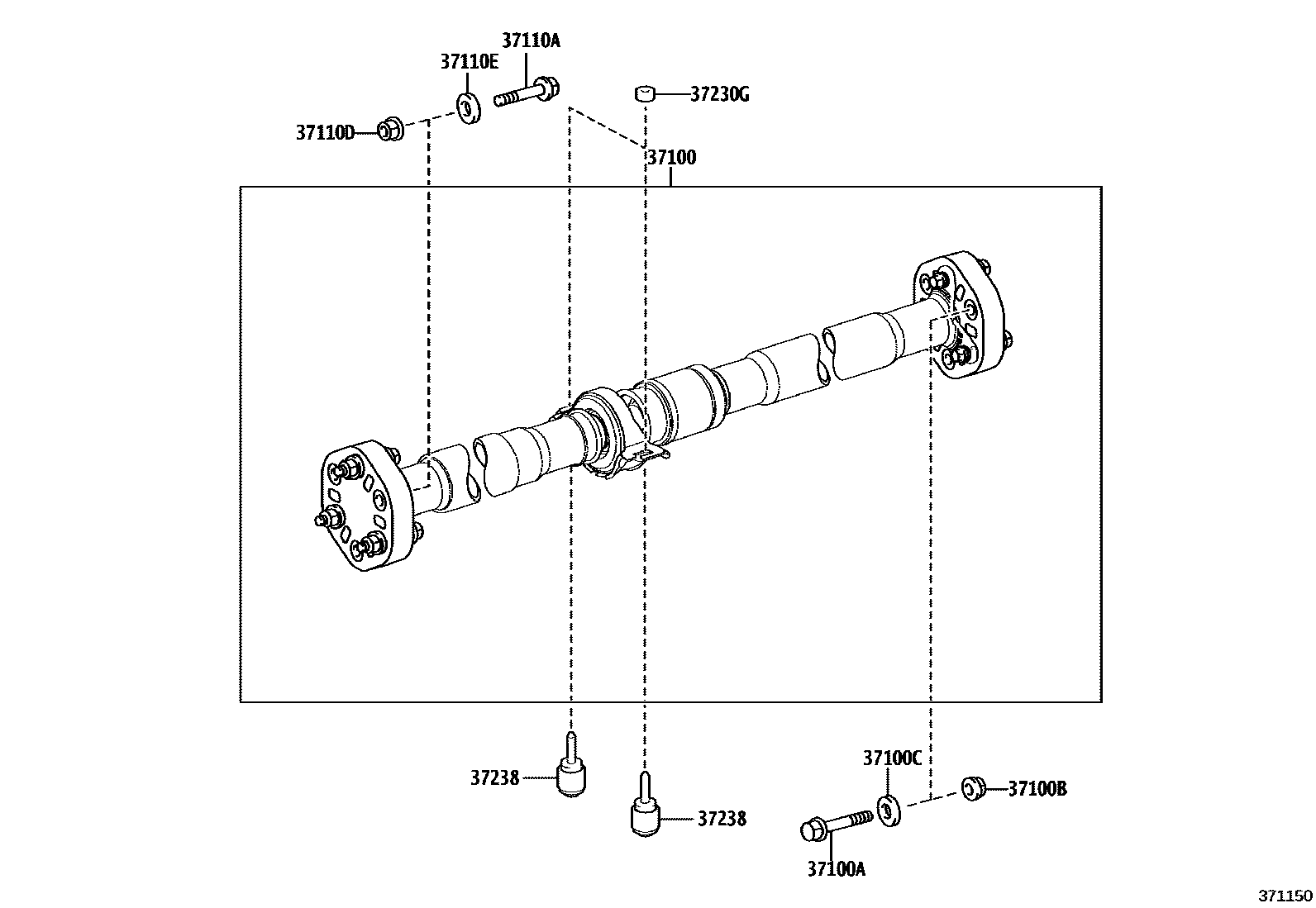

PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-11020iURZ100..EUR202305-202403

main37100-11030iGWZ100..EUR202305-202403

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-12265×3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-12128×3iGWZ100,URZ100..EUR202305-202403

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90560-12059×3iGWZ100,URZ100..EUR202305-202403

37110ABOLT (FOR PROPELLER SHAFT)

main90105-12265×3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

*12X1.25PX59.5-20

37110DNUT (FOR PROPELLER SHAFT)

main90179-12128×3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

37110EWASHER (FOR PROPELLER SHAFT)

main90560-12059×3iGWZ100,URZ100..EUR202305-202403

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10017×2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

T=9.0

main90201-10034×2iGWZ100,URZ100..EUR202305-202403

T=11.0

37238DAMPER, CENTER SUPPORT BEARING

main37209-30020×2iGWZ100,URZ100..EUR202305-202403

9 parts on this diagram · 1 diagram in section
