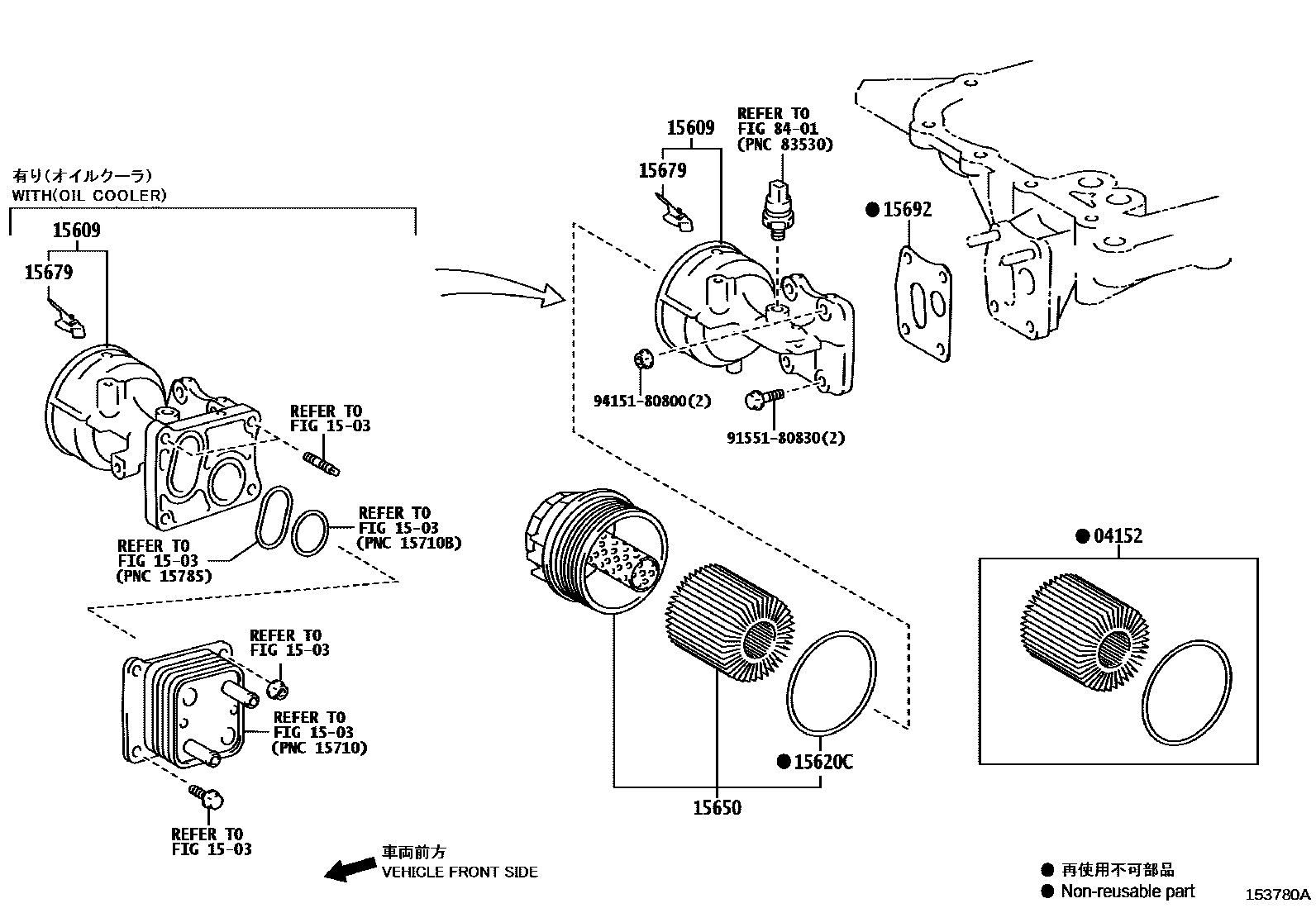

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-31110i8GRFXS..GWZ100..EUR202305-202403

main04152-51010i2URGSE..URZ100..ARL,GCC,GEN202305

1503

15609BRACKET SUB-ASSY, OIL FILTER

main15609-31051i8GRFXS..GWZ100..ARL202305

main15609-31061i8GRFXS..GWZ100..CHI,GCC,GEN202305

main15609-38021i2URGSE..URZ100..ARL,GCC,GEN202305

15620CAP ASSY, OIL FILTER

main15620-38030i2URGSE..URZ100..EUR202305-202403

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i8GRFXS..GWZ100..EUR202305-202403

15650CAP ASSY, OIL FILTER W/ELEMEMT

main15650-31060i8GRFXS..GWZ100..EUR202305-202403

15679CLIP, OIL FILTER BRACKET

main15679-37011i8GRFXS..GWZ100..EUR202305-202403

15692GASKET, OIL FILTER BRACKET

main15692-31080i8GRFXS..GWZ100..EUR202305-202403

8401

9155180830

main91551-80830

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
