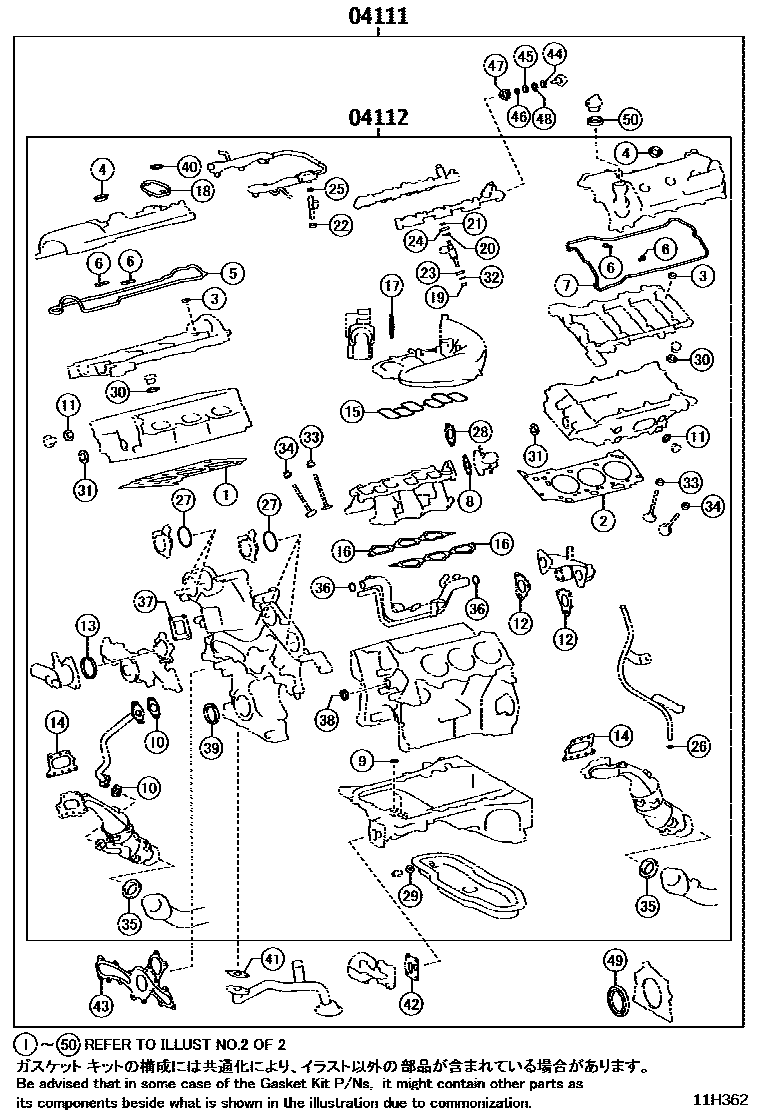

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-31C93i8GRFXS..GWZ100..EUR202305-202403

main04111-31D04i8GRFXS..GWZ100..CHI,GCC,GEN202305

main04111-38310i2URGSE..URZ100..ARL,GCC,GEN202305

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31A42i8GRFXS..GWZ100..EUR202305-202403

main04112-38290i2URGSE..URZ100..ARL,GCC,GEN202305

2 parts on this diagram · 6 diagrams in section
