CAMERA & REAR MONITOR DISPLAY

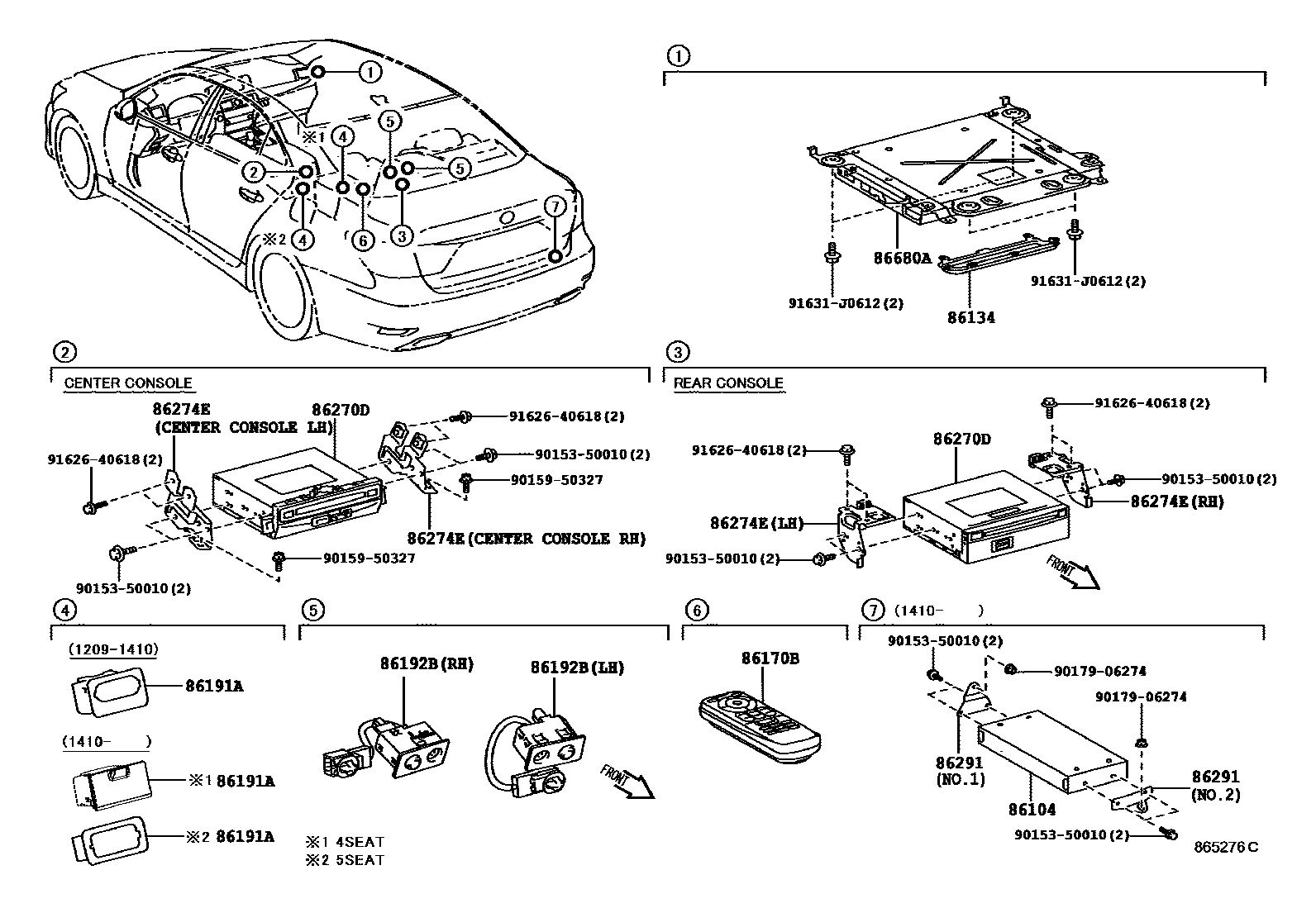

Parts diagram
86104CONTROLLER SUB-ASSY, MULTI-DISPLAY
main86104-50040i201410
VERSION L
86134PARTS, MULTI-DISPLAY
main86134-50010i201209-201410
F SPORT
86170BSWITCH & VOLUME ASSY, TELEVISION
main86170-50360i201211-201410
main86170-50380i201209-201410
F SPORT
main86170-50470i201410
main86170-50340i201209-201410
EXECUTIVE PACKAGE(5SEAT)
main86170-50370i201209-201410
RUSSIA SPEC&EXECUTIVE PACKAGE(5SEAT)
main86170-50400i201209-201410
RUSSIA SPEC
main86170-50410i201209-201410
SOUTH AMERICA SPEC&EXECUTIVE PACKAGE(5SEAT)
main86170-50420i201209-201410
SOUTH AMERICA SPEC
main86170-50430i201410
SOUTH AMERICA SPEC&EXECUTIVE PACKAGE(5SEAT)
main86170-50440i201410
SOUTH AMERICA SPEC
main86170-50450i201410
RUSSIA SPEC&EXECUTIVE PACKAGE(5SEAT)
main86170-50460i201410
RUSSIA SPEC
main86170-50480supersedes 86170-50490i201410
EXECUTIVE PACKAGE(5SEAT)
86191ATERMINAL, VIDEO(VIDEO ADAPTER)
main86191-50080i201410-201708
EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR)
main86191-50090i201211-201410
main86191-50101-A0i201209-201410
MELLOW WHITE,TRIM00,02
main86191-50101-A1i201209-201410
F SPORT&TELEVISION & DVD PLAYER-WITHOUT,IVORY,TRIM01
main86191-50101-B0i201209-201410
LT.GRAY,TRIM1#
main86191-50101-C0i201209-201410
BLACK,TRIM2#,4#
main86191-50101-F0i201209-201410
F SPORT&TELEVISION & DVD PLAYER-WITHOUT,TOPAZ BROWN,TRIM5#
main86191-50110-A0i201410-201708
MELLOW WHITE,TRIM00,02
main86191-50110-A1i201410-201708
IVORY,TRIM01
main86191-50110-B0i201410-201708
LT.GRAY,TRIM1#
main86191-50110-C0i201410-201708
VERSION L&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(CENTER),BLACK,TRIM2#,4#
main86191-50110-F0i201410-201708
VERSION L&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(CENTER),TOPAZ BROWN,TRIM5#
86192BTERMINAL, HEADPHONE
main86192-50030i201209-201410
LH
main86192-50040i201209-201410
RH
main86192-50010i201209-201708
EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),RH
main86192-50020i201209-201708
EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LH
86270DDISC PLAYER ASSY
main86270-50740i201209-201410
F SPORT
main86270-50780i201211-201410
main86270-50A70i201410-201509
main86270-50C90i201509
main86270-50670i201209-201410
SOUTHEAST ASIA SPEC&EXECUTIVE PACKAGE(4SEAT)
sub86270-50671
main86270-50680i201209-201410
SOUTH AMERICA SPEC&EXECUTIVE PACKAGE(4SEAT)&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
main86270-50690i201209-201410
EXECUTIVE PACKAGE(4SEAT)
main86270-50720i201209-201410
THAILAND SPEC
sub86270-50721
main86270-50730i201209-201410
SOUTH AMERICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
main86270-50750i201209-201410
AUSTRALIA,NEW ZEALAND SPEC
main86270-50770i201209-201410
UKRAINE,CROATIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5
main86270-50810i201209-201410
AUSTRALIA,NEW ZEALAND SPEC&EXECUTIVE PACKAGE(4SEAT)
main86270-50820i201209-201410
INDIA SPEC&EXECUTIVE PACKAGE(4SEAT)
main86270-50880i201410-201509
MALAYSIA
sub86270-50881
main86270-50A00i201410-201509
SOUTH AMERICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
main86270-50A40i201410-201509
AUSTRALIA,NEW ZEALAND SPEC
main86270-50A60i201410-201509
UKRAINE,CROATIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5
main86270-50B00i201410-201509
SOUTHEAST ASIA SPEC&EXECUTIVE PACKAGE(4SEAT)
sub86270-50B01
main86270-50B10i201410-201509
SOUTH AMERICA SPEC&EXECUTIVE PACKAGE(4SEAT)&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
main86270-50B20supersedes 86270-50A20i201410-201509
EXECUTIVE PACKAGE(4SEAT)
main86270-50B30i201410-201509
AUSTRALIA,NEW ZEALAND SPEC&EXECUTIVE PACKAGE(4SEAT)
main86270-50B40i201410-201509
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&EXECUTIVE PACKAGE(4SEAT)&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5
main86270-50C00i201509-201711
MALAYSIA
sub86270-50C01
main86270-50C20i201509
SOUTH AMERICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
main86270-50C60i201509
AUSTRALIA,NEW ZEALAND SPEC
main86270-50C80i201509
UKRAINE,CROATIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5
main86270-50D20i201509-201711
SOUTHEAST ASIA SPEC&EXECUTIVE PACKAGE(4SEAT)
sub86270-50D21
main86270-50D30i201509
SOUTH AMERICA SPEC&EXECUTIVE PACKAGE(4SEAT)&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON
main86270-50D40supersedes 86270-50C40i201509
EXECUTIVE PACKAGE(4SEAT)
main86270-50D50i201509
AUSTRALIA,NEW ZEALAND SPEC&EXECUTIVE PACKAGE(4SEAT)
main86270-50D60i201509
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&EXECUTIVE PACKAGE(4SEAT)&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5
86274EBRACKET, DISC PLAYER
main86274-50280i201211
CENTER CONSOLE,RH
main86274-50290i201211
CENTER CONSOLE,LH
main86274-50260i201209
EXECUTIVE PACKAGE(4SEAT),LH
main86274-50270i201209
SOUTH AMERICA SPEC&EXECUTIVE PACKAGE(4SEAT)&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,RH
86291BRACKET, TELEVISION
main86291-50040i201410
NO.1
main86291-50050i201410
VERSION L,NO.2
86680ADISPLAY ASSY, TELEVISION
main86680-50240i201211-201410
PANASONIC
main86680-50260-A0i201209-201410
PANASONIC,VERSION L,MELLOW WHITE,TRIM00,02
sub86680-50261
main86680-50260-A1i201209-201410
PANASONIC,IVORY,TRIM01,04,41,5#
sub86680-50261
main86680-50260-B0i201209-201410
PANASONIC,VERSION L,LT.GRAY,TRIM1#,2#,40
sub86680-50261
main86680-50290-A0i201410-201509
PANASONIC,VERSION L,MELLOW WHITE,TRIM00,02
sub86680-50291
main86680-50290-A1i201410-201509
PANASONIC,IVORY,TRIM01,4#,5#
sub86680-50291
main86680-50290-B0i201410-201509
PANASONIC,VERSION L,LT.GRAY,TRIM1#,2#
sub86680-50291
main86680-50330i201410-201509
PANASONIC
main86680-50360i201509-201708
PANASONIC
main86680-50380-A0i201509-201705
PANASONIC,VERSION L,MELLOW WHITE,TRIM00,02
main86680-50380-A1i201509-201705
PANASONIC,IVORY,TRIM01,4#,5#
main86680-50380-B0i201509-201705
PANASONIC,VERSION L,LT.GRAY,TRIM1#,2#
main86680-50381-A0i201706-201708
PANASONIC,VERSION L,MELLOW WHITE,TRIM00,02
main86680-50381-A1i201706-201708
PANASONIC,IVORY,TRIM01,4#,5#
main86680-50381-B0i201706-201708
PANASONIC,VERSION L,LT.GRAY,TRIM1#,2#
main86680-50230i201209-201410
PANASONIC,EXECUTIVE PACKAGE(5SEAT)
sub86680-50231
main86680-50320i201410-201509
PANASONIC,EXECUTIVE PACKAGE(5SEAT)
sub86680-50321
main86680-50350i201509-201705
PANASONIC,EXECUTIVE PACKAGE(5SEAT)
main86680-50351i201706-201708
PANASONIC,EXECUTIVE PACKAGE(5SEAT)
9015350010
main90153-50010
9015950327
main90159-50327
9017906274
main90179-06274
9162640618
main91626-40618
91631J0612
main91631-J0612

14 parts on this diagram · 6 diagrams in section
