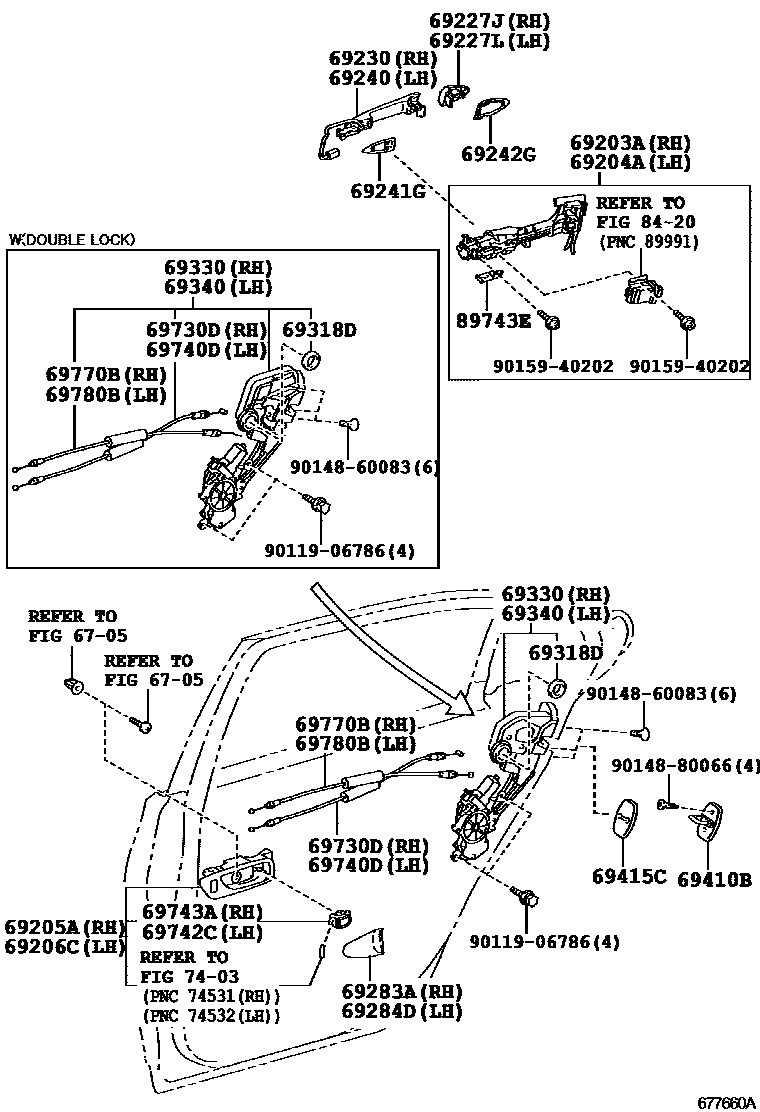

REAR DOOR LOCK & HANDLE
6705
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
MELLOW WHITE,TRIM00,02
VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
MELLOW WHITE,TRIM00
F SPORT&&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,MELLOW WHITE,TRIM00,02
F SPORT&LEATHER SEAT(F SPORT),MELLOW WHITE,TRIM00,02
F SPORT&LEATHER SEAT(F SPORT)&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,MELLOW WHITE,TRIM00,02
F SPORT&,MELLOW WHITE,TRIM00,02
F SPORT&,IVORY,TRIM01
F SPORT&&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,IVORY,TRIM01
IVORY,TRIM01
F SPORT&LEATHER SEAT(F SPORT),IVORY,TRIM01
F SPORT&LEATHER SEAT(F SPORT)&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,IVORY,TRIM01
VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01
IVORY,TRIM01,04
VERSION L&SEMI-ANILINE LEATHER SEAT,BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM1#,2#,4#,5#
F SPORT&LEATHER SEAT(F SPORT)&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,BLACK,TRIM1#,2#,4#,5#
F SPORT&,BLACK,TRIM1#,2#,4#,5#
F SPORT&&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,4#,5#
MELLOW WHITE,TRIM00,02
IVORY,TRIM01
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,3#
F SPORT,BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
MELLOW WHITE,TRIM00,02
F SPORT&LEATHER SEAT(F SPORT),MELLOW WHITE,TRIM00,02
F SPORT&LEATHER SEAT(F SPORT)&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,MELLOW WHITE,TRIM00,02
F SPORT&,MELLOW WHITE,TRIM00,02
F SPORT&&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,MELLOW WHITE,TRIM00,02
MELLOW WHITE,TRIM00
VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
F SPORT&LEATHER SEAT(F SPORT),IVORY,TRIM01
IVORY,TRIM01
F SPORT&&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,IVORY,TRIM01
F SPORT&,IVORY,TRIM01
F SPORT&LEATHER SEAT(F SPORT)&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,IVORY,TRIM01
IVORY,TRIM01,04
VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01
BLACK,TRIM1#,2#,4#,5#
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM1#,2#,4#,5#
F SPORT&LEATHER SEAT(F SPORT)&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,BLACK,TRIM1#,2#,4#,5#
F SPORT&,BLACK,TRIM1#,2#,4#,5#
F SPORT&&INSTRUMENT FINISH PANEL-UPR:TPU,LWR:SYN.LEATHER,BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,4#,5#
VERSION L&SEMI-ANILINE LEATHER SEAT,BLACK,TRIM1#,2#,4#,5#
MELLOW WHITE,TRIM00,02
IVORY,TRIM01
BLACK,TRIM2#,3#
F SPORT,BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
PLATED
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
PLATED
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
PHILIPPINES SPEC
SOUTH AMERICA SPEC
AUSTRALIA,NEW ZEALAND SPEC
HONGKONG,MACAO SPEC
THAILAND SPEC
SOUTHEAST ASIA SPEC
TAIWAN SPEC
69340LOCK ASSY, REAR DOOR, LH
PHILIPPINES SPEC
SOUTH AMERICA SPEC
AUSTRALIA,NEW ZEALAND SPEC
HONGKONG,MACAO SPEC
THAILAND SPEC
SOUTHEAST ASIA SPEC
TAIWAN SPEC
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69742CKNOB, FRONT DOOR LOCK CONTROL, LH
MELLOW WHITE,TRIM00,02
MELLOW WHITE,TRIM00
IVORY,TRIM01
IVORY,TRIM01,04
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,4#,5#
BLACK,TRIM2#,3#
69743AKNOB, REAR DOOR LOCK CONTROL, RH
MELLOW WHITE,TRIM00
MELLOW WHITE,TRIM00,02
IVORY,TRIM01
IVORY,TRIM01,04
BLACK,TRIM2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,3#
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
AUSTRALIA,NEW ZEALAND SPEC
HONGKONG,MACAO SPEC
THAILAND SPEC
SOUTHEAST ASIA SPEC
TAIWAN SPEC
PHILIPPINES SPEC
SOUTH AMERICA SPEC
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
AUSTRALIA,NEW ZEALAND SPEC
HONGKONG,MACAO SPEC
THAILAND SPEC
SOUTHEAST ASIA SPEC
TAIWAN SPEC
PHILIPPINES SPEC
SOUTH AMERICA SPEC
7403
8420
89743EBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9011906786
main90119-06786
9014860083
main90148-60083
9014880066
main90148-80066
9015940202
main90159-40202
31 parts on this diagram · 1 diagram in section
