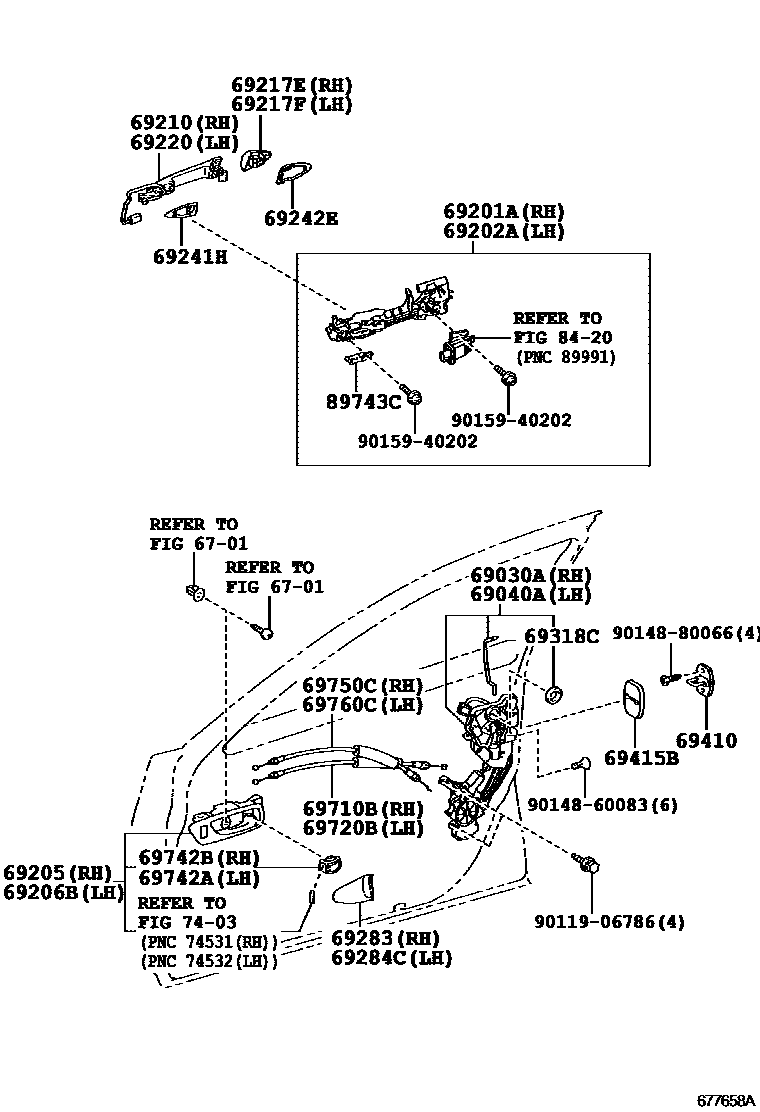

FRONT DOOR LOCK & HANDLE

6701

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-50330iUVF4#..CHI,GCC201209

PHILIPPINES SPEC

main69030-50330iUVF4#..CHI,GCC201209

SOUTH AMERICA SPEC

main69030-50330iUVF4#..CHI,GCC201209

TAIWAN SPEC

main69030-50360iUVF4#..RHD201209

main69030-50370iUVF4#..LHD..EUR201209

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-50310iUVF4#..CHI,GCC201209

PHILIPPINES SPEC

main69040-50310iUVF4#..CHI,GCC201209

SOUTH AMERICA SPEC

main69040-50310iUVF4#..CHI,GCC201209

TAIWAN SPEC

main69040-50320iUVF4#..LHD..EUR201209

main69040-50350iUVF4#..RHD201209

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-50070iUVF4#..RHD201209

main69201-50080iUVF4#..LHD201209

AUSTRALIA,NEW ZEALAND SPEC

main69201-50080iUVF4#..LHD201209

HONGKONG,MACAO SPEC

main69201-50080iUVF4#..LHD201209

THAILAND SPEC

main69201-50080iUVF4#..LHD201209

SOUTHEAST ASIA SPEC

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-50040iUVF4#..LHD..EUR201209

main69202-50050iUVF4#..RHD;UVF4#..CHI,GCC201209

PHILIPPINES SPEC

main69202-50050iUVF4#..RHD;UVF4#..CHI,GCC201209

SOUTH AMERICA SPEC

main69202-50050iUVF4#..RHD;UVF4#..CHI,GCC201209

TAIWAN SPEC

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main67605-50250-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00,02

main67605-50250-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00

main67605-50250-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01

main67605-50250-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01,04

main67605-50250-C0iUVF4#..EUR201209-201708

BLACK,TRIM1#,2#,4#,5#

main67605-50250-C0iUVF4#..EUR201209-201708

BLACK,TRIM2#,4#,5#

main67605-50250-C0iUVF45..GCC201210-201708

BLACK,TRIM2#,3#

main67605-50250-C0iUVF45..GCC201210-201708

F SPORT,BLACK,TRIM1#,2#,4#,5#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main67606-50250-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00,02

main67606-50250-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00

main67606-50250-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01

main67606-50250-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01,04

main67606-50250-C0iUVF4#..EUR201209-201708

BLACK,TRIM1#,2#,4#,5#

main67606-50250-C0iUVF4#..EUR201209-201708

BLACK,TRIM2#,4#,5#

main67606-50250-C0iUVF45..GCC201210-201708

BLACK,TRIM2#,3#

main67606-50250-C0iUVF45..GCC201210-201708

F SPORT,BLACK,TRIM1#,2#,4#,5#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-33090iUVF4#201209-201708

PLATED

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-33040iUVF4#..LHD201209

*CR

main69217-50020iUVF4#..RHD201209

*CR

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-33010iUVF4#..LHD201209

*CR

main69218-50020iUVF4#..RHD201209

*CR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-33060iUVF4#201209-201708

PLATED

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-53010iUVF4#201209

RH

main69242-53010iUVF4#201209

LH

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-50030iUVF4#201209

RH

main69242-50030iUVF4#201209

LH

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30050-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00,02

sub69283-30050

main69283-30050-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00

sub69283-30050

main69283-30050-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01

sub69283-30050

main69283-30050-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01,04

sub69283-30050

main69283-30050-C0iUVF4#..EUR201209-201708

BLACK,TRIM1#,2#,4#,5#

sub69283-30050

main69283-30050-C0iUVF4#..EUR201209-201708

BLACK,TRIM2#,4#,5#

sub69283-30050

main69283-30050-C0iUVF45..GCC201210-201708

BLACK,TRIM2#,3#

sub69283-30050

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30050-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00,02

sub69284-30050

main69284-30050-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00

sub69284-30050

main69284-30050-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01

sub69284-30050

main69284-30050-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01,04

sub69284-30050

main69284-30050-C0iUVF4#..EUR201209-201708

BLACK,TRIM1#,2#,4#,5#

sub69284-30050

main69284-30050-C0iUVF4#..EUR201209-201708

BLACK,TRIM2#,4#,5#

sub69284-30050

main69284-30050-C0iUVF45..GCC201210-201708

BLACK,TRIM2#,3#

sub69284-30050

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iUVF4#201209

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-30060iUVF4#201209

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-33010iUVF4#201209-201210

main69415-60020iUVF4#201210

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-50030iUVF4#201209

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-50030iUVF4#201209

69742AKNOB, REAR DOOR LOCK CONTROL, LH

main69742-50020-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00,02

main69742-50020-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00

main69742-50020-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01

main69742-50020-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01,04

main69742-50020-C0iUVF4#..EUR201209-201708

BLACK,TRIM1#,2#,4#,5#

main69742-50020-C0iUVF4#..EUR201209-201708

BLACK,TRIM2#,4#,5#

main69742-50020-C0iUVF45..GCC201210-201708

BLACK,TRIM2#,3#

69742BKNOB, FRONT DOOR LOCK CONTROL, RH

main69741-50020-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00,02

main69741-50020-A1iUVF4#..EUR201209-201708

MELLOW WHITE,TRIM00

main69741-50020-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01

main69741-50020-A2iUVF4#..CHI,EUR201209-201708

IVORY,TRIM01,04

main69741-50020-C0iUVF4#..EUR201209-201708

BLACK,TRIM1#,2#,4#,5#

main69741-50020-C0iUVF4#..EUR201209-201708

BLACK,TRIM2#,4#,5#

main69741-50020-C0iUVF45..GCC201210-201708

BLACK,TRIM2#,3#

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-50050iUVF4#201209

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-50050iUVF4#201209

7403

8420

89743CBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-53010iUVF4#201209-201708

RH

main89743-53020iUVF4#201209-201708

LH

9011906786

main90119-06786

9014860083

main90148-60083

9014880066

main90148-80066

9015940202

main90159-40202

31 parts on this diagram · 1 diagram in section
