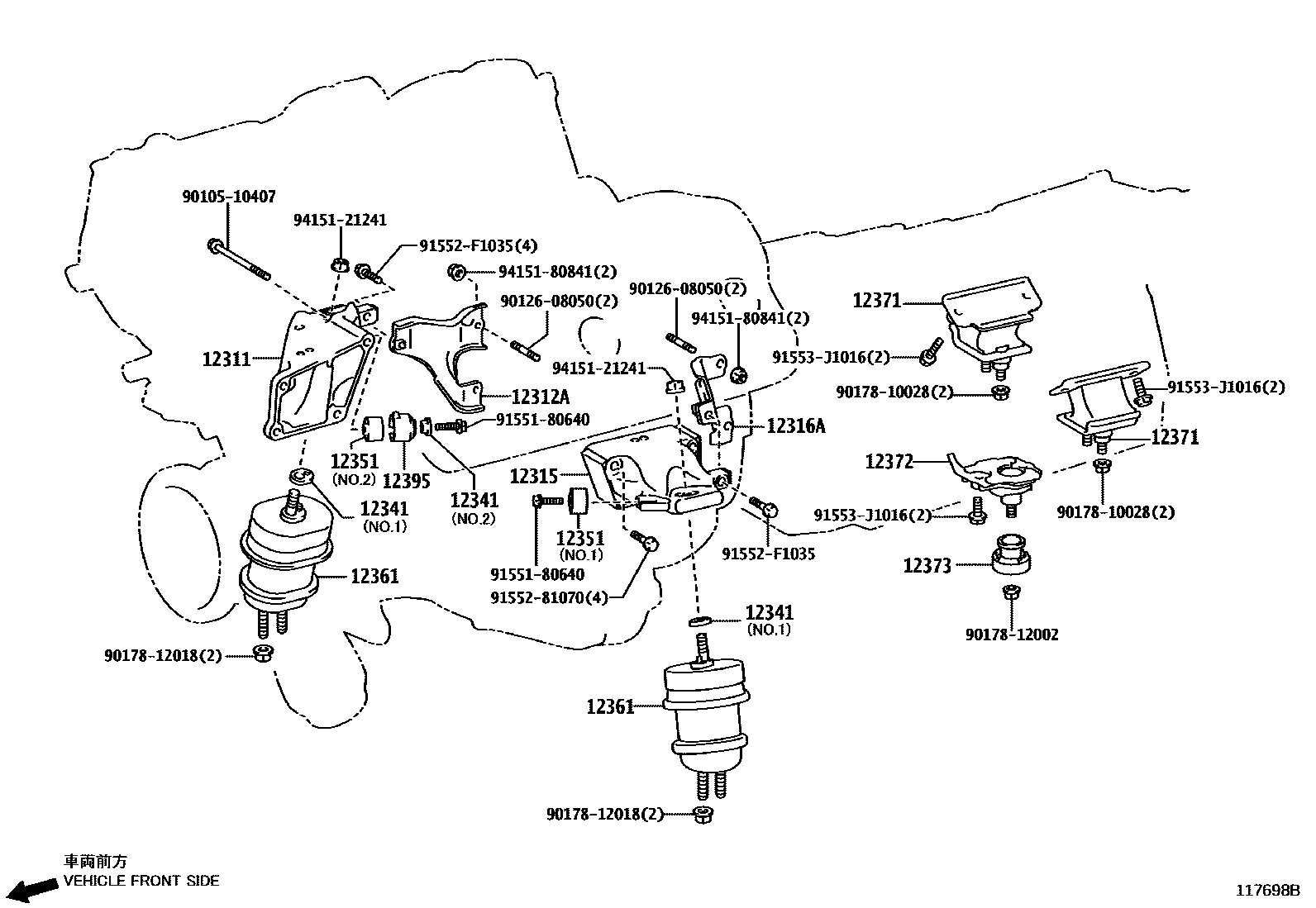

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-38060i2URFSE..UVF4#201209

12312ABRACKET, ENGINE MOUNTING, FRONT NO.2 RH

main12312-38021i2URFSE..UVF4#201209

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-38050i2URFSE..UVF4#201209

12316ABRACKET, ENGINE MOUNTING, FR NO.2 LH

main12316-38010i2URFSE..UVF4#201209

12341SPACER, ENGINE MOUNTING

main12319-38010i2URFSE..UVF4#201209

NO.1

main12341-38010i2URFSE..UVF4#201209

NO.2

12351DAMPER, ENGINE MOUNTING

main12351-38020i2URFSE..UVF4#201209

NO.2

main12351-38030i2URFSE..UVF4#201209

NO.1

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38210i2URFSE..UVF4#201209

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-38040i2URFSE..UVF4#201209

12372INSULATOR, ENGINE MOUNTING, REAR NO.2

main12372-38010i2URFSE..UVF4#201209

12373INSULATOR, ENGINE MOUNTING, REAR NO.3

main12373-38011i2URFSE..UVF4#201209

12395INSULATOR, ENGINE MOUNTING BRACKET HEAT

main12395-38010i2URFSE..UVF4#201209

9010510407

main90105-10407

9012608050

main90126-08050

9017810028

main90178-10028

9017812002

main90178-12002

9017812018

main90178-12018

9155180640

main91551-80640

9155281070

main91552-81070

91552F1035

main91552-F1035

91553J1016

main91553-J1016

9415121241

main94151-21241

9415180841

main94151-80841

22 parts on this diagram · 1 diagram in section
