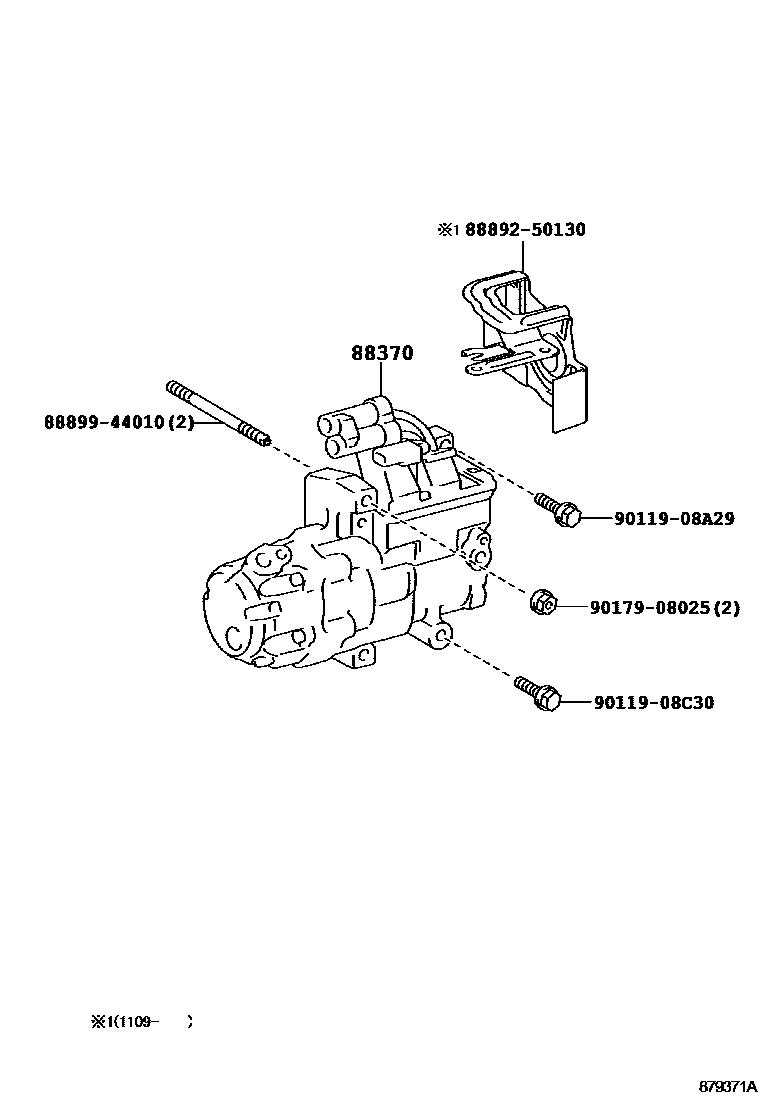

HEATING & AIR CONDITIONING - COMPRESSOR

88370COMPRESSOR ASSY, W/MOTOR

main88370-50010iUVF4#200704-200809

main88370-50020iUVF4#201108-201209

8889250130BRACKET, COOLER EVAPORATOR MOUNTING

main88892-50130

8889944010COVER, EVAPORATOR

main88899-44010

9011908A29

main90119-08A29

9011908C30

main90119-08C30

9017908025

main90179-08025

6 parts on this diagram · 1 diagram in section
