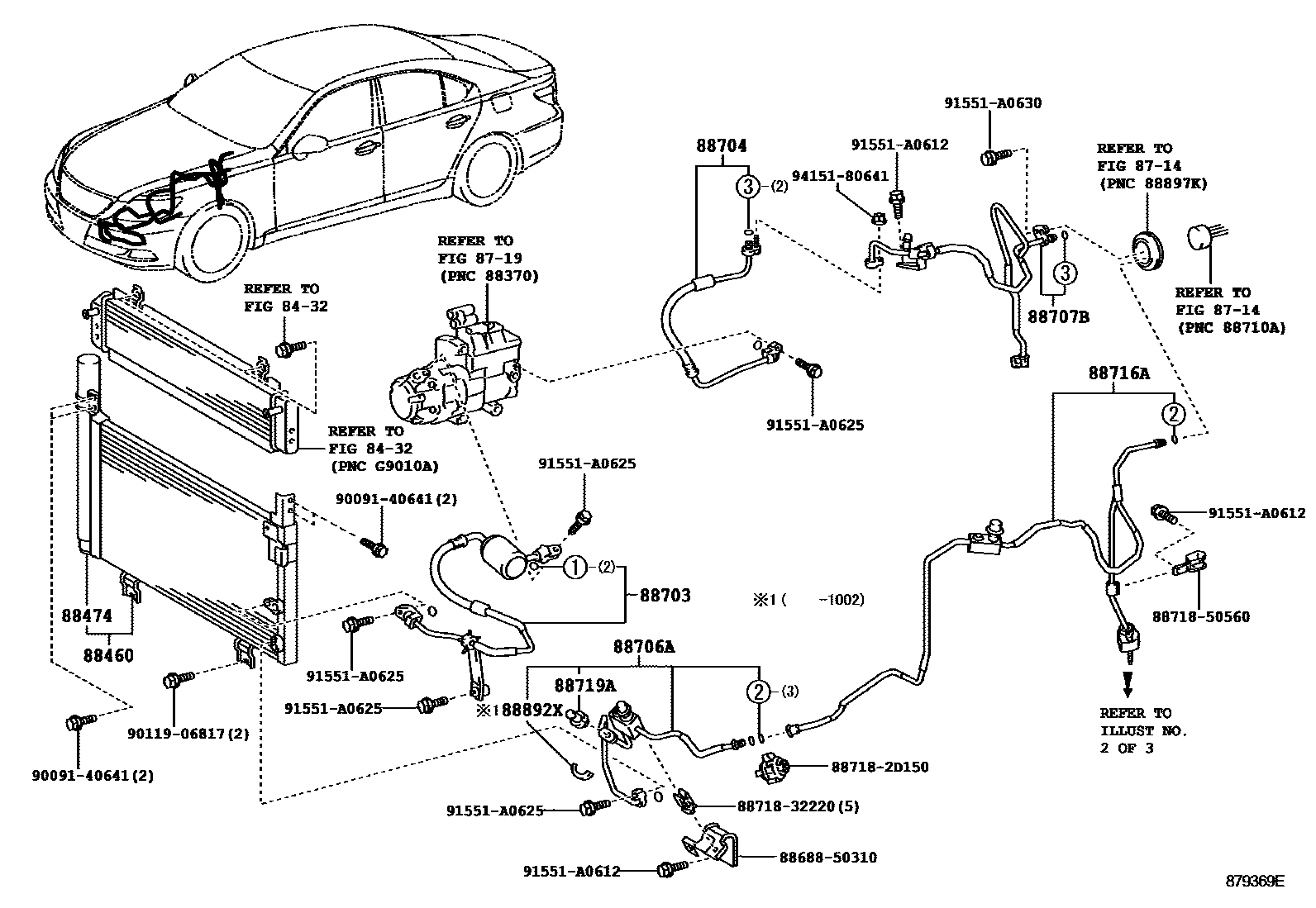

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1REAR 0003 1O-RING

8432INVERTER COOLING

→ Go to FIG 84-32

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-50230iUVF4#200704-200911

main88460-50231iUVF4#200911-201209

88474DRYER, COOLER

main88474-50020iUVF4#200704-200911

88703HOSE SUB-ASSY, DISCHARGE

main88703-50040iUVF4#200704-200911

main88703-50041iUVF4#200911

88704HOSE SUB-ASSY, SUCTION

main88704-50020iUVF4#200704-200911

88706ATUBE SUB-ASSY, LIQUID, A

main88706-50040iUVF4#200704-201002

main88706-50041iUVF4#201002

88707BTUBE SUB-ASSY, SUCTION, B

main88707-50030iUVF4#200704-200911

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-50600iUVF4#200704-200911

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iUVF4#200805-200911

main88719-40020iUVF4#200704-200805

88892XCOVER, COOLER, NO.2

main88892-50120iUVF4#200704-201002

8868850310BRACKET, COOLER DIAPHRAGM

main88688-50310

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

8871850560PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50560

9009140641

main90091-40641

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

22 parts on this diagram · 3 diagrams in section
