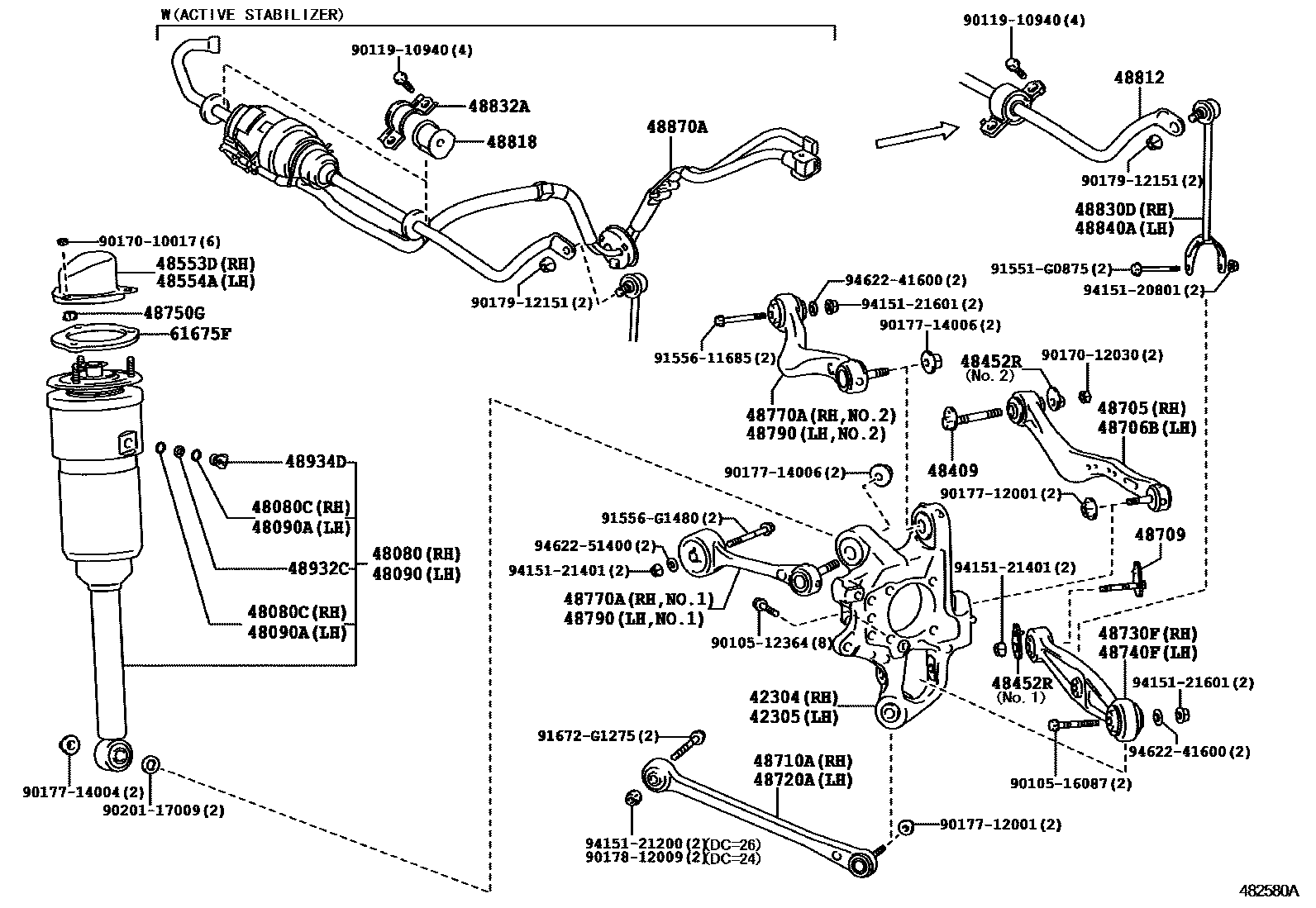

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48080CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER
CYPRUS SPEC; DENMARK SPEC; ENGLAND SPEC; FINLAND SPEC; FORMOSA SPEC; FRENCH SPEC; GERMANY SPEC; GREECE SPEC; HOLLAND SPEC; HONG KONG SPEC; ISRAEL SPEC; ITALY SPEC; NEW ZEALAND SPEC; NORWAY SPEC; PORTUGAL SPEC; SINGAPORE SPEC; SWEDEN SPEC; SWITZERLAND SPEC
CYPRUS SPEC; DENMARK SPEC; ENGLAND SPEC; FINLAND SPEC; FORMOSA SPEC; FRENCH SPEC; GERMANY SPEC; GREECE SPEC; HOLLAND SPEC; HONG KONG SPEC; ISRAEL SPEC; ITALY SPEC; NEW ZEALAND SPEC; NORWAY SPEC; PORTUGAL SPEC; SINGAPORE SPEC; SWEDEN SPEC; SWITZERLAND SPEC
AUSTRALIA SPEC; BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC
AUSTRALIA SPEC; BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC; RUSSIA SPEC
48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)
48090CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER
CYPRUS SPEC; DENMARK SPEC; ENGLAND SPEC; FINLAND SPEC; FORMOSA SPEC; FRENCH SPEC; GERMANY SPEC; GREECE SPEC; HOLLAND SPEC; HONG KONG SPEC; ISRAEL SPEC; ITALY SPEC; NEW ZEALAND SPEC; NORWAY SPEC; PORTUGAL SPEC; SINGAPORE SPEC; SWEDEN SPEC; SWITZERLAND SPEC
CYPRUS SPEC; DENMARK SPEC; ENGLAND SPEC; FINLAND SPEC; FORMOSA SPEC; FRENCH SPEC; GERMANY SPEC; GREECE SPEC; HOLLAND SPEC; HONG KONG SPEC; ISRAEL SPEC; ITALY SPEC; NEW ZEALAND SPEC; NORWAY SPEC; PORTUGAL SPEC; SINGAPORE SPEC; SWEDEN SPEC; SWITZERLAND SPEC
AUSTRALIA SPEC; BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC
AUSTRALIA SPEC; BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC
48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
NO.2
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48705LINK SUB-ASSY, TOE CONTROL, RH
48706BLINK SUB-ASSY, TOE CONTROL, LH
48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM
MARK 1
MARK 2
MARK 3
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48770AARM ASSY, UPPER CONTROL, REAR RH
NO.1
NO.2
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
VERSION S
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
STABILIZER-ACTIVE STABILIZER SUSPENSION
48840ALINK ASSY, REAR STABILIZER, LH
48870AACUTUATOR ASSY, REAR ACTIVE STABILIZER CONTROL
VERSION S
48932CPLATE, HEIGHT CONTROL TUBE
48934DCONNECTOR, HEIGHT CONTROL TUBE
61675FREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
9010512364
main90105-12364
9010516087
main90105-16087
9011910940
main90119-10940
9017010017
main90170-10017
9017012030
main90170-12030
9017712001
main90177-12001
9017714004
main90177-14004
9017714006
main90177-14006
9017812009
main90178-12009
9017912151
main90179-12151
9020117009
main90201-17009
91551G0875
main91551-G0875
9155611685
main91556-11685
91556G1480
main91556-G1480
91672G1275
main91672-G1275
9415120801
main94151-20801
9415121200
main94151-21200
9415121401
main94151-21401
9415121601
main94151-21601
9462241600
main94622-41600
9462251400
main94622-51400
50 parts on this diagram · 1 diagram in section
