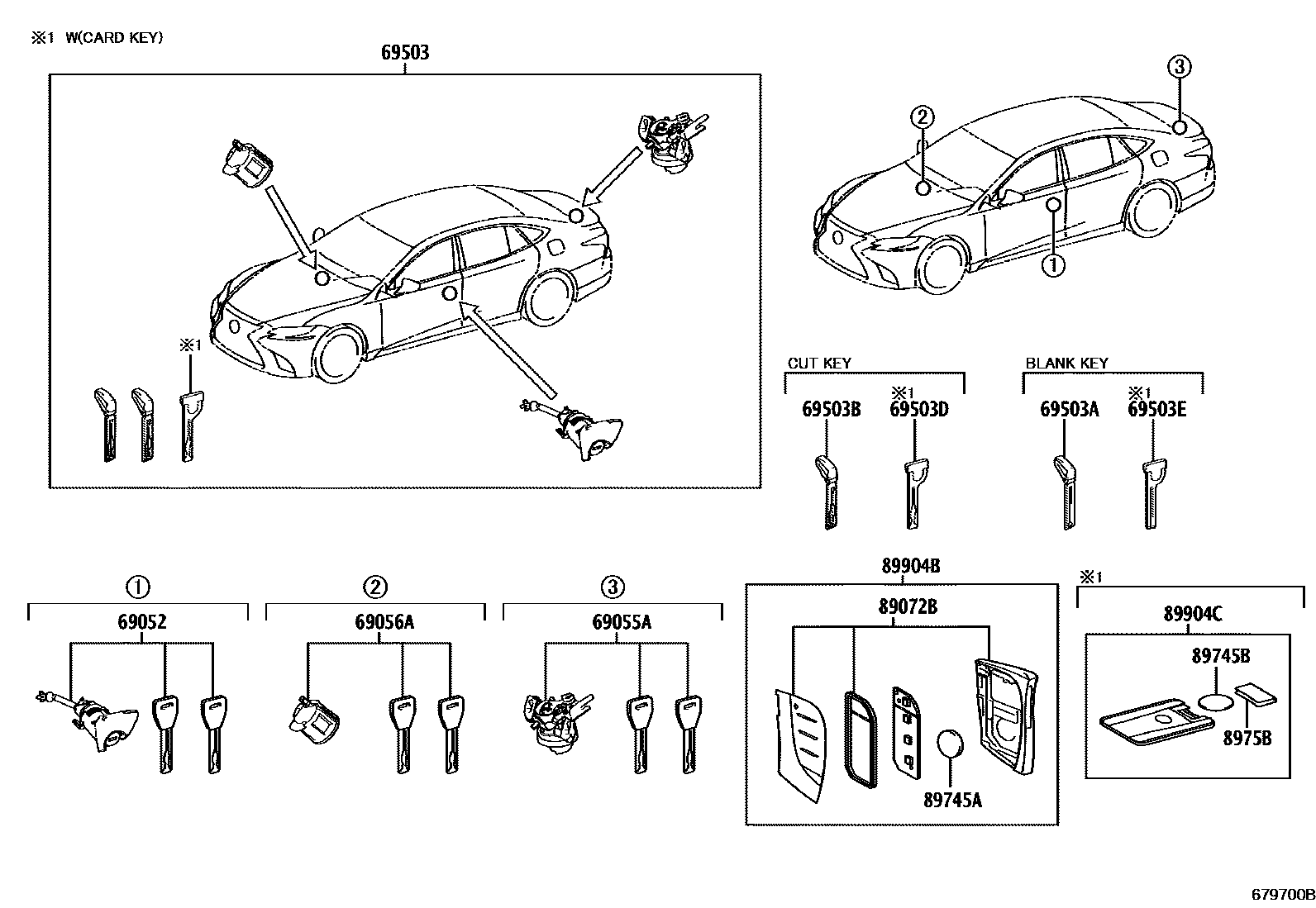

Toyota LEXUS LS SERIES — LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
69503BKEY, CUT
69503DKEY, CUT(CARD KEY)
69503EKEY, BLANK(CARD KEY)
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89745ABATTERY, TRANSMITTER
89745BBATTERY, TRANSMITTER(CARD KEY)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
14 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota LEXUS LS SERIES
This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota LEXUS LS SERIES. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK, CYLINDER SET, LOCK.
