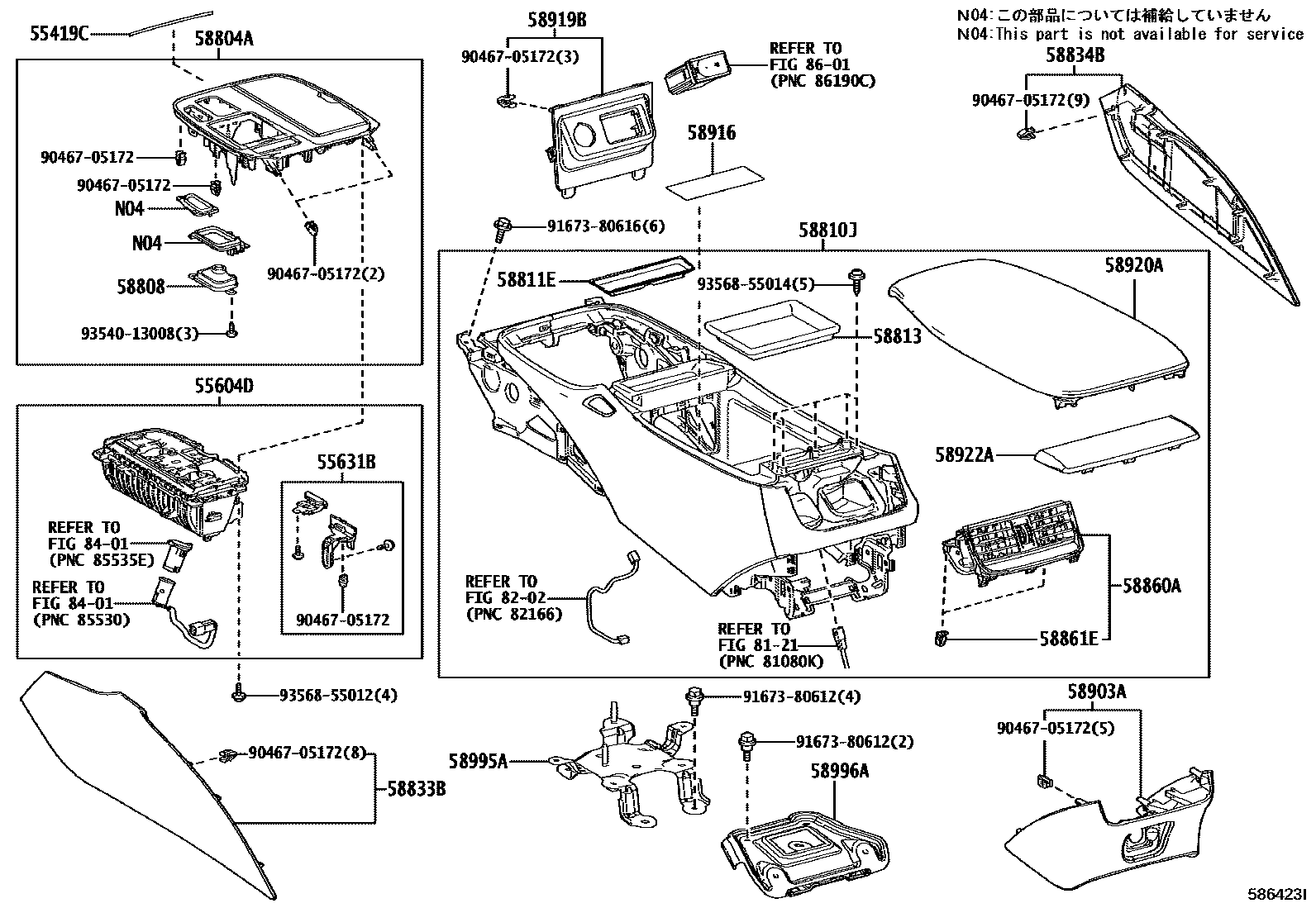

CONSOLE BOX & BRACKET
55419CCUSHION, CONSOLE PANEL, NO.1
55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55631BLOCK, INSTRUMENT PANEL CUP HOLDER, NO.1
58804APANEL SUB-ASSY, CONSOLE, UPPER
LAZER CUT WOOD_22BK66,TRIM22,32,33,52,92
BLACK,TRIM21
BLACK WOOD,TRIM06,20,26,30,36
BLACK WOOD,TRIM06,08,26,36
BLACK WOOD,TRIM06,26,36
BLACK,TRIM1#
BLACK,TRIM33,53,93
BLACK,TRIM20,30
BLACK,TRIM01,20,30
BLACK,TRIM05,07,21,25,27,37,5#
BLACK,TRIM05,07,08,21,25,27,28,37,38,5#
DK.BROWN,TRIM05,45
BROWN,TRIM04,24
BROWN,TRIM24,44
OPEN PORE,TRIM49
OPEN PORE,TRIM1#,48,49,59
LAZER CUT SPECIAL 2,TRIM46
LAZER CUT WOOD_22BK66,TRIM22,32,33,52,92
BLACK,TRIM21
BLACK WOOD,TRIM06,08,26,36
BLACK WOOD,TRIM06,26,36
BLACK,TRIM1#
BLACK,TRIM33,53,93
BLACK,TRIM01,20,30
BLACK,TRIM20,30
BLACK,TRIM05,07,08,21,25,27,28,37,38,5#
DK.BROWN,TRIM05,45
BROWN,TRIM04,24
BROWN,TRIM24,44
OPEN PORE,TRIM49
OPEN PORE,TRIM1#,48,49,59
LAZER CUT SPECIAL 2,TRIM46
BLACK WOOD,TRIM06,26,36
BLACK,TRIM1#
BLACK,TRIM20,30
SUMI BLACK,TRIM0#,21,25,27,37,5#
SUMI BLACK,TRIM07,21,25,27,37,5#
BROWN,TRIM24,44
OPEN PORE,TRIM49
BLACK WOOD,TRIM06,26,36
BLACK,TRIM1#
BLACK,TRIM20,30
SUMI BLACK,TRIM07,21,25,27,37,5#
BROWN,TRIM24,44
OPEN PORE,TRIM49
58808COVER SUB-ASSY, SHIFTING HOLE
58810JBOX ASSY, CONSOLE
BLACK/LAZER CUT WOOD,TRIM22
WHITE,TRIM0#
BLACK/BLACK WOOD,TRIM26
RED,TRIM3#
WHITE,TRIM0#
BLACK,TRIM2#
RED,TRIM3#
WHITE,TRIM0#
BLACK,TRIM2#
RED,TRIM3#
WHITE,TRIM0#
WHITE,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
RED,TRIM3#
RED,TRIM3#
58811EBOX, CONSOLE, UPPER
58813BOX, CONSOLE, UPPER
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM06,2#,36,52,53
BLACK,TRIM0#,1#,2#,36,38,4#,5#
BLACK,TRIM0#,1#,2#,36,4#,5#
CRIMSON,TRIM30,33
CRIMSON,TRIM30,37
CRIMSON,TRIM3#
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM04,05,1#,4#,59,9#
BLACK,TRIM06,2#,36,52,53
BLACK,TRIM0#,1#,2#,36,38,4#,5#
BLACK,TRIM0#,1#,2#,36,4#,5#
CRIMSON,TRIM30,33
CRIMSON,TRIM30,37
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM04,05,1#,4#,59,9#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK,TRIM0#,1#,2#,36,38,4#,5#
BLACK,TRIM06,2#,36,52,53
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,36,4#,5#
CRIMSON,TRIM3#
CRIMSON,TRIM30,33
CRIMSON,TRIM30,37
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM04,05,1#,4#,59,9#
BLACK,TRIM0#,1#,2#,36,38,4#,5#
BLACK,TRIM06,2#,36,52,53
BLACK,TRIM0#,1#,2#,36,4#,5#
CRIMSON,TRIM30,37
CRIMSON,TRIM30,33
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM04,05,1#,4#,59,9#
58860AREGISTER ASSY, CONSOLE BOX
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L),LAZER CUT WOOD_22BK66,TRIM22,32,33,92
LAZER CUT WOOD_22BK66,TRIM22,32,33,9#
BLACK,TRIM21
BLACK WOOD,TRIM06,20,26,30,36
BROWN,TRIM04,24
OPEN PORE,TRIM1#,5#
58861ECLIP, CONSOLE BOX DUCT
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM06,2#,36
BLACK,TRIM0#,1#,2#,36,38,4#
BLACK,TRIM0#,1#,2#,36,4#
CRIMSON,TRIM30,33
CRIMSON,TRIM3#
CRIMSON,TRIM30,37
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM04,05,1#,4#,5#,9#
58916MAT, BOX BOTTOM
58919BPLATE, CONSOLE BOX
58920AARMREST ASSY, REAR CONSOLE
WHITE,TRIM0#
BLACK,TRIM2#
RED,TRIM3#
WHITE,TRIM0#
WHITE,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
RED,TRIM3#
RED,TRIM3#
58922APLATE, BOX, UPPER NO.2
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121
8202
8401
8601
9046705172
main90467-05172
9167380612
main91673-80612
9167380616
main91673-80616
9354013008
main93540-13008
9356855012
main93568-55012
9356855014
main93568-55014
29 parts on this diagram · 2 diagrams in section
