47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010i202310-202509

main90507-15011i202011-202310

47110SUPPORT ASSY, BRAKE PEDAL

main47110-50270i202310-202509

main47110-50180supersedes 47110-50170i201710-202010

"F SPORT"*(F)

main47110-50181supersedes 47110-50171i202011-202310

"F SPORT"*(F)

main47110-50200supersedes 47110-50191i201710-201908

"F SPORT"*(F)

main47110-50220supersedes 47110-50211i201712-202010

"F SPORT"*(F)

main47110-50221supersedes 47110-50211i202011-202410

"F SPORT"*(F)

main47110-50240supersedes 47110-62030i201710-202010

"F SPORT"*(F)

main47110-50241supersedes 47110-50231i202011-202310

"F SPORT"*(F)

main47110-50250i201809-202010

"EXECUTIVE"*(E)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A; "VERSION L"*(L)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main47110-50251i202011-202310

"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A

main47110-50260supersedes 47110-50250i201710-202010

"F SPORT"*(F)

main47110-50261supersedes 47110-50251i202011-202310

"F SPORT"*(F)

main47110-50280supersedes 47110-62020i202310-202509

"F SPORT"*(F)

main47110-50290supersedes 47110-62030i202310-202509

"F SPORT"*(F)

main47110-50300supersedes 47110-50250i202310-202509

"F SPORT"*(F)

main47110-62020i202011-202310

"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH; "VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH

47121PAD, BRAKE PEDAL

main47121-48010i201710-202010

main47121-62010i202011-202410

main47121-11010i201710-202010

"F SPORT"*(F)

main47121-11020i202011-202410

"F SPORT"*(F)

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036i202011-202410

47264APIN(FOR PUSH ROD)

main90240-08078i202011-202509

main90240-08082i201710-201804

main90249-06180i202011-202410

55172ABASE, BRAKE PEDAL SUPPORT

main55172-50070i201710-202010

main55172-50080i201710-202010

main55172-50090i201710-202010

main55172-62010i202011-202410

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9012908001

main90129-08001

9046807027

main90468-07027

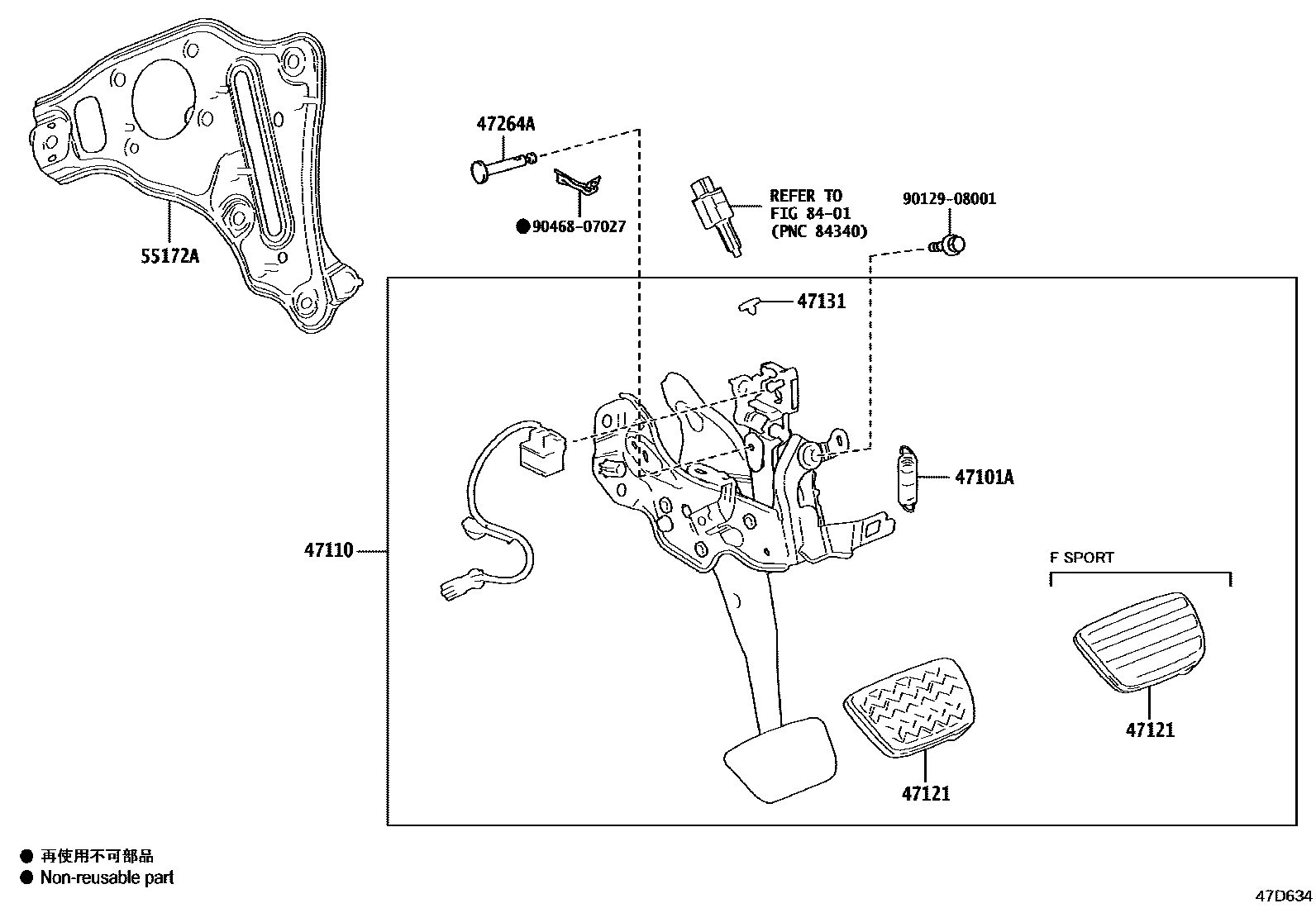

BRAKE PEDAL & BRACKET
