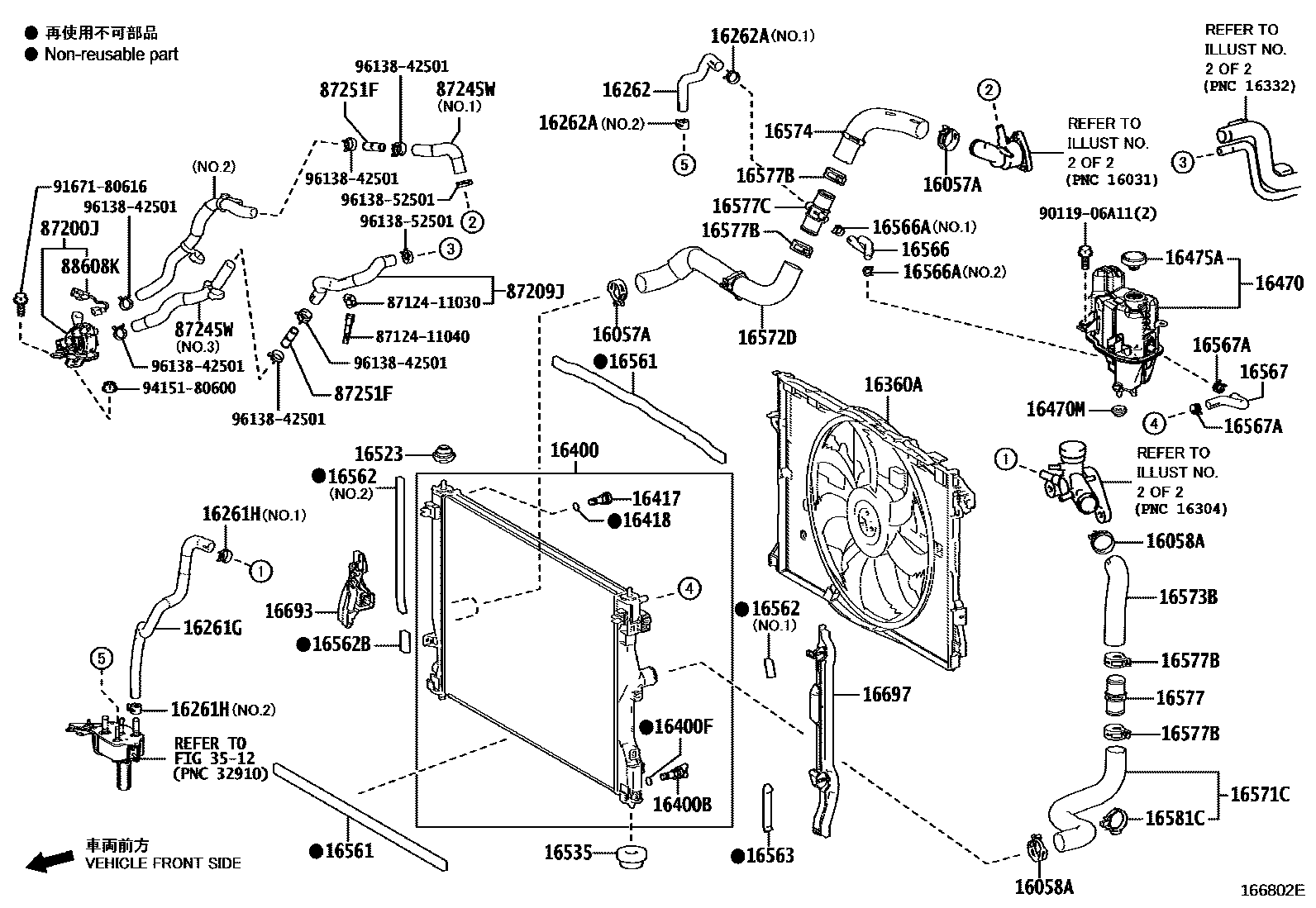

RADIATOR & WATER OUTLET
16057ACLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY)
16058ACLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY)
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
NO.2
NO.2:REFER ILLUST.
NO.1
NO.1:REFER ILLUST.
16360AFAN ASSY, W/MOTOR
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16417COCK
16418PACKING
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16475ACAP, RESERVE TANK
16523CUSHION, SUB-RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
NO.1
NO.2
16562BSEAL, RADIATOR TO SUPPORT, NO.4
16563SEAL, RADIATOR TO SUPPORT, NO.3
16566HOSE, RESERVE TANK OUTLET
16566ACLIP(FOR RESERVE TANK OUTLET)
NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16571CHOSE, RADIATOR, NO.1
16572DHOSE, RADIATOR, NO.2
16573BHOSE, RADIATOR, NO.3
NO.1
NO.2
16574HOSE, RADIATOR, NO.4
16577PIPE, RADIATOR, NO.7
16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
16577CPIPE, RADIATOR
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16693PLATE, RADIATOR SIDE AIR GUIDE, RR RH
16697PLATE, RADIATOR SIDE AIR GUIDE, RR LH
3512
87200JACCESSORY ASSY, HEATER
87245WHOSE, WATER
NO.1
NO.1:REFER ILLUST.
NO.3
NO.2
NO.2:REFER ILLUST.
87251FJOINT, WATER
88608KHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
8712411030CLAMP, HEATER
main87124-11030
8712411040CLAMP, HEATER
main87124-11040
9011906A11
main90119-06A11
9167180616
main91671-80616
9415180600
main94151-80600
9613842501
main96138-42501
9613852501
main96138-52501
49 parts on this diagram · 10 diagrams in section
